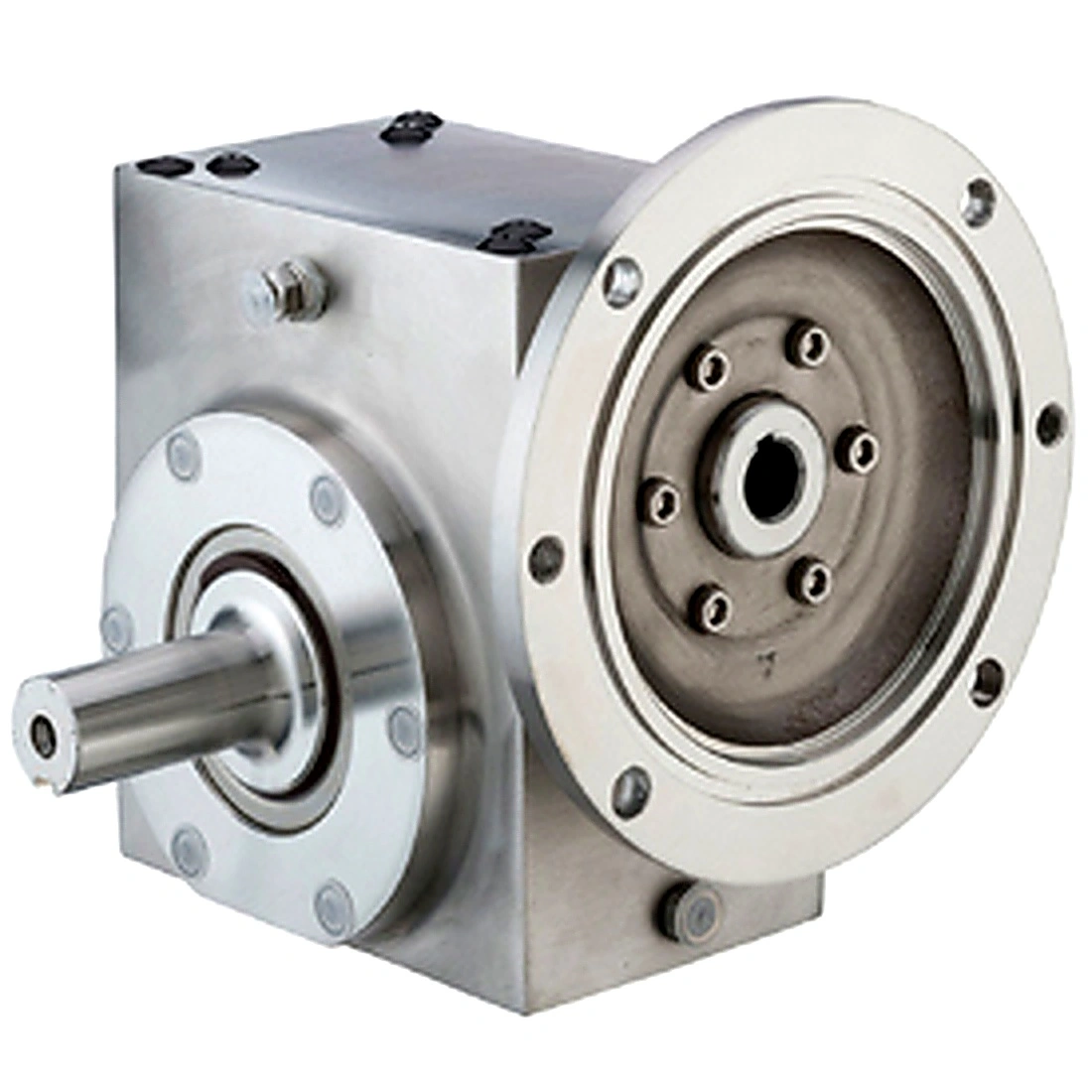

GROVE GEAR S243000400 Right Angle Gear Reducer, 117 RPM Output, 1318 lb-in Torque, Stainless Steel, H1 Left Output
Get it by Tuesday, Aug 25
€3,420.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| A | 4.06 |
| Ad | 4.97 |
| Application | Stainless Washdown |
| B | 6.12 |
| C | 6.94" |
| Center Distance | 2.38" |
| E | 2.375 |
| Frame Size | 56C |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| I | 3.69" |
| Input Dia. | 5/8" |
| Input Hp | 2.765 hp |
| Input Style | C-Face Quill |
| Input Type | C-Face Quilled |
| Max. Input Hp @ 1750 | 2 hp |
| N | 5.14 |
| No. Of Gear Reductions | Single |
| Nominal Motor Hp Rating To Hp @ 1750 Rpm | 2 hp |
| Output Config | H1 Left |
| Output Dia. | 1 1/8" |
| Output Hp | 2.439 hp |
| Output Shaft | Shaft |
| Output Shaft Dia | 1.125 |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 116.7 |
| Output Speed @ 1750 Rpm Input | 117 |
| Output Style | L |
| Product Line | Stainless Steel Worm Gear Reducers |
| Product Type | Right Angle |
| Reducer | Worm - Right Angle |
| Reduction | Single |
| Series Code | SS |
| Series Size | 824 |
| Shaft Center Distance | 2.38 |
| Speed | 116.7 RPM |
| T | 1.125 |
| Torque (lb-in)@1750rpm | 1318 |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 20.32 |
