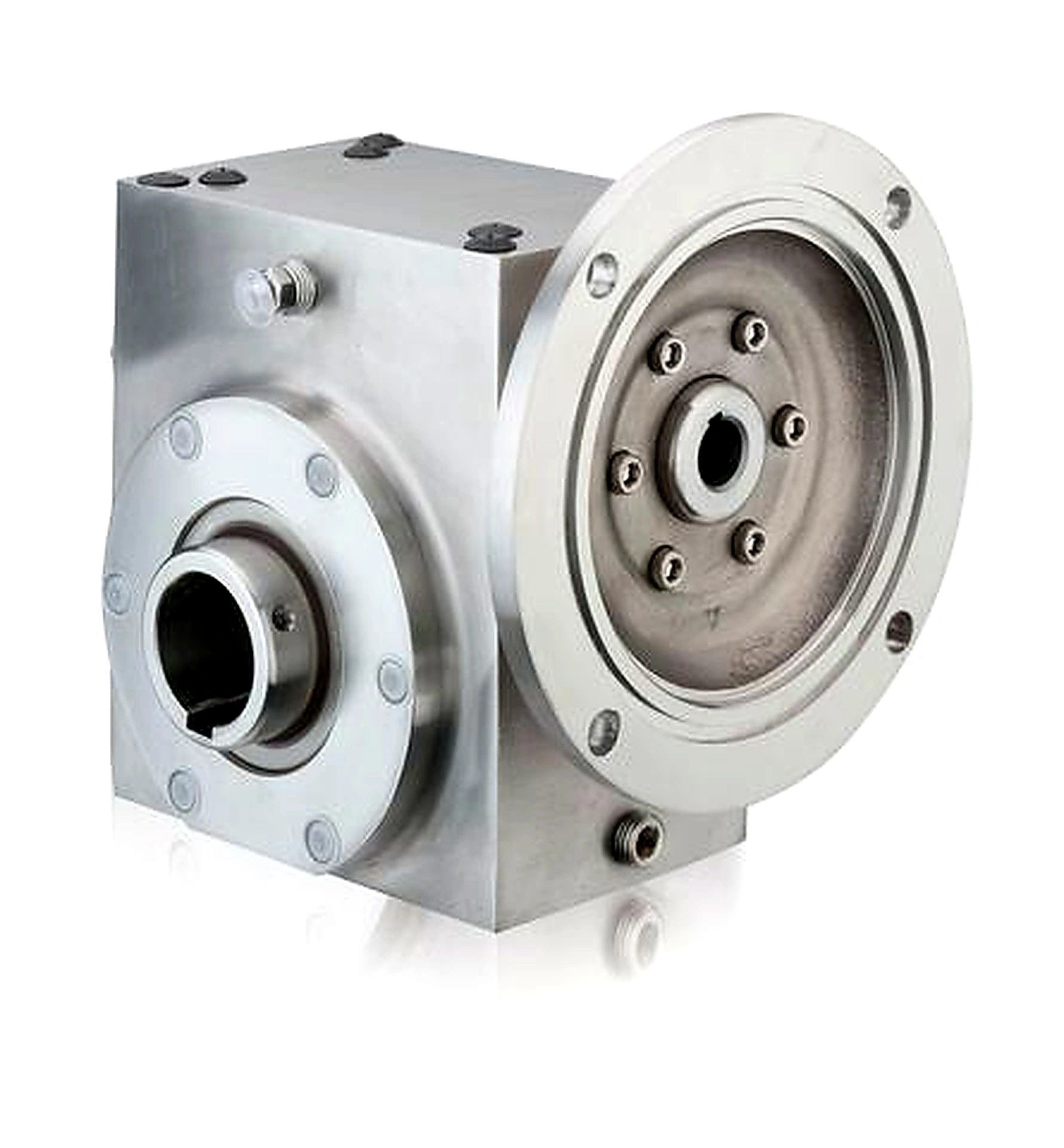

GROVE GEAR S133046410 SS-HMQ813-40-H1-56-10 Right Angle Gear Reducer, 40-to-1 Ratio, 58 RPM Output, 1/3 HP Input, H1 Hollow Bore
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Stainless Washdown |
| Max. Input Hp @ 1750 | 1/3 hp |
| Mount Footprint | 2 x 3.25 |
| Mount Style | HMQ |
| Nema Input Mounting | 56C |
| Output Config | H1 Hollow Bore |
| Output Shaft Dia. | 0.625 |
| Output Speed @ 1750 Rpm Input | 58 |
| Reduction Ratio | 40 |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Torque (lb-in)@1750rpm | 314 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 18.9 |
| Ship length (cm) | 22.83 |
| Ship width (cm) | 16.92 |
