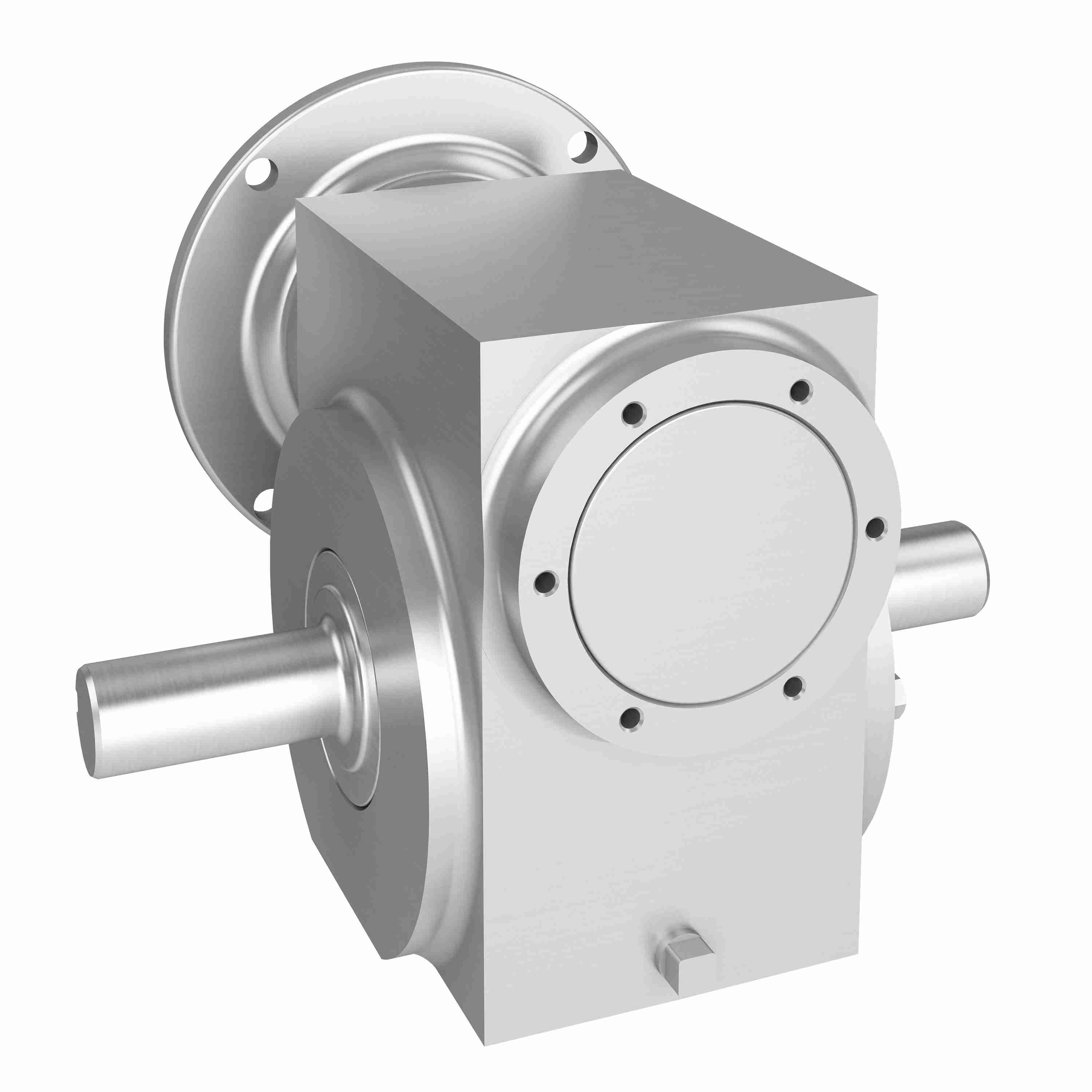

GROVE GEAR S133006700 SS-BMQ813-30-D-56 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 314 lb-in Torque, Stainless Steel
Get it by Tuesday, Sep 1
€2,346.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 2.82 |
| Application | Stainless Washdown |
| B | 3.8 |
| C | 4.66" |
| Center Distance | 1.33" |
| Centre Distance | 1.33" |
| D | 1.72 |
| E | 1.333 |
| Family Name | Stainless Steel Housing Material Worm Gear Reducers |
| Frame | 56 |
| Frame Size | 56C |
| Gear Ratio | 30:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Grade | Grade 316 |
| Gross Weight | 0 lbs. |
| I | 2.38" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Size | 5/8" |
| Input Style | C Face Quill |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Mounting Type | Base |
| No. Of Gear Reductions | Single |
| Output Dia. | 5/8" |
| Output Hollow Shaft Dia. | 5/8" |
| Output Hp | 0.29 hp |
| Output Keyway Size | 3/16" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Dia | 0.625 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Double |
| Output Shaft Type | Double Shaft |
| Output Style | D |
| Output Type | Shaft |
| Product Line | Stainless Steel Worm Gear Reducers |
| Product Series | SS Series |
| Reducer Type | Single |
| Reduction | Single |
| Series Code | SS |
| Speed | 58.3 RPM |
| T | 0.625 |
| Torque | 314 lbs.-in. |
| Torque (lb-in)@1750rpm | 314 |
| Type | Right Angle Single Reduction |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 27.94 |
Product Variants
| Model | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Material | Mounting Type | Input Bore Size | Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| R8375014.00 | - | - | - | - | - | - | - | - | €920.91 | RFQ
|
| R8675003.00 | - | - | - | - | - | - | - | - | €1,761.17 | RFQ
|
| K8773267.00 | - | - | - | - | - | - | - | - | €2,901.22 | RFQ
|
| R8375016.00 | - | - | - | - | - | - | - | - | €2,735.87 | RFQ
|
| R8375024.00 | - | - | - | - | - | - | - | - | €2,531.52 | RFQ
|
| R8475010.00 | - | - | - | - | - | - | - | - | €1,228.79 | RFQ
|
| F8372007.00 | - | - | - | - | - | - | - | - | €871.17 | RFQ
|
