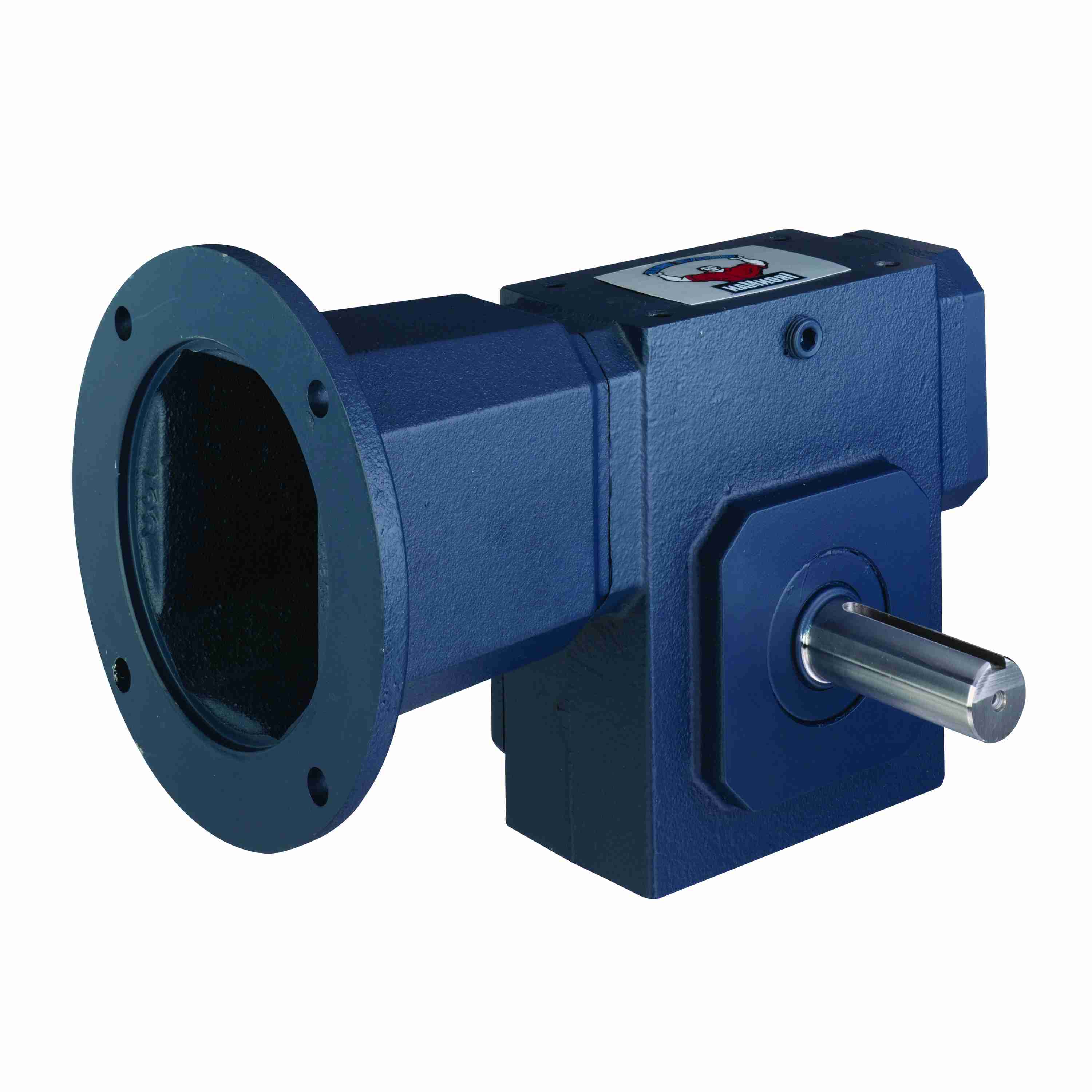

GROVE GEAR NH8300087.00 NH-BM830-10-R-140 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
Get it by Tuesday, Aug 25
€2,116.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BM-R |
| Center Distance | 3" |
| Frame | 140TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 6.151 hp |
| Input Hp @ 1750 Rpm | 5 9/20 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| Material | Cast Iron |
| Max. Input Hp | 6 151/1000 hp , 6.151 hp |
| Max. Ohl (output Shaft) | 1950 |
| Max. Thrust Load (output Shaft) | 2147 |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 1 1/4" |
| Output Hp | 5.655 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2147 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 175 RPM |
| Output Style | R |
| Output Torque | 1802 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2170 lbs. |
| Paint/coating | Blue |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| Tap Depth | 3/4" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Model | Input Dia. | Output Hp | Max. Input Hp | Output Speed | Output Torque | Input Bore Size | Input Hp @ 1750 Rpm | Input Keyway Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NH8300053.00 | 7/8" | 3.407 hp | 3.947 hp | 87 RPM | 2015 lbs.-in. | 5/8" | 3.233 hp | 3/16" x 1.63" | €2,116.10 | |
| NH8300121.00 | 7/8" | 8.573 hp | 9.093 hp | 350 RPM | 1131 lbs.-in. | 1 1/8" | 6.683 hp | 3/16" x 1.63" | €2,116.10 | |
| NH8300060.00 | 5/8" | 0.367 hp | 0.603 hp | - | - | 5/8" | 0.603 hp | 3/16" x 3/32" | €2,116.10 | |
| NH8300055.00 | 7/8" | 2 83/250 hp | 2.879 hp | 58 RPM | 2105 lbs.-in. | 5/8" | 2.382 hp | 3/16" x 1.63" | €2,116.10 | |
| NH8300122.00 | 7/8" | 6.421 hp | 6.879 hp | 233 RPM | 1519 lbs.-in. | 1 1/8" | 6.049 hp | 3/16" x 1.63" | €2,116.10 | |
| NH8300088.00 | 7/8" | 4.311 hp | 4.843 hp | 116 RPM | 2026 lbs.-in. | 7/8" | 4.207 hp | 3/16" x 1.63" | €2,116.10 | |
| NH8300057.00 | 7/8" | 1.383 hp | 1.915 hp | 35 RPM | 2026 lbs.-in. | 5/8" | 1.535 hp | 3/16" x 1.63" | €2,116.10 |
