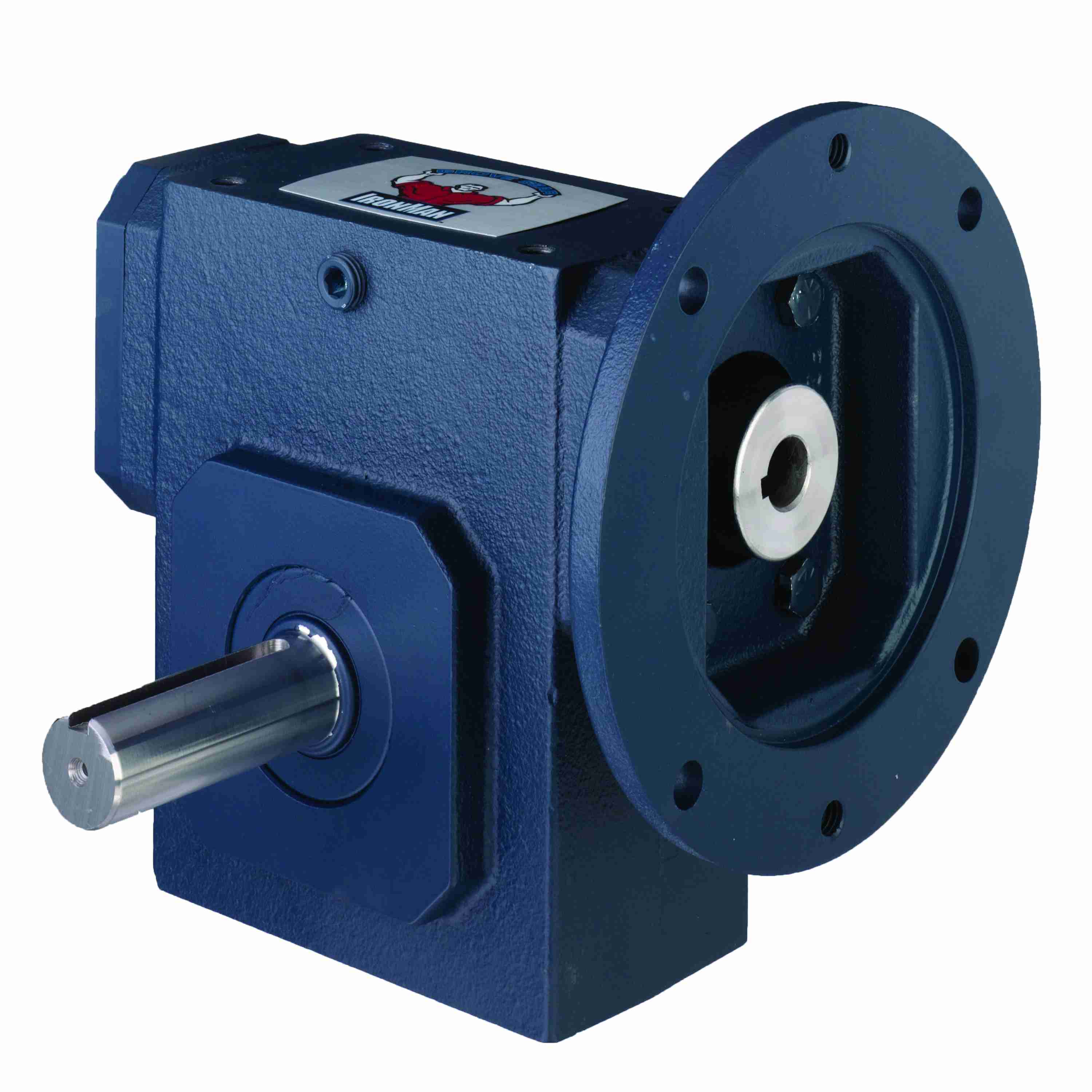

GROVE GEAR NH8262081.00 Quill Input Worm Gear Reducer
€2,054.59 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Center Distance | 2.6" |
| Color | Blue |
| Finish | Painted |
| Frame Size | 56 |
| Housing Material | Cast Iron |
| Input Flange | 56C |
| Input Hp | 0.602 hp |
| Input Speed | 1750 RPM |
| Input Style | Motorized, Quill Input |
| Output | Left |
| Output Hp | 0.387 hp |
| Output Orientation | DMQ |
| Output Shaft Assembly | L |
| Output Speed | 8.75 RPM |
| Output Torque | 2787 lbs.-in. |
| Overhung Load | 1750 lbs. |
| Ratio | 200 |
| Reducer Type | Worm Right Angle |
Product Variants
| Product | Model | max. input hp | output torque | mounting type | center distance | input style | output style | assembly | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NH8260018.00 | 2 487/1000 hp | 1869 lbs.-in. | Base | 2.63" | Solid Shaft | R | B-R | Solid Shaft | €1,543.68 | |
 |
NH8260039.00 | 4.492 hp | 1475 lbs.-in. | Base | 2.63" | Flexible Coupling Input | L | BM-L | Solid Shaft | €1,706.32 | |
|
NH8260030.00 | 2.487 hp | 1869 lbs.-in. | Base | 2.63" | Solid Shaft | D | B-D | Solid Shaft | €1,632.82 | |
 |
NH8260178.00 | 1 27/125 hp | 1805 lbs.-in. | Base | 2.63" | C Face Quill | D | BMQ-D | Solid Shaft | €1,797.05 | |
|
NH8260175.00 | 2.145 hp | - | Base | 2.63" | C Face Quill | - | - | - | €1,797.05 | |
|
NH8260206.00 | 4 239/250 hp | 1235 lbs.-in. | Base | 2.63" | C Face Quill | D | BMQ-D | Solid Shaft | €1,797.05 | |
 |
NH8260557.20 | 1 21/50 hp | 1843 lbs.-in. | Shaft Mount | 2.63" | C Face Quill | H1 | HMQ-H1 | Hollow Bore | €2,430.46 |
