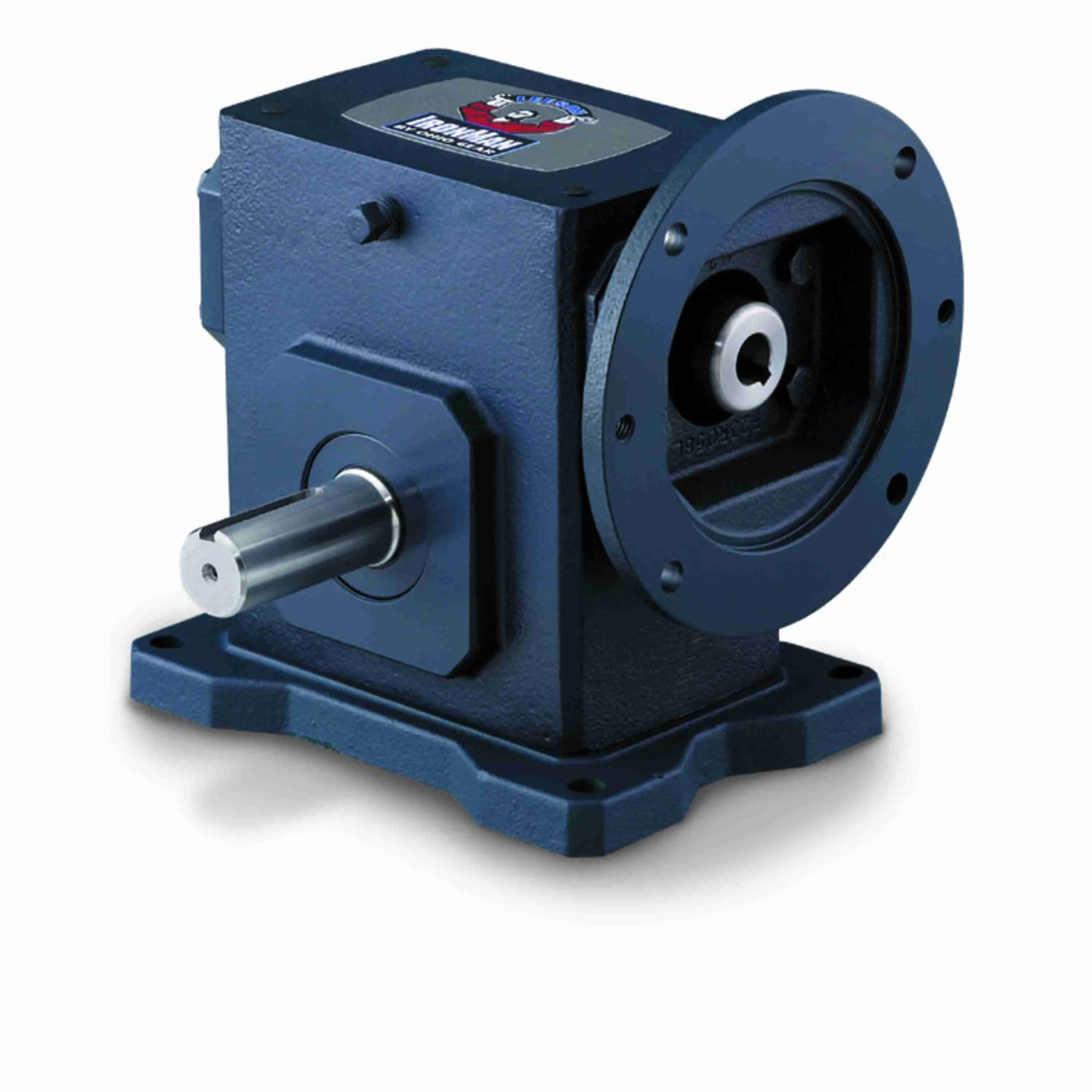

GROVE GEAR GRT13002073.00 Right Angle Gear Reducer, 5-to-1 Ratio, 350 RPM Output, 1.248 HP Input, Cast Iron
Get it by Monday, Aug 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 1 31/125 hp |
| Mount Footprint | 3.31 x 4.37 |
| Mount Style | TMQ |
| Output Shaft Dia. | 0.625 |
| Output Speed @ 1750 Rpm Input | 350 |
| Overhung Load Rating | 700 lbs. |
| Product Datasheet | grove-gear-g185263-00.pdf |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 2.25 |
| Torque (lb-in)@1750rpm | 209 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 22.83 |
| Ship width (cm) | 16.92 |
Documentation:
