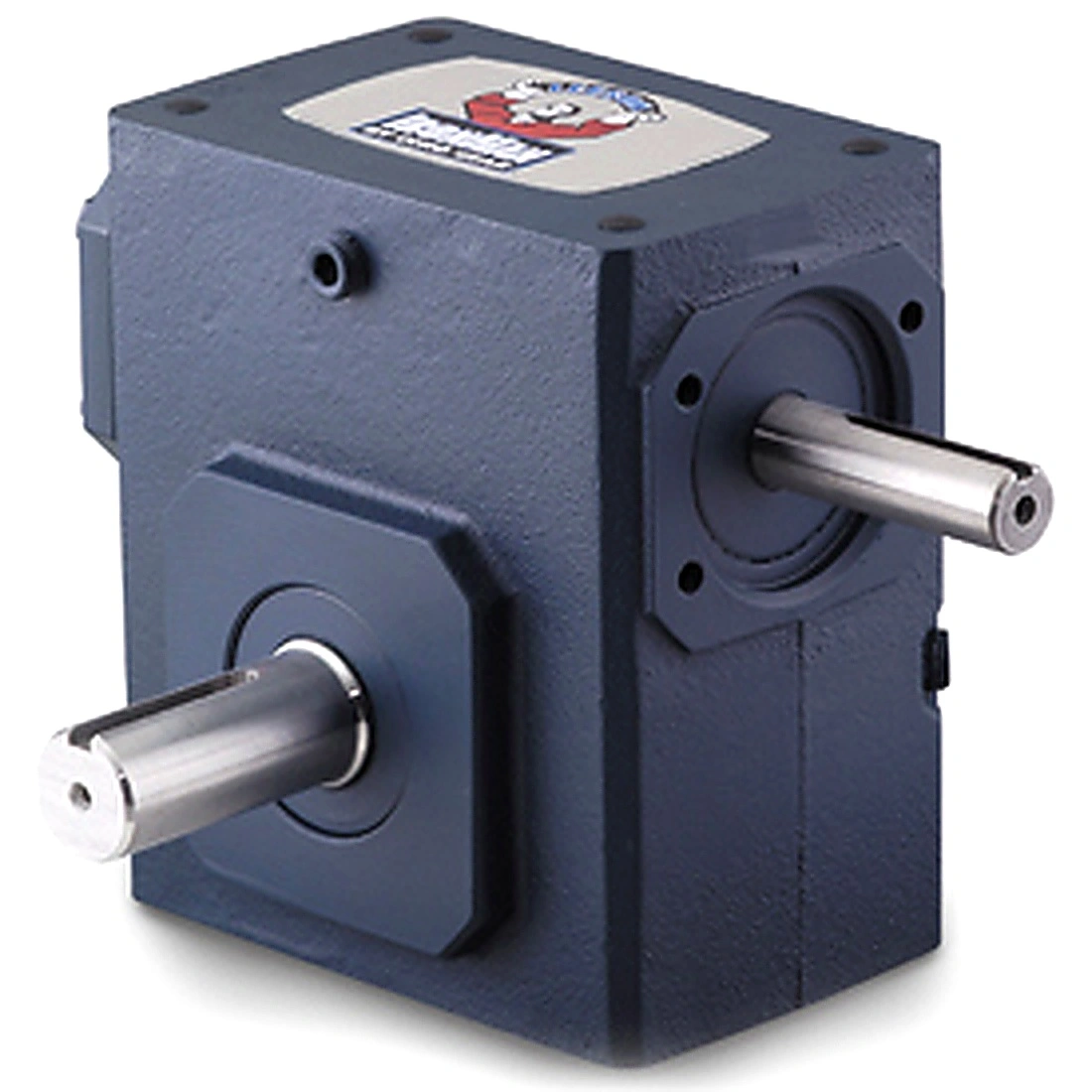

GROVE GEAR GRL8320098.00 Reducer, Solid Input Shaft Solid Output Shaft Left Worm | AY4NLG GRL-B832-7.5-L

GROVE GEAR GRL8320098.00 GRL-B832-7.5-L Right Angle Gear Reducer, 7.5 to 1 Ratio, 1.375 Inch Right Output Shaft, Solid Shaft Input, 233 RPM Output

Item: AY4NLGModel: GRL8320098.00Cross Ref: GRL-B832-7.5-L
Check Availability
In Stock

Get it by Tuesday, Aug 18

€1,192.87 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 5.75
Application General Purpose
Assembly B-L
B 8.5
C 9.38"
Center Distance 3 1/4"
D 3.5
F 4
G 2
Gear Type Worm
H-tap Size 7/16"-14
H-tap Type UNC
Housing Material Cast Iron
I 5.02"
Input Dia. 7/8"
Input Hp @ 1750 Rpm 8.863 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 7 1/2"
K 3 3/4"
L 6.76"
M 2.38
Max. Input Hp @ 1750 7 1/2 hp
Mount Footprint 4 x 7.5
Mount Style B
N 7.06
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
O 3.66"
Output Config H1 Right
Output Dia. 1 3/8"
Output Key 5/16 x 2.63
Output Key Size 5/16" x 2.63"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1.375
Output Shaft Direction Left
Output Shaft Thrust Rating 1869
Output Speed 233 , 233 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 2232 lbs.-in.
Output Torque Rating (in-lb) 2232 lbs.-in.
Overhung Load Rating 2275 lbs.
Product Line GRL Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5
Series GRL , GRL Series
Series Code GRL
Series Size 832
Service Factor 1
Shaft Center Distance 3.25
Shaft Center Height 3.5
Shaft Seal Material Viton
T 1.375
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 2232 lbs.-in.
U 7/8"

Shipping Info:

Ship weight (kg) 31.95
Ship height (cm)21.59
Ship length (cm)31.75
Ship width (cm)25.4

Product Variants

ProductModelOutput SpeedOutput HpOutput TorqueMax. Input HpOutput Dia.Input Dia.Paint/coatingGear TypePrice
GROVE GEAR GRL8320307.00 Worm Reducer, 30:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BAQ GRL8320307.0058 RPM2.986 hp3226 lbs.-in.3.619 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320047.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BBB GRL8320047.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320309.00 Worm Reducer, 50:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4NYL GRL8320309.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320025.00 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4ZJL GRL8320025.00175 RPM7.497 hp2700 lbs.-in.8 23/250 hp1 3/8"7/8"BlueWorm€2,558.79
GROVE GEAR GRL8320046.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX6XLZ GRL8320046.0043 RPM2.293 hp3303 lbs.-in.2.926 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320086.00 Reducer, 3-Piece Coupled Input Output Shaft Right Worm Gear | AX6XMA GRL8320086.0043 RPM-3303 lbs.-in.-1 3/8"7/8"-Worm€1,386.53
GROVE GEAR GRL8320191.00 Quill Input Worm Gear Reducer, 3.25 Inch Distance, 3315 Inch/lbs Torque, Cast Iron | AX8AQC GRL-BMQ832-50-D-180 GRL8320191.0035 RPM-3315 lbs.-in.-1 3/8"--Worm€1,440.79
