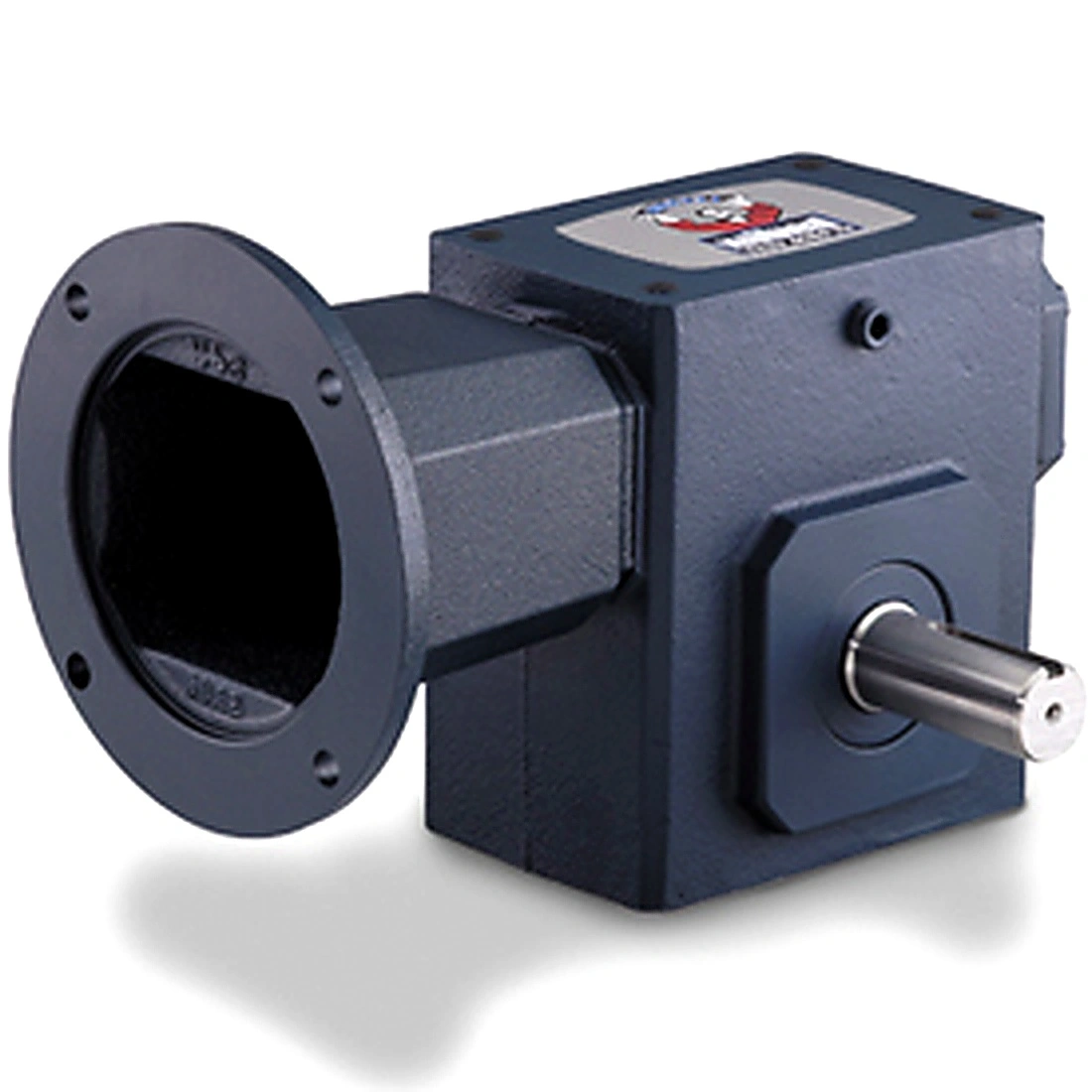

GROVE GEAR GRL8320067.00 GRL-BM832-20-D-140 Reducer, 3-Piece Coupled, Input Output Shaft, Double Worm
Get it by Thursday, Dec 18
€1,440.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BM-D |
| Center Distance | 3 1/4" |
| Frame | 140 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 5 9/50 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 3/8" |
| Output Key Size | 5/16" x 2.63" |
| Output Rpm | 87 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Direction | Double |
| Output Shaft Thrust Rating | 2574 |
| Output Torque | 3267 lbs.-in. |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Series | GRL Series |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
| Weight | 76 lbs. |
Shipping Info:
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Gear Type | Output Shaft Type | Overhung Load | Max. Input Hp | Gear Ratio | Output Torque | Frame | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRL8320307.00 | Worm | Right Handed Shaft | 2275 lbs. | 3.619 hp | - | 3226 lbs.-in. | 210TC | Base | €2,558.79 | |
| GRL8320047.00 | Worm | Double Shaft | 2170 lbs. | 2.462 hp | - | 3315 lbs.-in. | 56C | Base | €2,655.47 | |
| GRL8320283.00 | Worm | - | - | - | - | 2000 lbs.-in. | 180 | - | €1,386.53 | |
| GRL8320309.00 | Worm | Right Handed Shaft | 2170 lbs. | 2.462 hp | - | 3315 lbs.-in. | 210TC | Base | €2,558.79 | |
| GRL8320298.00 | Worm | - | - | - | - | 3274 lbs.-in. | 210 | - | €1,386.53 | |
| GRL8320025.00 | Worm | Left Handed Shaft | 2170 lbs. | 8 23/250 hp | - | 2700 lbs.-in. | 56C | Base | €2,558.79 | |
| GRL8320046.00 | Worm | Double Shaft | 2275 lbs. | 2.926 hp | - | 3303 lbs.-in. | 56C | Base | €2,655.47 |
