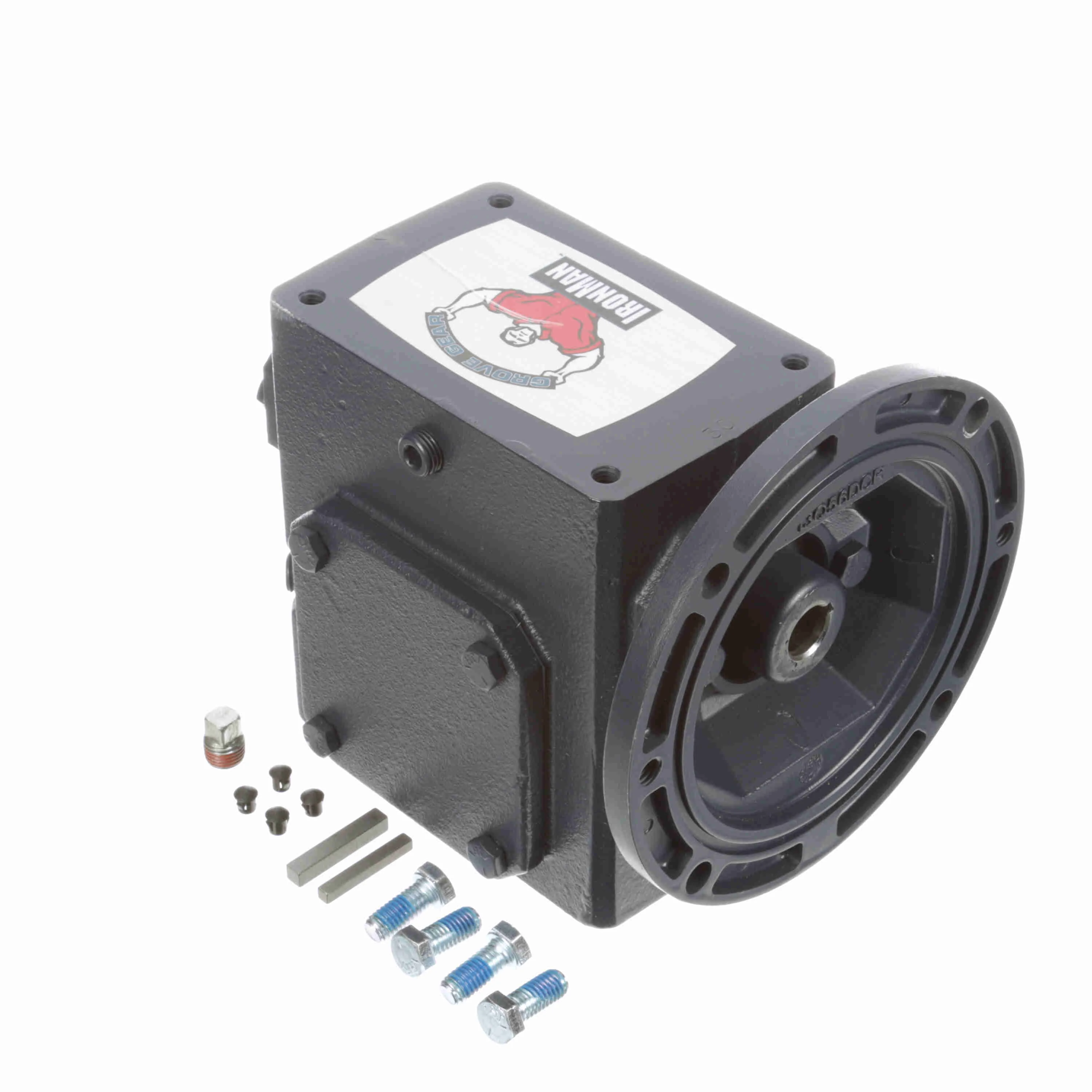

GROVE GEAR GRL8210556.16 Output Worm Gear Reducer, 2.06 Inch Distance, 971 Inch/lbs Torque, Cast Iron | AY7ANX GRL-HMQ821-40-H1-140-16

GROVE GEAR GRL8210556.16 GRL-HMQ821-40-H1-140-16 Right Angle Gear Reducer, 40 to 1 Ratio, 1 Inch Hollow Bore, 143-5TC NEMA Input, Cast Iron

Item: AY7ANXModel: GRL8210556.16Cross Ref: GRL-HMQ821-40-H1-140-16
Check Availability
In Stock

Get it by Monday, Aug 17

€973.94 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 4.99
Ae1 0.61
Ae2 0.4
Ag 6
Aj 5.88
Ak 4.5
Application General Purpose
Assembly HMQ-H1
B 5.8
Bd 6.5
Be 0.38"
Bf 0.41
Bore Code 16
C 6.38"
Center Distance 2.06"
D 2.28
F 2.88
Frame 140
G 1.44
Gear Type Worm
Hollow Bore Dimensions 1"
Housing Cast Iron
Housing Material Cast Iron
I 3.61"
Input Bore (c Face) 0.875 , 7/8"
Input Hp @ 1750 Rpm 0.916 hp
Input Keyway (c Face) 3/16 x 3/32
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 , 1750 RPM
Input Style C Face Quill
J 5"
Lq 4.46"
Max. Input Hp @ 1750 23/25 hp
Motor Frame Size 140
Mount Footprint 2.88 x 5
Mount Style HMQ
Nema Input Mounting 143-5TC
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 1"
Output Key 1/4 x 2.5
Output Key Size 1/4" x 2.5"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 1144
Output Speed 43 , 43 RPM
Output Speed @ 1750 Rpm Input 43
Output Torque 971 lbs.-in.
Output Torque Rating (in-lb) 971 lbs.-in.
Overhung Load Rating 1000 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 401
Reducer Worm - Right Angle
Reduction Ratio 40:1
Rq 4.06"
Series GR Series , GRL
Series Code GRL
Series Size 821
Service Factor 1
Shaft Center Distance 2.06
Shaft Center Height 2.28
Shaft Seal Material Viton
T 1
Torque (lb-in)@1750rpm 971 lbs.-in.
V 1.94"

Shipping Info:

Ship weight (kg) 13.5
Ship height (cm)15.24
Ship length (cm)25.4
Ship width (cm)17.78

Product Variants

ProductModelOutput SpeedOutput Dia.Input Dia.Output TorqueOutput HpMax. Input HpOutputPaint/coatingPrice
GROVE GEAR GRL8210102.00 Reducer, 3-Piece Coupled, Input Output Shaft, Double Worm | AX3ZAJ GRL-BM821-25-D-140 GRL8210102.0070 RPM1"5/8"985 lbs.-in.----€745.65
GROVE GEAR GRL8210057.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX3ZNJ GRL8210057.0035 RPM1"5/8"970 lbs.-in.0.539 hp0.769 hpRightBlue€1,280.11
GROVE GEAR GRL8210142.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4FLG GRL8210142.0029.2 RPM1"5/8"--337/500 hp-Blue€1,323.17
GROVE GEAR GRL8210114.00 Worm Reducer, 25:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4GMY GRL8210114.0070 RPM-5/8"--1 333/1000 hpLeftBlue€1,280.11
GROVE GEAR GRL8210118.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4HPA GRL8210118.0029.2 RPM-5/8"--337/500 hpLeftBlue€1,050.98
GROVE GEAR GRL8213507.20 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4JCR GRL8213507.20-1 1/4"5/8"-0.896 hp1.129 hpHollowWhite Epoxy€1,933.47
GROVE GEAR GRL8210121.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4JZZ GRL8210121.00350 RPM1"5/8"-3 41/100 hp3 653/1000 hpRightBlue€1,262.34
