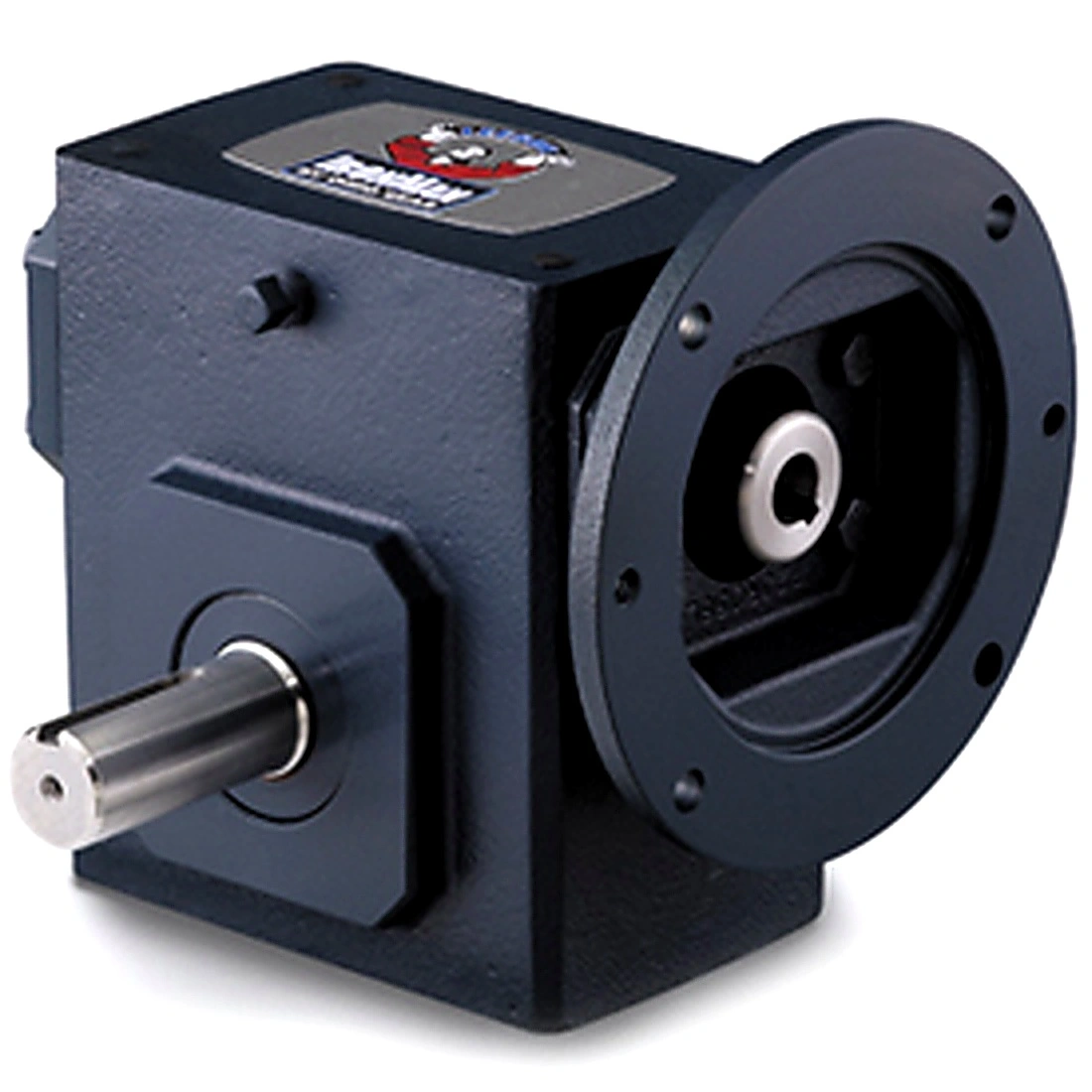

GROVE GEAR GRG8320128.00 GRG-BMQ832-60-L-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 3274 lb-in Torque, H1 Left Output
Get it by Tuesday, Aug 25
€2,100.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame | 56 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.625 |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Quill Dia. | 5/8" |
| Input Style | C-Face Quill |
| Max. Hp | 2 11/100 hp |
| Max. Input Hp @ 1750 | 1 1/2 hp |
| Max. Ohl (output Shaft) | 2275 |
| Max. Overhung Load | 2275 lbs. |
| Max. Thrust Load (output Shaft) | 2574 |
| Motor Hp | 2 hp |
| No. Of Gear Reductions | Single |
| Nominal Motor Hp Rating To Hp @ 1750 Rpm | 2 hp |
| Output | Left |
| Output Config | H1 Left |
| Output Dia. | 1 1/2" |
| Output Direction | L |
| Output Hp | 1.515 hp |
| Output Shaft Dia | 1.5 |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Paint/coating | Blue |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Product Type | Worm Speed Reducer |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 832 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Center Distance | 3.25 |
| Shaft Seal Material | Viton |
| Size | 56C |
| Speed | 29 RPM |
| Torque (lb-in)@1750rpm | 3274 |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 25.4 |
