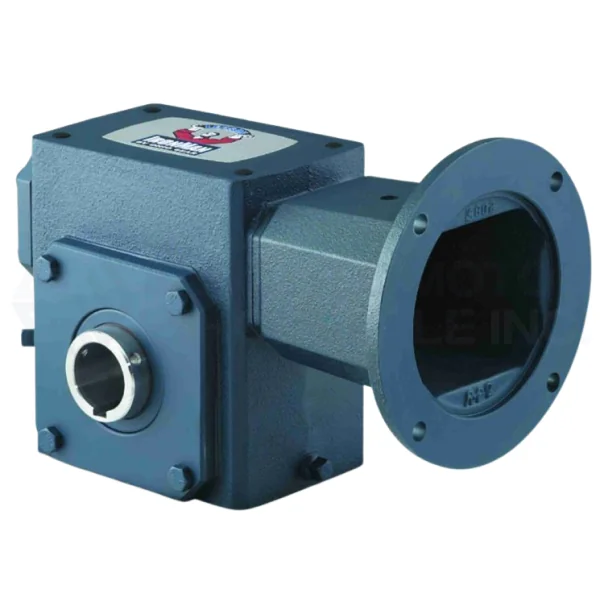

GROVE GEAR GRG8210568.23 Right Angle Gear Reducer, 40 to 1 Ratio, 1-7/16 Inch Hollow Bore, 48C NEMA Input, Cast Iron
Get it by Tuesday, Aug 25
€973.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 0.916 hp |
| Mount Footprint | 3 x 4.75 |
| Mount Style | Hm |
| Nema Input Mounting | 48C |
| Output Speed @ 1750 Rpm Input | 43 |
| Overhung Load Rating | 1315 lbs. |
| Series Size | 821 |
| Shaft Center Distance | 2.06 |
| Shaft Center Height | 2.28 |
| Torque (lb-in)@1750rpm | 971 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 17.78 |
