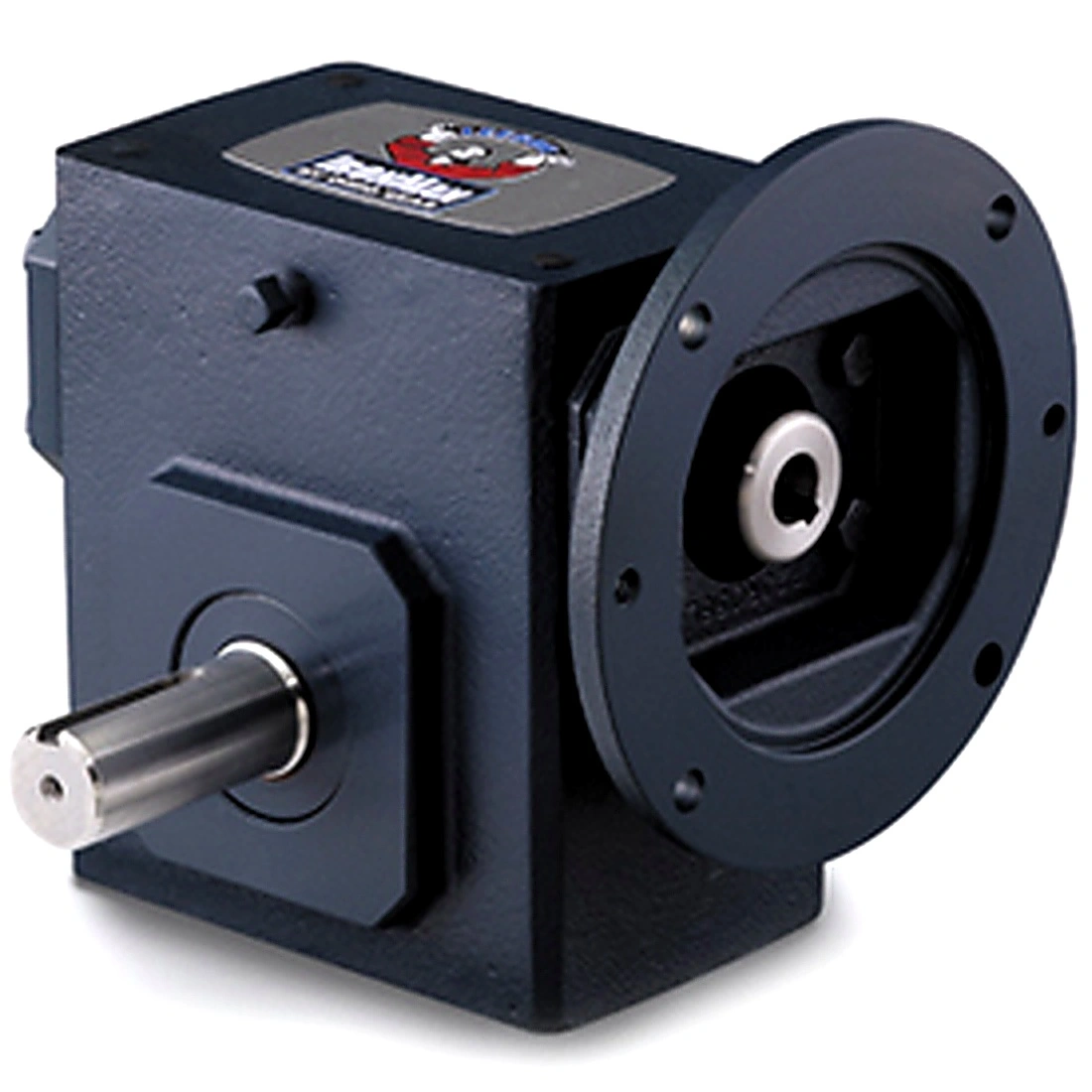

GROVE GEAR GR8600290.00 GR-BMQ860-7.5-L-250 Right Angle Gear Reducer, 7.5 to 1 Reduction Ratio, 233 RPM Output, 7704 lb-in Torque, H1 Left Output
Get it by Tuesday, Aug 25
€9,884.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Center Distance | 6" |
| Frame | 250 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 1.625 |
| Input Dia. | 1 5/8" |
| Input Hp | 29 49/50 hp |
| Input Hp @ 1750 Rpm | 29 49/50 hp |
| Input Style | C-Face Quill |
| Input Type | C-Face Quilled |
| Max. Input Hp @ 1750 | 25 hp |
| Max. Ohl (output Shaft) | 3723 |
| Max. Thrust Load (output Shaft) | 3990 |
| No. Of Gear Reductions | Single |
| Output | Left |
| Output Config | H1 Left |
| Output Dia. | 2 1/2" |
| Output Hp | 28 13/25 hp |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 233 |
| Output Speed @ 1750 Rpm Input | 233 |
| Output Style | L |
| Output Torque | 20662 |
| Output Type | Solid Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Right Angle |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 860 |
| Shaft Seal Material | Viton |
| Speed | 233 RPM |
| Torque (lb-in)@1750rpm | 7704 |
Shipping Info:
| Ship weight (kg) | 148.95 |
| Ship height (cm) | 42.55 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 42.55 |
