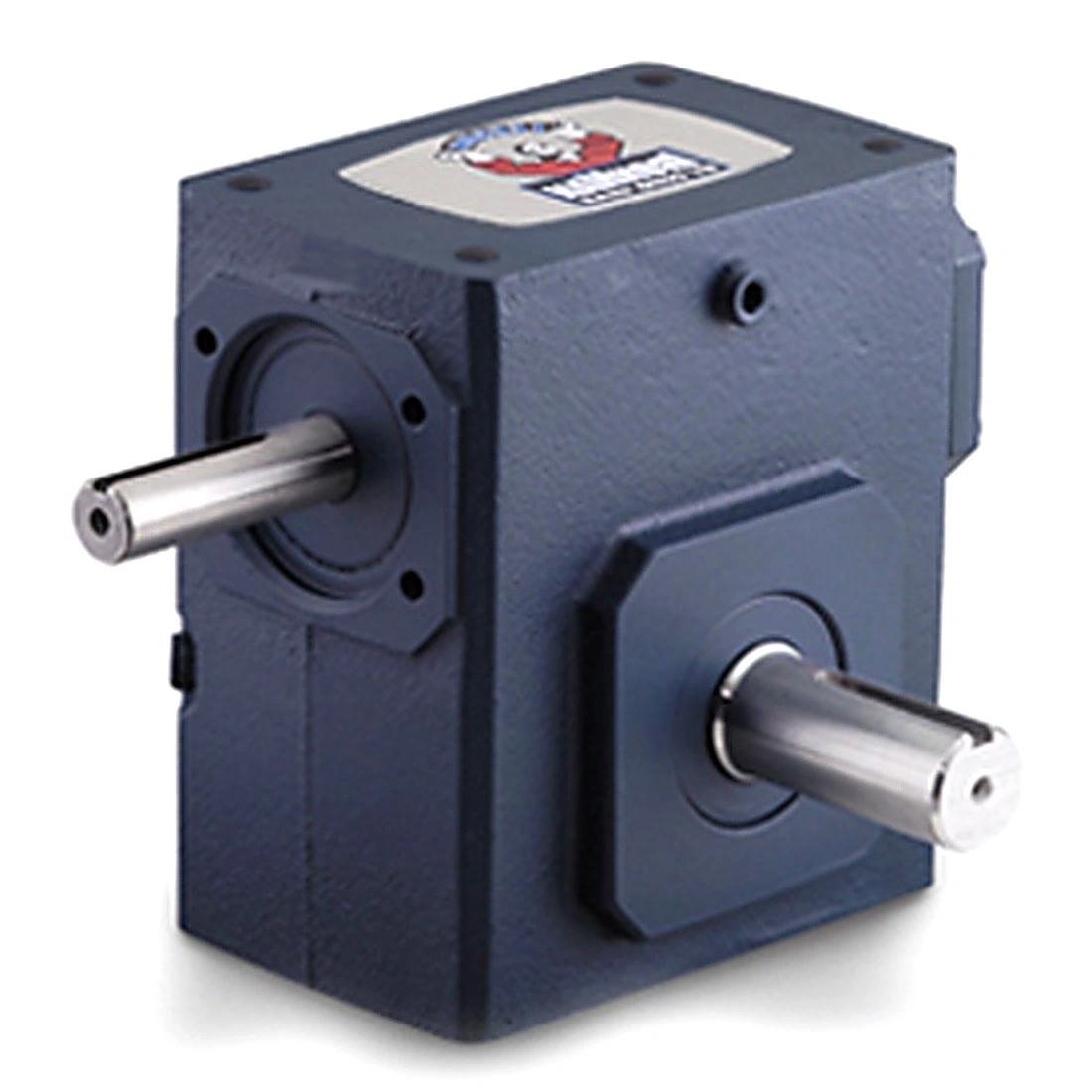

GROVE GEAR GR8600018.00 GR-B860-30-D Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 10249 lb-in Torque, Dual Shaft Output
Get it by Tuesday, Aug 25
€9,168.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Assembly | B-D |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 1 1/2" |
| Input Hp | 11.177 hp |
| Input Hp @ 1750 Rpm | 11.177 hp |
| Max. Input Hp @ 1750 | 10 hp |
| Max. Ohl (output Shaft) | 3723 |
| Max. Thrust Load (output Shaft) | 3990 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output Config | Dual Shaft |
| Output Hp | 9.486 hp |
| Output Shaft Direction | Double |
| Output Speed | 58 |
| Output Speed @ 1750 Rpm Input | 58 |
| Output Style | D |
| Output Torque | 12911 |
| Output Type | Solid Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Worm Speed Reducer |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 860 |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| Torque (lb-in)@1750rpm | 10249 |
Shipping Info:
| Ship weight (kg) | 144.45 |
| Ship height (cm) | 42.55 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 42.55 |
