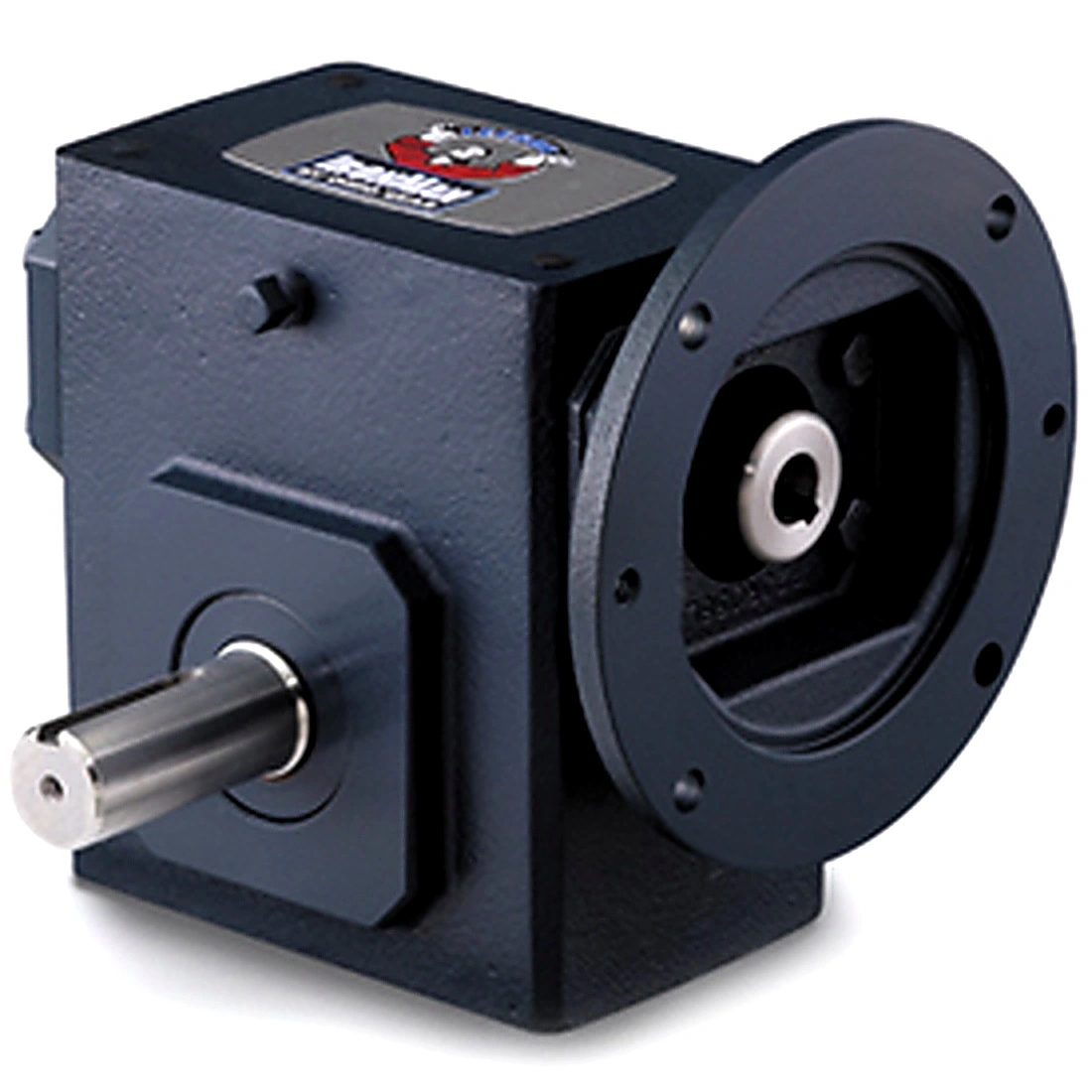

GROVE GEAR GR8520260.00 Quill Input Worm Gear Reducer, 5.25 Inch Distance, 9419 Inch/lbs Torque, Cast Iron | AY7WEK GR-BMQ852-40-L-140

GROVE GEAR GR8520260.00 GR-BMQ852-40-L-140 Right Angle Gear Reducer, 40 to 1 Ratio, 2 Inch Left Output Shaft, 143-5TC NEMA Input, 43 RPM Output

Item: AY7WEKModel: GR8520260.00Cross Ref: GR-BMQ852-40-L-140
Check Availability
In Stock

Get it by Tuesday, Sep 1

€3,366.22 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 7.19
Aj 5.88
Ak 4.5
Application General Purpose
Assembly BMQ-L
B 13
Bd 6.5
Be 0.38"
Bf 0.41
C 14"
Center Distance 5 1/4"
D 5.12
F 5.81
Frame 140
G 2.91
Gear Type Worm
H-tap Size 5/8"-11
H-tap Type UNC
Housing Material Cast Iron
I 7 1/2"
Input Bore (c Face) 0.875 , 7/8"
Input Hp @ 1750 Rpm 8 21/200 hp
Input Keyway (c Face) 3/16 x 3/32
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 , 1750 RPM
Input Style C Face Quill
J 11"
K 5 1/2"
Lq 7.85"
Max. Input Hp @ 1750 7 1/2 hp
Motor Frame Size 140
Mount Footprint 5.81" x 11"
Mount Style BMQ
N 9.06
Nema Input Mounting 143-5TC
No. Of Gear Reductions 1 , Single
O 4.78"
Output Config H1 Left
Output Dia. 2"
Output Key 1/2 x 3.5
Output Key Size 1/2" x 3.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 2
Output Shaft Direction Left
Output Shaft Thrust Rating 3412
Output Speed 43 , 43 RPM
Output Speed @ 1750 Rpm Input 43
Output Torque 9419 lbs.-in.
Output Torque Rating (in-lb) 9419 lbs.-in.
Overhung Load Rating 3560 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 401
Reducer Worm - Right Angle
Reduction Ratio 40
Rq 7.35"
Series GR , GR Series
Series Code Gr
Series Size 852
Service Factor 1
Shaft Center Distance 5.25
Shaft Center Height 5.12
Shaft Seal Material Viton
T 2
Tap Depth 1 1/4"
Tap Size 5/8"-11
Thread Type Coarse
Torque (lb-in)@1750rpm 9419 lbs.-in.

Shipping Info:

Ship weight (kg) 111.15
Ship height (cm)35.56
Ship length (cm)60.96
Ship width (cm)45.72

Documentation:

Datasheet

Product Variants

ProductModelOutput Dia.Output SpeedInput Dia.Output HpOutput TorqueMax. Input HpInput Hp @ 1750 RpmPaint/coatingPrice
GROVE GEAR GR8520262.00 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 2 Inch O.D, Cast Iron | AX6ZCA GR8520262.00-29.2 RPM-4.263 hp92125 102/125 hp5.816 hpBlue€6,003.20
GROVE GEAR GR8522534.39 Output Worm Gear Reducer | AX7LFA GR8522534.39-------Blue€4,247.44
RFQ
GROVE GEAR GR8524133.00 Quill Input Worm Gear Reducer | AX7LFB GR8524133.00-14 RPM-4.181 hp19432 lbs.-in.--Blue€5,801.17
RFQ
GROVE GEAR GR8524215.00 Quill Input Worm Gear Reducer | AX7MAW GR8524215.00-------Blue€5,801.17
RFQ
GROVE GEAR GR8520600.39 Output Worm Gear Reducer, 5.25 Inch Distance, 8941 Inch/lbs Torque, Cast Iron | AX7WLM GR-HMQ852-15-H1-180-39 GR8520600.392.438"116 RPM----18 11/100 hp-€4,320.50
GROVE GEAR GR8524213.00 Quill Input Worm Gear Reducer | AX7YZH GR8524213.00-14 RPM-4.181 hp19432 lbs.-in.--Blue€5,801.17
RFQ
GROVE GEAR GR8520511.47 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX8CYV GR-H852-80-H1-47 GR8520511.472 15/16"21 RPM1 1/4"---2.906 hp-€3,857.40
