GROVE GEAR GR8420505.23 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY8QLH GR-H842-20-H1-23

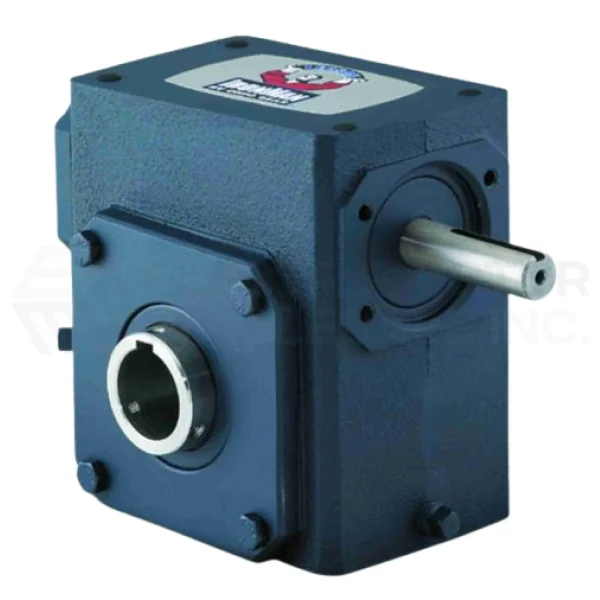

GROVE GEAR GR8420505.23 GR-H842-20-H1-23 Right Angle Gear Reducer, 20 to 1 Ratio, 1-7/16 Inch Hollow Bore, Solid Shaft Input, Cast Iron

Item: AY8QLHModel: GR8420505.23Cross Ref: GR-H842-20-H1-23
Check Availability
In Stock

Get it by Thursday, Jul 16

€2,552.26 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 7.53
Ae1 0.63
Ae2 0.34
Ag 8.5
Application General Purpose
Assembly H-H1
B 10.25
Bore Code 23
C 11.38"
Center Distance 4 1/4"
D 4.44
F 5
G 2.5
Gear Type Worm
Hollow Bore Dimensions 1 7/16"
Housing Cast Iron
Housing Material Cast Iron
I 6.1"
Input Dia. 1 1/4"
Input Hp @ 1750 Rpm 9.462 hp
Input Keyway 1/4" x 2.5"
Input Keyway Size 1/4" x 2.5"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 8 1/2"
L 9.57"
M 3.47
Max. Input Hp @ 1750 7 1/2 hp
Mount Footprint 5" x 8.5"
Mount Style H
Mounting Style Shaft Mount
Mounting Type Shaft Mount
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 1 7/16"
Output Key 3/8 x 3
Output Key Size 3/8" x 3"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2533
Output Speed 87 , 87 RPM
Output Speed @ 1750 Rpm Input 87
Output Torque 6092 lbs.-in.
Output Torque Rating (in-lb) 6092 lbs.-in.
Overhung Load Rating 2800 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 201
Reducer Worm - Right Angle
Reduction Ratio 20:1
Series GR , GR Series
Series Code Gr
Series Size 842
Service Factor 1
Shaft Center Distance 4.25
Shaft Center Height 4.44
Shaft Seal Material Viton
T 1.4375
Torque (lb-in)@1750rpm 6092 lbs.-in.
U 1 1/4"
V 2.756"

Shipping Info:

Ship weight (kg) 62.55
Ship height (cm)26.67
Ship length (cm)40.64
Ship width (cm)30.48

Product Variants

ProductModeloutput torquegear typemax. input hpgear ratiocenter distanceoutput shaftoutput shaft assembly codeno. of gear reductionsPrice
GROVE GEAR GR8420315.00 Worm Reducer, 10:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX4TFG GR8420315.005042 lbs.-in.Worm14 93/100 hp-4 1/4"Solid ShaftD1€4,104.01
GROVE GEAR GR8420541.23 Worm Reducer, 20:1 Ratio, 1.25 Inch I.D, 1.438 Inch O.D, Cast Iron | AX4VRR GR8420541.236092 lbs.-in.Worm9.462 hp-4 1/4"Hollow BoreH11€5,089.13
GROVE GEAR GR8424034.00 Quill Input Worm Gear Reducer | AX6RHY GR8424034.00----4.2"---€4,193.11
RFQ
GROVE GEAR GR8425888.00 Quill Input Worm Gear Reducer | AX6XKL GR8425888.00----4.2"---€2,412.37
RFQ
GROVE GEAR GR8420605.23 Worm Reducer, 50:1 Ratio, 1.125 Inch I.D, 1.438 Inch O.D, Cast Iron | AX6ZVX GR8420605.236170 lbs.-in.Worm4.389 hp-4 1/4"Hollow BoreH11€5,089.13
GROVE GEAR GR8420181.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX7MAR GR-BM842-5-L-250 GR8420181.003209 lbs.-in.Worm--4 1/4"Solid ShaftL1€2,216.39
GROVE GEAR GR8424151.00 Quill Input Worm Gear Reducer | AX7QFJ GR8424151.00----4.2"---€4,193.11
RFQ
