GROVE GEAR GR8420503.35 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY7DNJ GR-H842-10-H1-35

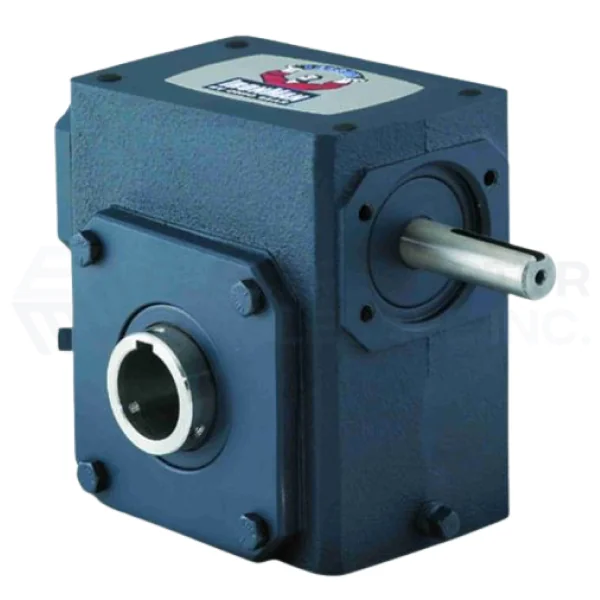

GROVE GEAR GR8420503.35 GR-H842-10-H1-35 Right Angle Gear Reducer, 10 to 1 Ratio, 2-3/16 Inch Hollow Bore, Solid Shaft Input, Cast Iron

Item: AY7DNJModel: GR8420503.35Cross Ref: GR-H842-10-H1-35
Check Availability
In Stock

Get it by Monday, Aug 17

€2,552.26 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 7.53
Ae1 0.63
Ae2 0.34
Ag 8.5
Application General Purpose
Assembly H-H1
B 10.25
Bore Code 35
C 11.38"
Center Distance 4 1/4"
D 4.44
F 5
G 2.5
Gear Type Worm
Hollow Bore Dimensions 2 3/16"
Housing Cast Iron
Housing Material Cast Iron
I 6.1"
Input Dia. 1 1/4"
Input Hp @ 1750 Rpm 14 93/100 hp
Input Keyway 1/4" x 2.5"
Input Keyway Size 1/4" x 2.5"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 8 1/2"
L 9.57"
M 3.47
Max. Input Hp @ 1750 10 hp
Mount Footprint 5" x 8.5"
Mount Style H
Mounting Style Shaft Mount
Mounting Type Shaft Mount
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 2 3/16"
Output Key 1/2 x 3.38
Output Key Size 1/2" x 3.38"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 1788
Output Speed 175 , 175 RPM
Output Speed @ 1750 Rpm Input 175
Output Torque 5042 lbs.-in.
Output Torque Rating (in-lb) 5042 lbs.-in.
Overhung Load Rating 2800 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Worm Speed Reducer
Ratio 101
Reducer Worm - Right Angle
Reduction Ratio 10:1
Series GR , GR Series
Series Code Gr
Series Size 842
Service Factor 1
Shaft Center Distance 4.25
Shaft Center Height 4.44
Shaft Seal Material Viton
T 2.188
Torque (lb-in)@1750rpm 5042 lbs.-in.
U 1 1/4"
V 2.756"

Shipping Info:

Ship weight (kg) 62.55
Ship height (cm)26.67
Ship length (cm)40.64
Ship width (cm)30.48

Product Variants

ProductModelOutput TorqueOutput SpeedOutput Dia.Input Dia.Output HpMax. Input HpGear TypeOutput ShaftPrice
GROVE GEAR GR8420315.00 Worm Reducer, 10:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX4TFG GR8420315.005042 lbs.-in.175 RPM1 7/8"1 1/8"14 hp14 93/100 hpWormSolid Shaft€4,104.01
GROVE GEAR GR8420541.23 Worm Reducer, 20:1 Ratio, 1.25 Inch I.D, 1.438 Inch O.D, Cast Iron | AX4VRR GR8420541.236092 lbs.-in.87 RPM1.438"1 1/4"8.458 hp9.462 hpWormHollow Bore€5,089.13
GROVE GEAR GR8424034.00 Quill Input Worm Gear Reducer | AX6RHY GR8424034.00--------€4,193.11
