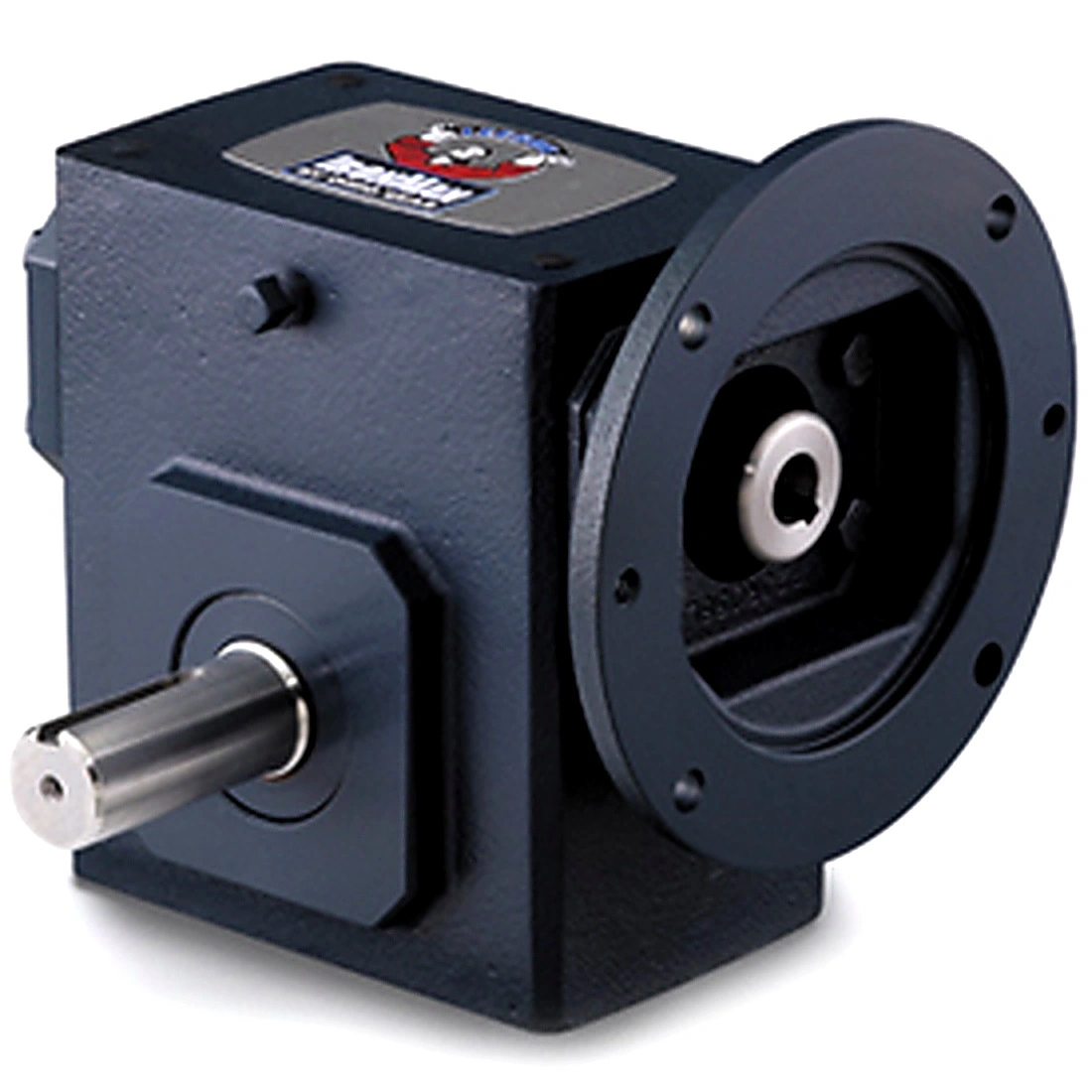

GROVE GEAR GR8420362.00 Quill Input Worm Gear Reducer | AY6PKV

GROVE GEAR GR8420362.00 GR-BMQ842-7.5-L-250 Right Angle Gear Reducer, 7.5 to 1 Ratio, 1.875 Inch Left Output Shaft, 254-6TC NEMA Input, 233 RPM Output

Item: AY6PKVModel: GR8420362.00Cross Ref: GR-BMQ842-7.5-L-250
Check Availability
In Stock

Get it by Tuesday, Sep 1

€2,216.39 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 6.13
Aj 7.25
Ak 8.5
Application General Purpose
Assembly BMQ-L
B 10.25
Bd 9
Be1 1/2"
Bf 0.53
C 11.38"
Center Distance 4 1/4"
D 4.44
F 5
Frame 250
G 2.5
Gear Type Worm
H-tap Size 5/8"-11
H-tap Type UNC
Housing Material Cast Iron
I 6.1"
Input Bore (c Face) 1 5/8" , 1.625
Input Hp @ 1750 Rpm 16 27/100 hp
Input Keyway (c Face) 3/8 x 3/16
Input Keyway Size (c Face) 3/8" x 3/16"
Input Speed 1750 , 1750 RPM
Input Style C Face Quill
J 8 1/2"
K 4 1/4"
Lq1 7.77"
Max. Input Hp @ 1750 15 hp
Motor Frame Size 250
Mount Footprint 5" x 8.5"
Mount Style BMQ
N 8.12
Nema Input Mounting 254-6TC
No. Of Gear Reductions 1 , Single
O 4 1/2"
Output Config H1 Left
Output Dia. 1 7/8"
Output Key 1/2 x 3.06
Output Key Size 1/2" x 3.06"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1.875
Output Shaft Direction Left
Output Shaft Thrust Rating 1640
Output Speed 233 , 233 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 4148 lbs.-in.
Output Torque Rating (in-lb) 4148 lbs.-in.
Overhung Load Rating 2930 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5
Rq 7 6/25"
Series GR , GR Series
Series Code Gr
Series Size 842
Service Factor 1
Shaft Center Distance 4.25
Shaft Center Height 4.44
Shaft Seal Material Viton
T 1.875
Tap Depth 1"
Tap Size 5/8"-11
Thread Type Coarse
Torque (lb-in)@1750rpm 4148 lbs.-in.

Shipping Info:

Ship weight (kg) 65.7
Ship height (cm)26.67
Ship length (cm)40.64
Ship width (cm)30.48

Documentation:

Datasheet

Product Variants

ProductModelOutput Dia.Output SpeedInput Dia.Output TorqueOutput HpMax. Input HpPaint/coatingInput Hp @ 1750 RpmPrice
GROVE GEAR GR8420315.00 Worm Reducer, 10:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX4TFG GR8420315.001 7/8"175 RPM1 1/8"5042 lbs.-in.14 hp14 93/100 hpBlue14 93/100 hp€4,104.01
GROVE GEAR GR8420541.23 Worm Reducer, 20:1 Ratio, 1.25 Inch I.D, 1.438 Inch O.D, Cast Iron | AX4VRR GR8420541.231.438"87 RPM1 1/4"6092 lbs.-in.8.458 hp9.462 hpBlue9.462 hp€5,089.13
GROVE GEAR GR8424034.00 Quill Input Worm Gear Reducer | AX6RHY GR8424034.00------Blue-€4,193.11
RFQ
GROVE GEAR GR8425888.00 Quill Input Worm Gear Reducer | AX6XKL GR8425888.00------Blue-€2,412.37
RFQ
GROVE GEAR GR8420605.23 Worm Reducer, 50:1 Ratio, 1.125 Inch I.D, 1.438 Inch O.D, Cast Iron | AX6ZVX GR8420605.231.438"35 RPM1 1/8"6170 lbs.-in.3.426 hp4.389 hpBlue4.389 hp€5,089.13
GROVE GEAR GR8420181.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX7MAR GR-BM842-5-L-250 GR8420181.001 7/8"350 RPM1 1/4"----18 2/25 hp€2,216.39
GROVE GEAR GR8424151.00 Quill Input Worm Gear Reducer | AX7QFJ GR8424151.00------Blue-€4,193.11
RFQ
