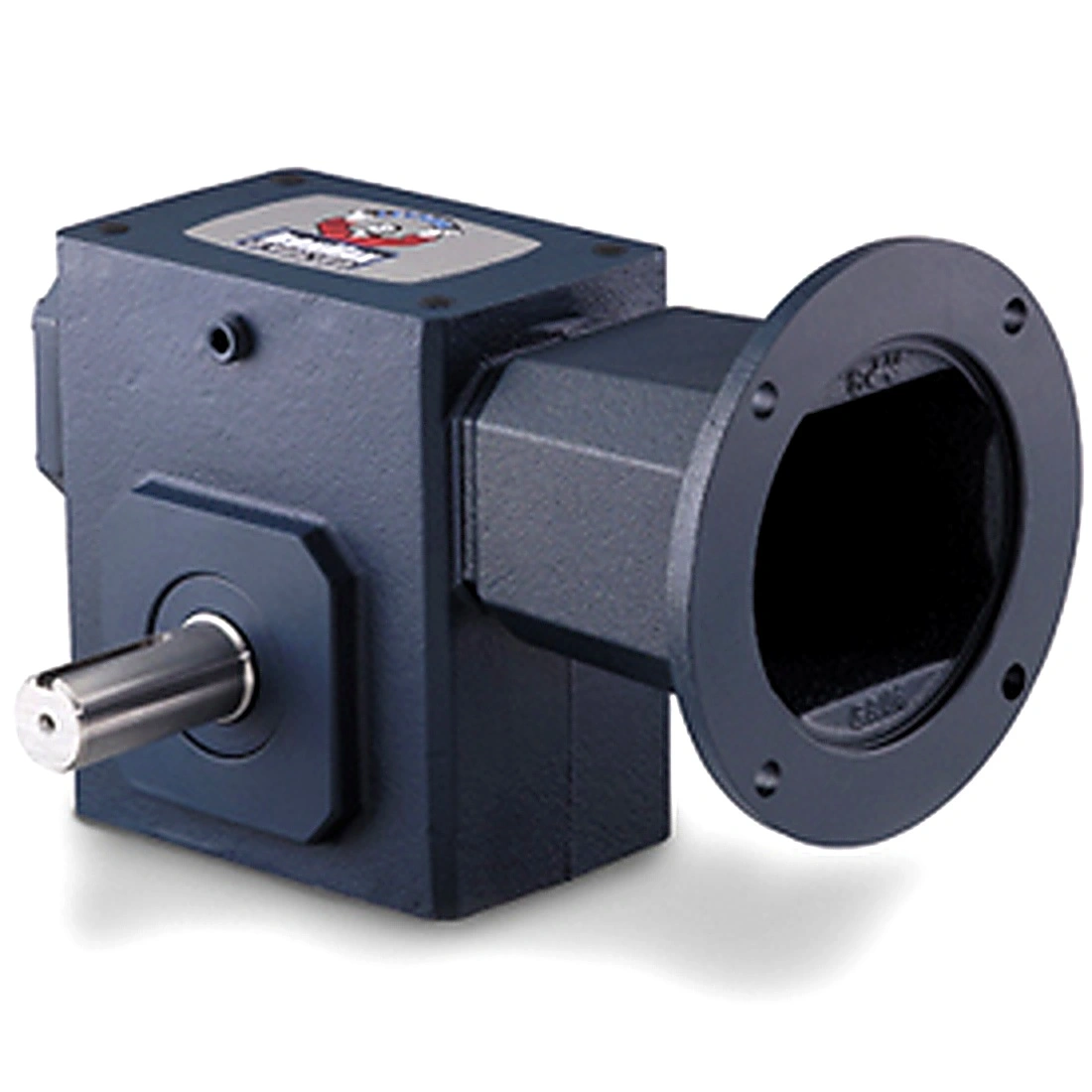

GROVE GEAR GR8420149.00 GR-BM842-20-L-210 Right Angle Gear Reducer, 20 to 1 Ratio, 1.875 Inch Left Output Shaft, 213-5TC NEMA Input, 87 RPM Output
Get it by Tuesday, Aug 18
€2,216.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| A | 6.13 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | General Purpose |
| Assembly | BM-L |
| B | 10.25 |
| Bd | 9 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 11.38" |
| Center Distance | 4 1/4" |
| D | 4.44 |
| F | 5 |
| Frame | 210 |
| G | 2.5 |
| Gear Type | Worm |
| H-tap Size | 5/8"-11 |
| H-tap Type | UNC |
| Housing Material | Cast Iron |
| I | 6.1" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 9.462 hp |
| Input Keyway | 1/4" x 2.5" |
| Input Keyway Size | 1/4" x 2.5" |
| Input Speed | 1750 , 1750 RPM |
| Input Style | Flexible Coupling Input |
| J | 8 1/2" |
| K | 4 1/4" |
| L | 9.57" |
| L1 | 12.9" |
| Max. Input Hp @ 1750 | 7 1/2 hp |
| Motor Frame Size | 210 |
| Mount Footprint | 5" x 8.5" |
| Mount Style | BM |
| N | 8.12 |
| Nema Input Mounting | 213-5TC |
| No. Of Gear Reductions | 1 , Single |
| O | 4 1/2" |
| Output Config | H1 Left |
| Output Dia. | 1 7/8" |
| Output Key | 1/2 x 3.06 |
| Output Key Size | 1/2" x 3.06" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1.875 |
| Output Shaft Direction | Left |
| Output Shaft Thrust Rating | 2533 |
| Output Speed | 87 , 87 RPM |
| Output Speed @ 1750 Rpm Input | 87 |
| Output Torque | 6092 lbs.-in. |
| Output Torque Rating (in-lb) | 6092 lbs.-in. |
| Overhung Load Rating | 3320 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Right Angle |
| Ratio | 201 |
| Reducer | Worm - Right Angle |
| Reduction Ratio | 20 |
| Series | GR , GR Series |
| Series Code | Gr |
| Series Size | 842 |
| Service Factor | 1 |
| Shaft Center Distance | 4.25 |
| Shaft Center Height | 4.44 |
| Shaft Seal Material | Viton |
| T | 1.875 |
| Tap Depth | 1" |
| Tap Size | 5/8"-11 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 6092 lbs.-in. |
| U | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 69.3 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Gear Type | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8420315.00 | 5042 lbs.-in. | 175 RPM | 1 7/8" | 1 1/8" | 14 hp | 14 93/100 hp | Worm | Solid Shaft | €4,104.01 | |
 |
GR8420541.23 | 6092 lbs.-in. | 87 RPM | 1.438" | 1 1/4" | 8.458 hp | 9.462 hp | Worm | Hollow Bore | €5,089.13 | |
|
GR8424034.00 | - | - | - | - | - | - | - | - | €4,193.11 | RFQ
|
|
GR8425888.00 | - | - | - | - | - | - | - | - | €2,412.37 | RFQ
|
 |
GR8420605.23 | 6170 lbs.-in. | 35 RPM | 1.438" | 1 1/8" | 3.426 hp | 4.389 hp | Worm | Hollow Bore | €5,089.13 | |
|
GR8420181.00 | 3209 lbs.-in. | 350 RPM | 1 7/8" | 1 1/4" | - | - | Worm | Solid Shaft | €2,216.39 | |
|
GR8424151.00 | - | - | - | - | - | - | - | - | €4,193.11 | RFQ
|
