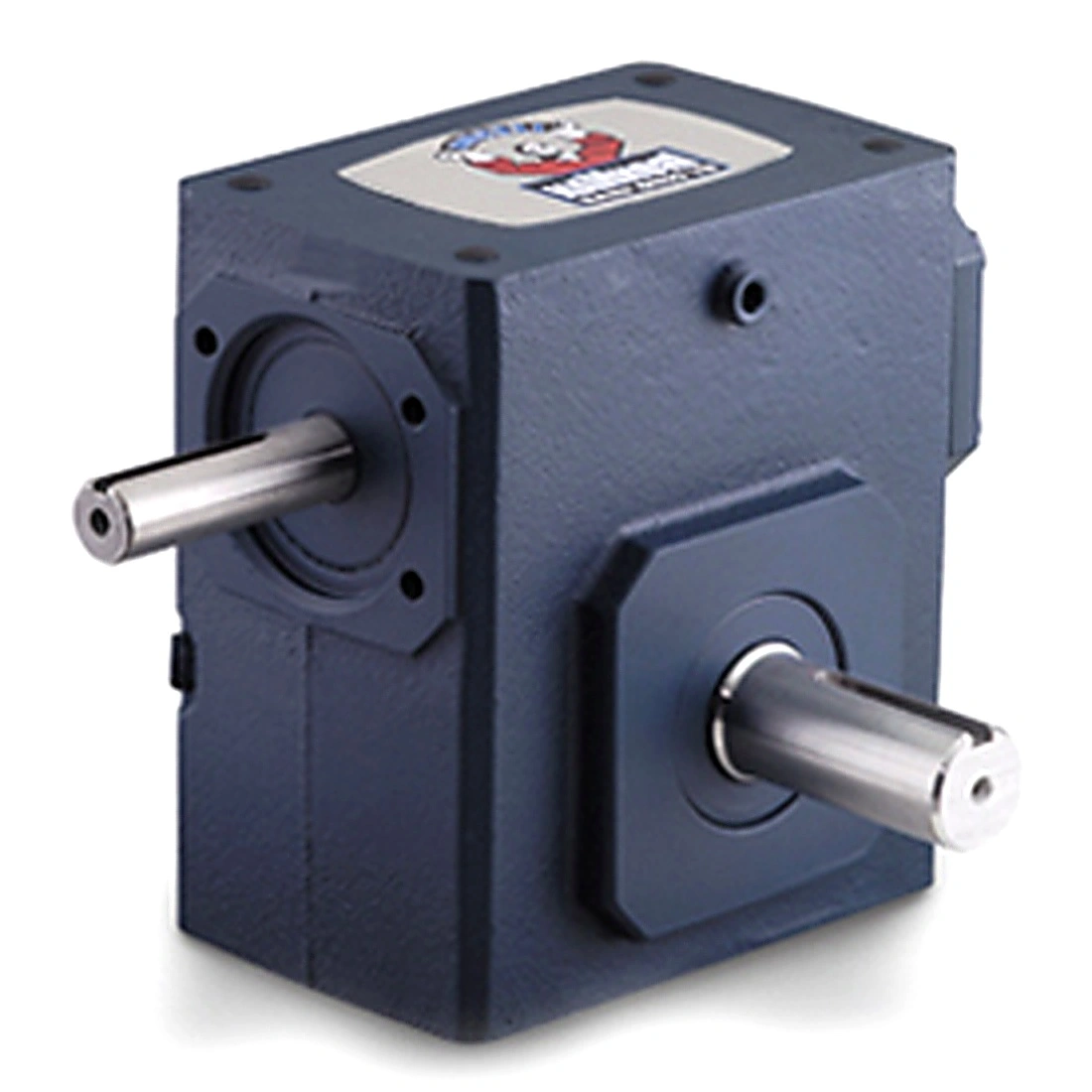

GROVE GEAR GR8420025.00 GR-B842-5-D--- Right Angle Gear Reducer, 5 to 1 Reduction Ratio, 350 RPM Output, 3209 lb-in Torque, Dual Shaft Output
Get it by Tuesday, Aug 25
€3,518.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Assembly | B-D |
| Center Distance | 4 1/4" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 1 1/4" |
| Input Hp | 18 2/25 hp |
| Input Hp @ 1750 Rpm | 18 2/25 hp |
| Input Style | Solid Shaft |
| Max. Input Hp @ 1750 | 15 hp |
| Max. Ohl (output Shaft) | 2800 |
| Max. Thrust Load (output Shaft) | 1445 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output Config | Dual Shaft |
| Output Dia. | 1 7/8" |
| Output Hp | 17 1/4 hp |
| Output Shaft Dia | 1.875 |
| Output Shaft Direction | Double |
| Output Speed | 350 |
| Output Speed @ 1750 Rpm Input | 350 |
| Output Style | D |
| Output Torque | 2589 |
| Output Type | Solid Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Right Angle |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 842 |
| Shaft Center Distance | 4.25 |
| Shaft Center Height | 4.44 |
| Shaft Seal Material | Viton |
| Speed | 350 RPM |
| Torque (lb-in)@1750rpm | 3209 |
Shipping Info:
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 31.75 |
