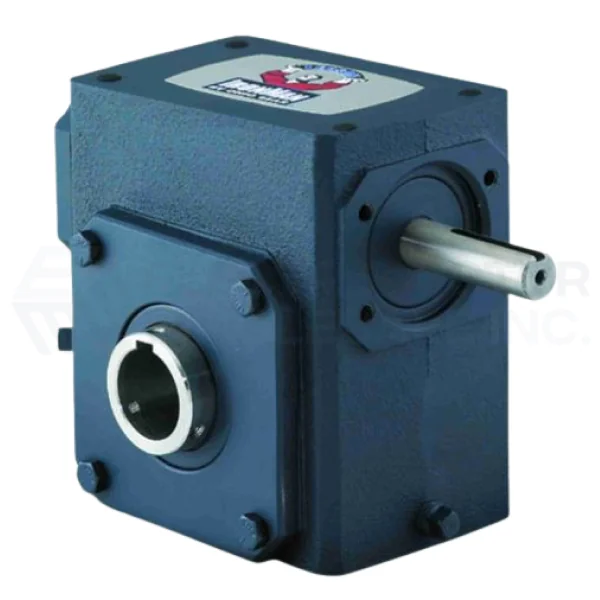

GROVE GEAR GR8320559.32 GR-H832-80-H1-32 Right Angle Gear Reducer, 80 to 1 Ratio, 2 Inch Hollow Bore, Solid Shaft Input, Cast Iron
Get it by Tuesday, Aug 18
€1,708.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Hollow Bore Dimensions | 2" |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 1 hp |
| Mount Footprint | 4 x 7.5 |
| Mount Style | H |
| Nema Input Mounting | Solid Shaft |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 21 |
| Overhung Load Rating | 2275 lbs. |
| Reduction Ratio | 80:1 |
| Series | GR |
| Series Size | 832 |
| Shaft Center Distance | 3.25 |
| Shaft Center Height | 3.5 |
| Torque (lb-in)@1750rpm | 2000 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Output Torque | Output Dia. | Output Speed | Input Dia. | Output Hp | Max. Input Hp | Input Style | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8322518.31 | - | - | - | - | - | - | 3-Piece Coupled | - | €3,682.80 | RFQ
|
 |
GR8320585.20 | 2033 lbs.-in. | 1 1/4" | 350 RPM | - | - | - | C Face Quill | General Purpose | €1,910.44 | |
|
GR8320505.20 | 3226 lbs.-in. | 1 1/4" | 58 RPM | 7/8" | - | - | Solid Shaft | General Purpose | €1,708.36 | |
 |
GR8320585.31 | - | 1.938" | - | 5/8" | 11.29 hp | 11 23/25 hp | C Face Quill | General Purpose | €3,476.45 | |
 |
GR8323511.20 | 2000 lbs.-in. | 1 1/4" | 21.9 RPM | 5/8" | 0.695 hp | 1 3/100 hp | C Face Quill | Epoxy Washdown | €5,215.65 | |
 |
GR8320505.24 | 3226 lbs.-in. | 1 1/2" | 58 RPM | 7/8" | 2.986 hp | 3.619 hp | Solid Shaft | General Purpose | €3,152.99 | |
|
GR8320506.28 | 3303 lbs.-in. | 1 3/4" | 43 RPM | 7/8" | 2.293 hp | 2.926 hp | Solid Shaft | General Purpose | €3,152.99 |
