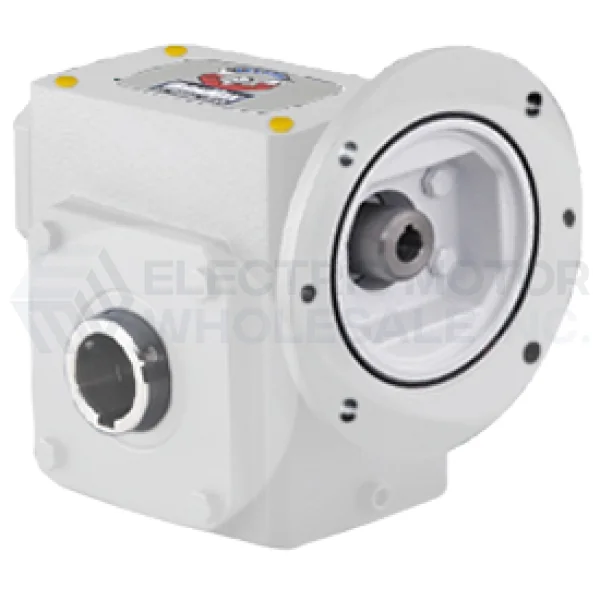

GROVE GEAR GR8263504.23 GR-WHMQ826-15-H1-56-23 Epoxy WashDown Right Angle Gear Reducer, 15 to 1 Ratio, 1-7/16 Inch Hollow Bore, 56C NEMA Input, Cast Iron
Get it by Friday, Jul 17
€1,821.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Epoxy Washdown |
| Certifications | USDA Accepted |
| Hollow Bore Dimensions | 1 7/16" |
| Housing | Cast Iron |
| Ip Rating | 69K |
| Max. Input Hp @ 1750 | 3.614 hp |
| Mount Footprint | 3.38 x 6.38 |
| Mount Style | WHMQ |
| Nema Input Mounting | 56C |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 116.7 |
| Overhung Load Rating | 1625 lbs. |
| Reduction Ratio | 15:1 |
| Series | GR |
| Series Size | 826 |
| Shaft Center Distance | 2.63 |
| Shaft Center Height | 2.94 |
| Torque (lb-in)@1750rpm | 1737 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | output torque | gear type | mounting type | max. input hp | gear ratio | input style | center distance | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8263904.20 | - | - | - | - | - | Quill | 2.6" | - | €2,473.97 | RFQ
|
 |
GR8260574.19 | 1235 lbs.-in. | Worm | Shaft Mount | 4.956 hp | - | C Face Quill | 2.63" | 1 | €2,416.65 | |
 |
GR8260529.16 | 1836 lbs.-in. | Worm | Shaft Mount | 2.965 hp | - | Flexible Coupling Input | 2.63" | 1 | €2,416.65 | |
 |
GR8262536.16 | 2860 lbs.-in. | Double Worm | Base | 0.353 hp | - | C Face Quill | 2.63" | 2 | €1,776.67 | RFQ
|
 |
GR8260503.23 | 1475 lbs.-in. | Worm | Shaft Mount | 4.492 hp | - | Solid Shaft | 2.63" | 1 | €2,098.20 | |
|
GR8260521.18 | 1843 lbs.-in. | Worm | - | - | - | Flexible Coupling Input | 2.63" | 1 | €1,354.72 | |
|
GR8260559.20 | - | - | Shaft | 0.577 hp | 80:1 | C Face Quill | 2.63" | - | €2,383.07 |
