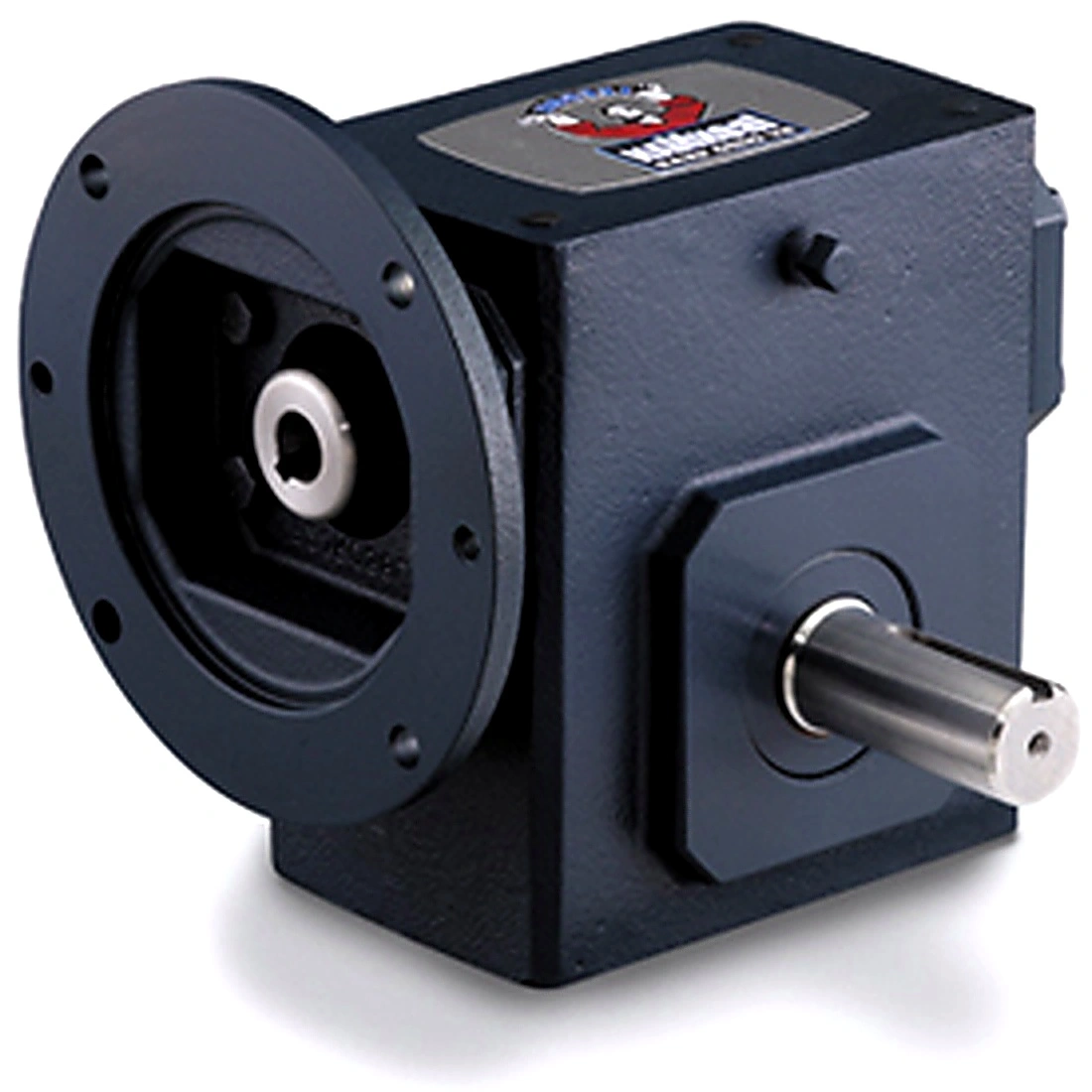

GROVE GEAR GR8240178.00 GR-BMQ824-60-D-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 1418 lb-in Torque, Dual Shaft Output
Get it by Tuesday, Aug 25
€1,280.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Center Distance | 2.38" |
| Centre Distance | 2.38" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.625 |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.967 hp |
| Input Hp @ 1750 Rpm | 0.967 hp |
| Input Size | 5/8" |
| Input Style | C-Face Quill |
| Lubrication Type | Pag Synthetic Oil |
| Max. Hp | 97/100 hp |
| Max. Ohl (output Shaft) | 1770 |
| Max. Overhung Load | 1415 lbs. |
| Max. Thrust Load (output Shaft) | 2091 |
| Mounting Type | Base |
| No. Of Gear Reductions | Single |
| Output Config | Dual Shaft |
| Output Dia. | 1 1/8" |
| Output Shaft Dia | 1.125 |
| Output Shaft Direction | Double |
| Output Speed | 29.2 |
| Output Style | D |
| Output Torque | 1219 |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Worm Speed Reducer |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 824 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Center Distance | 2.38 |
| Shaft Seal Material | Viton |
| Size | 56C |
| Speed | 29 RPM |
| Torque (lb-in)@1750rpm | 1418 |
| Type | Right Angle Single Reduction |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 19.05 |
