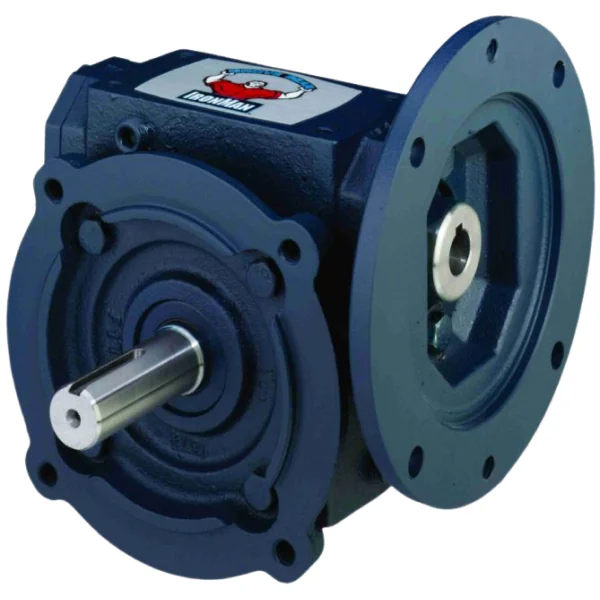

GROVE GEAR GR8181183.00 GR-CMQ818-10-L-140 Flanged Right Angle Gear Reducer, 10 to 1 Ratio, 0.875 Inch Left Output Shaft, 143-5TC NEMA Input, Cast Iron
Get it by Tuesday, Aug 18
€706.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 1 5/8 hp |
| Mount Style | CMQ |
| Nema Input Mounting | 143-5TC |
| Output Config | Flanged Left |
| Output Shaft Dia. | 0.875 |
| Output Speed @ 1750 Rpm Input | 175 |
| Overhung Load Rating | 1200 lbs. |
| Reduction Ratio | 10:1 |
| Series | GR |
| Series Size | 818 |
| Shaft Center Distance | 1.75 |
| Shaft Center Height | 2.06 |
| Torque (lb-in)@1750rpm | 528 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 18.42 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8180542.16 | 567 | - | 1" | 0.715 hp | 5/8" | 0.884 hp | Hollow | Blue | €1,207.97 | |
 |
GR8180111.00 | 528 | 175 RPM | 7/8" | 1.466 hp | 5/8" | 1 5/8 hp | Left | Blue | €894.01 | |
|
GR8180124.00 | 645 | 116.7 RPM | 7/8" | 1.058 hp | 5/8" | 1.224 hp | Right | Blue | €894.01 | |
 |
GR8185564.00 | - | - | - | - | - | - | Right | - | €1,206.28 | |
|
GR8180118.00 | 689 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Left | Blue | €809.88 | |
|
GR8180117.00 | 857 | 35 RPM | 7/8" | - | 5/8" | 103/200 hp | Left | Blue | €894.01 | |
|
GR8180130.00 | 623 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Right | Blue | €809.88 |
