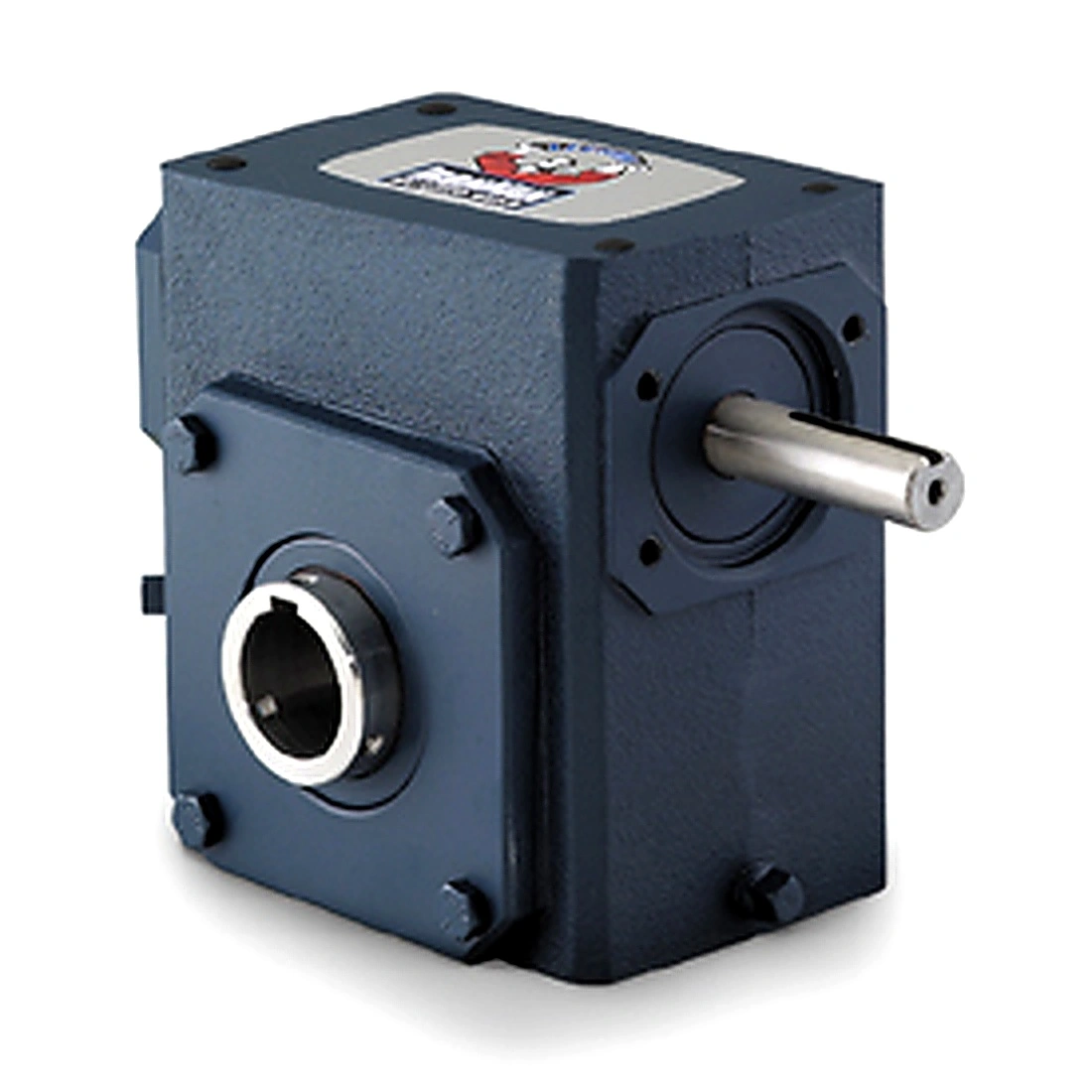

GROVE GEAR GR8150510.10 GR-H815-60-H1-10 Right Angle Gear Reducer, 60-to-1 Ratio, 29 RPM Output, 1/3 HP Input, Cast Iron
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 1/3 hp |
| Mount Footprint | 2.75 x 4.19 |
| Mount Style | H |
| Nema Input Mounting | Solid Shaft |
| Output Speed @ 1750 Rpm Input | 29 |
| Overhung Load Rating | 860 lbs. |
| Series Size | 815 |
| Shaft Center Distance | 1.54 |
| Shaft Center Height | 1.91 |
| Torque (lb-in)@1750rpm | 462 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 19.86 |
| Ship length (cm) | 24.43 |
| Ship width (cm) | 17.98 |
