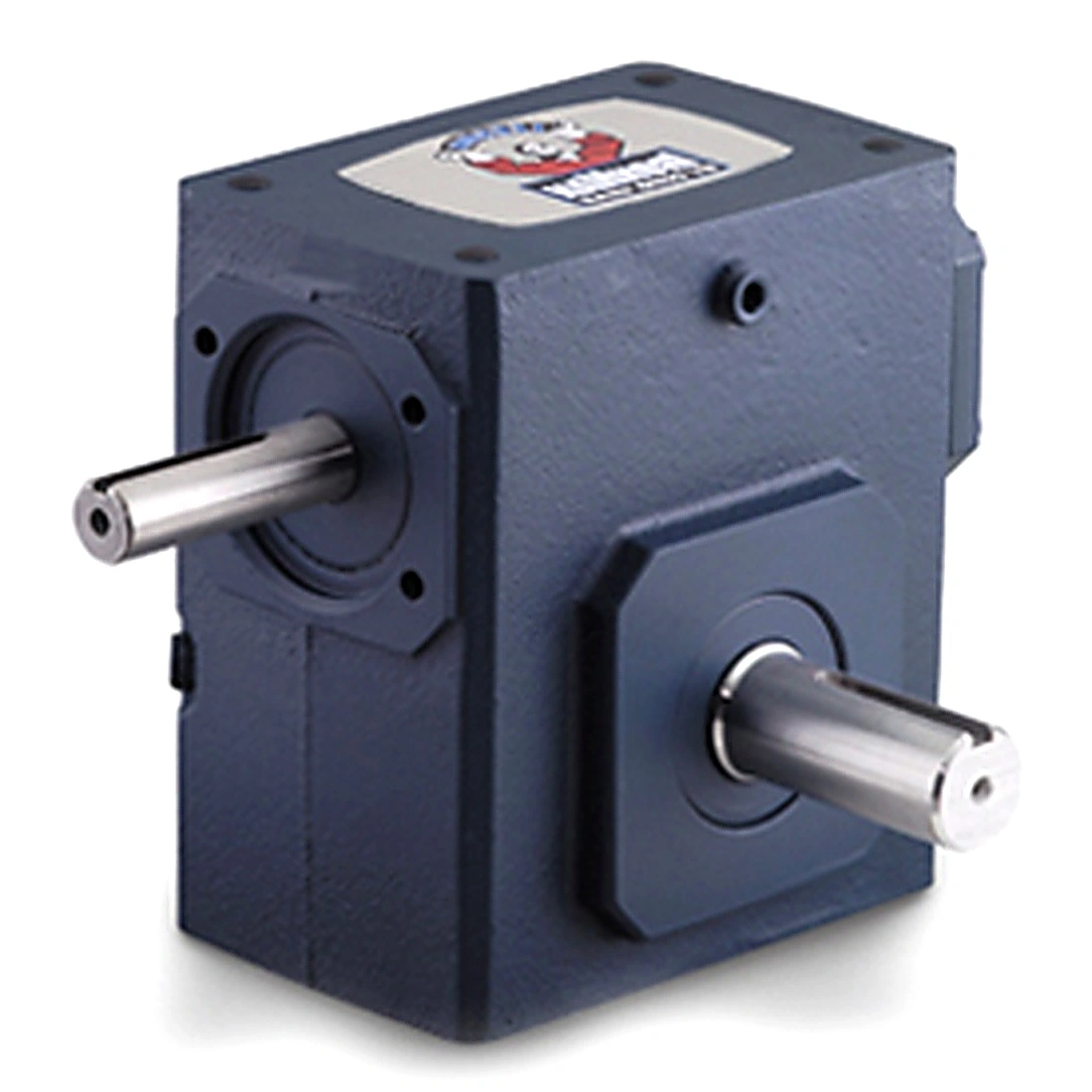

GROVE GEAR GR8130032.00 GR-B813-40-D Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 322 lb-in Torque, Dual Shaft Output
Get it by Tuesday, Aug 25
€868.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Assembly | B-D |
| Center Distance | 1.33" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 1/2" |
| Input Hp | 0.329 hp |
| Input Hp @ 1750 Rpm | 0.329 hp |
| Input Style | Solid Shaft |
| Max. Ohl (output Shaft) | 700 |
| Max. Thrust Load (output Shaft) | 1144 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output Config | Dual Shaft |
| Output Dia. | 5/8" |
| Output Hp | 0.223 hp |
| Output Shaft Dia | 0.625 |
| Output Shaft Direction | Double |
| Output Speed | 43 |
| Output Speed @ 1750 Rpm Input | 43 |
| Output Style | D |
| Output Torque | 432 |
| Output Type | Solid Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Worm Speed Reducer |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Shaft Seal Material | Viton |
| Speed | 43 RPM |
| Torque (lb-in)@1750rpm | 322 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 12.7 |
