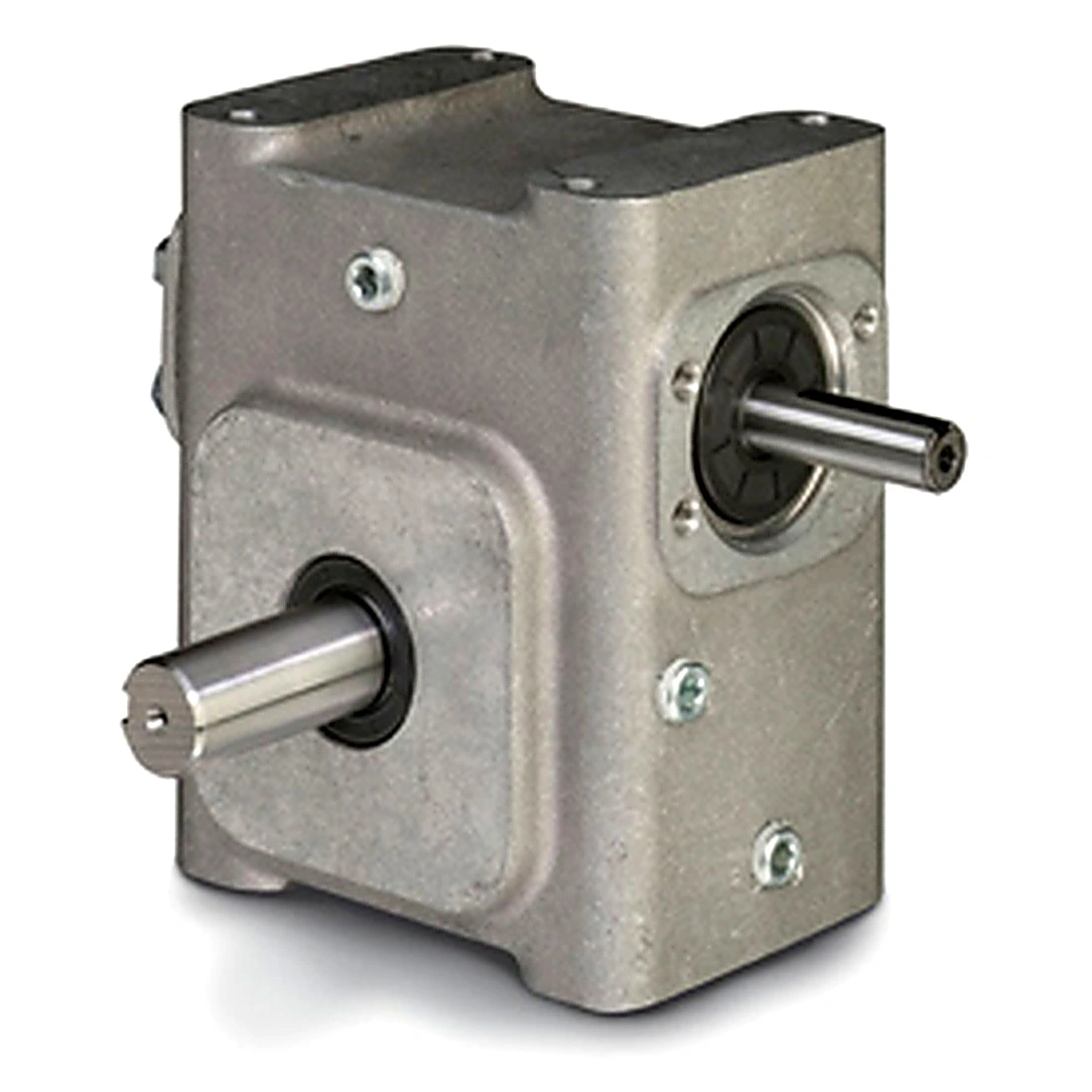

GROVE GEAR EL8320001.00 EL-B832-10-L Right Angle Gear Reducer, 10 to 1 Reduction Ratio, 175 RPM Output, 2700 lb-in Torque, Aluminum
Get it by Tuesday, Aug 25
€3,082.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Aluminum |
| Assembly | B-L |
| Center Distance | 3 1/4" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 7/8" |
| Input Style | Solid Shaft |
| Max. Input Hp @ 1750 | 7 1/2 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2026 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output | Left |
| Output Config | H1 Left |
| Output Dia. | 1 5/8" |
| Output Hp | 7.497 hp |
| Output Shaft Dia | 1.625 |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 175 |
| Output Speed @ 1750 Rpm Input | 175 |
| Output Style | L |
| Output Type | Shaft |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Product Type | Right Angle |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 832 |
| Shaft Center Distance | 3.25 |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| Torque (lb-in)@1750rpm | 2700 |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 26.04 |
