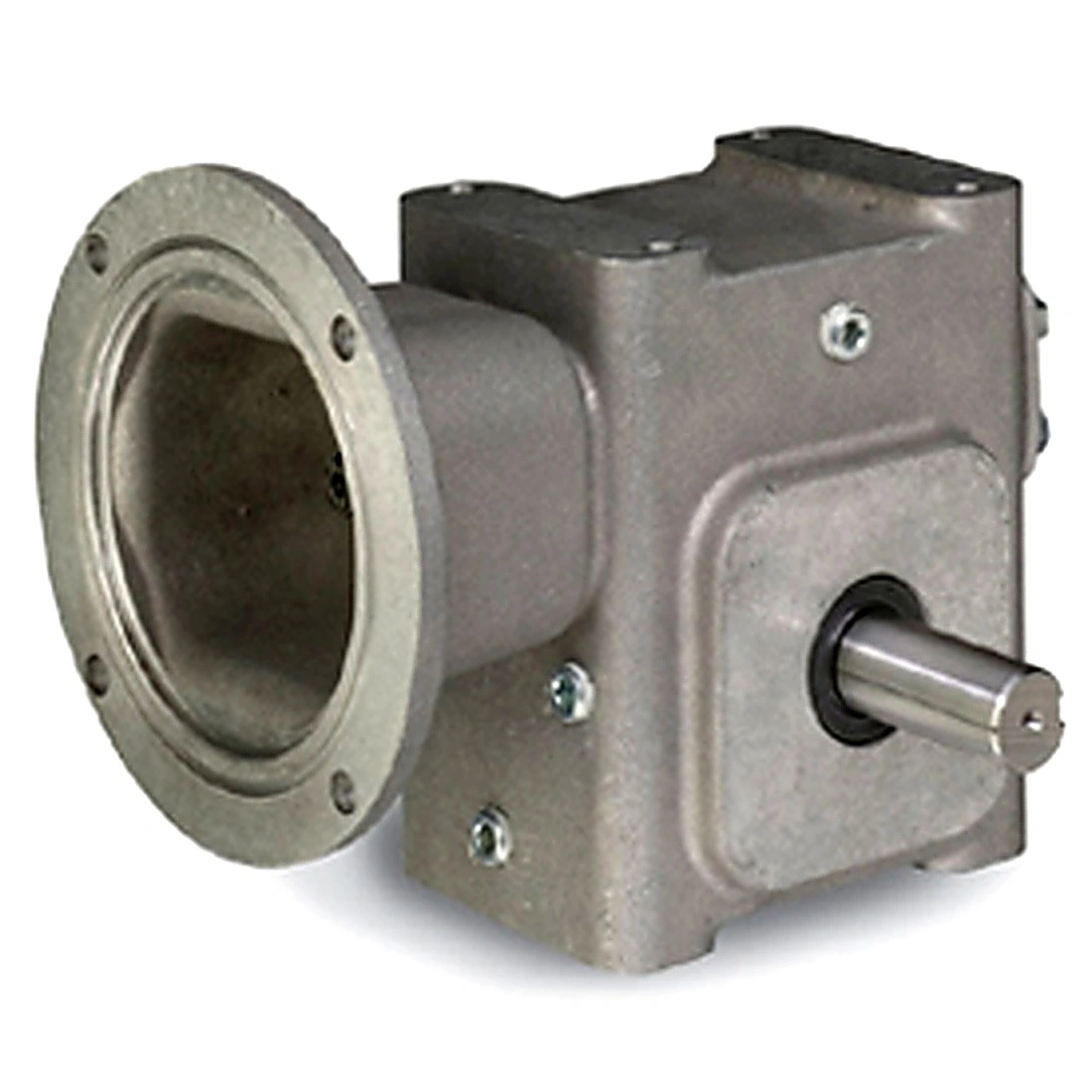

GROVE GEAR EL8130054.00 EL-BM813-25-R-56 Right Angle Gear Reducer, 25 to 1 Ratio, 0.625 Inch Right Output Shaft, 56C NEMA Input, 70 RPM Output
Get it by Wednesday, Jul 1
€676.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Assembly | BM-R |
| Center Distance | 1.33" |
| Frame | 56 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Dia. | 1/2" |
| Input Hp @ 1750 Rpm | 89/200 hp |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Key Size | 3/16" x 1.38" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Direction | Right |
| Output Shaft Thrust Rating | 1144 |
| Output Speed | 70 RPM |
| Output Torque | 309 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Series | EL Series |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
Product Variants
| Product | Model | output torque | max. input hp | mounting type | center distance | input style | output shaft assembly code | output shaft | assembly | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8130217.00 | 209 lbs.-in. | 1 31/125 hp | Base | 1.33" | C Face Quill | L | Solid Shaft | BMQ-L | €1,364.95 | |
|
EL8130041.00 | 320 lbs.-in. | - | - | 1.33" | Flexible Coupling Input | L | Solid Shaft | BM-L | €676.29 | |
|
EL8130555.10 | - | - | - | 1.3" | 3-Piece Coupled | - | - | - | €667.91 | RFQ
|
|
EL8130077.00 | 320 lbs.-in. | 0.551 hp | Base | 1.33" | C Face Quill | L | Solid Shaft | BMQ-L | €1,364.95 | |
|
EL8130091.00 | 314 lbs.-in. | 79/200 hp | Base | 1.33" | C Face Quill | R | Solid Shaft | BMQ-R | €1,364.95 | |
|
EL8130114.00 | - | - | - | 1.3" | 3-Piece Coupled | - | - | - | €518.33 | RFQ
|
 |
EL8130507.10 | 314 lbs.-in. | 79/200 hp | Shaft Mount | 1.33" | Shaft | H1 | Hollow Bore | H-H1 | €1,470.22 |
