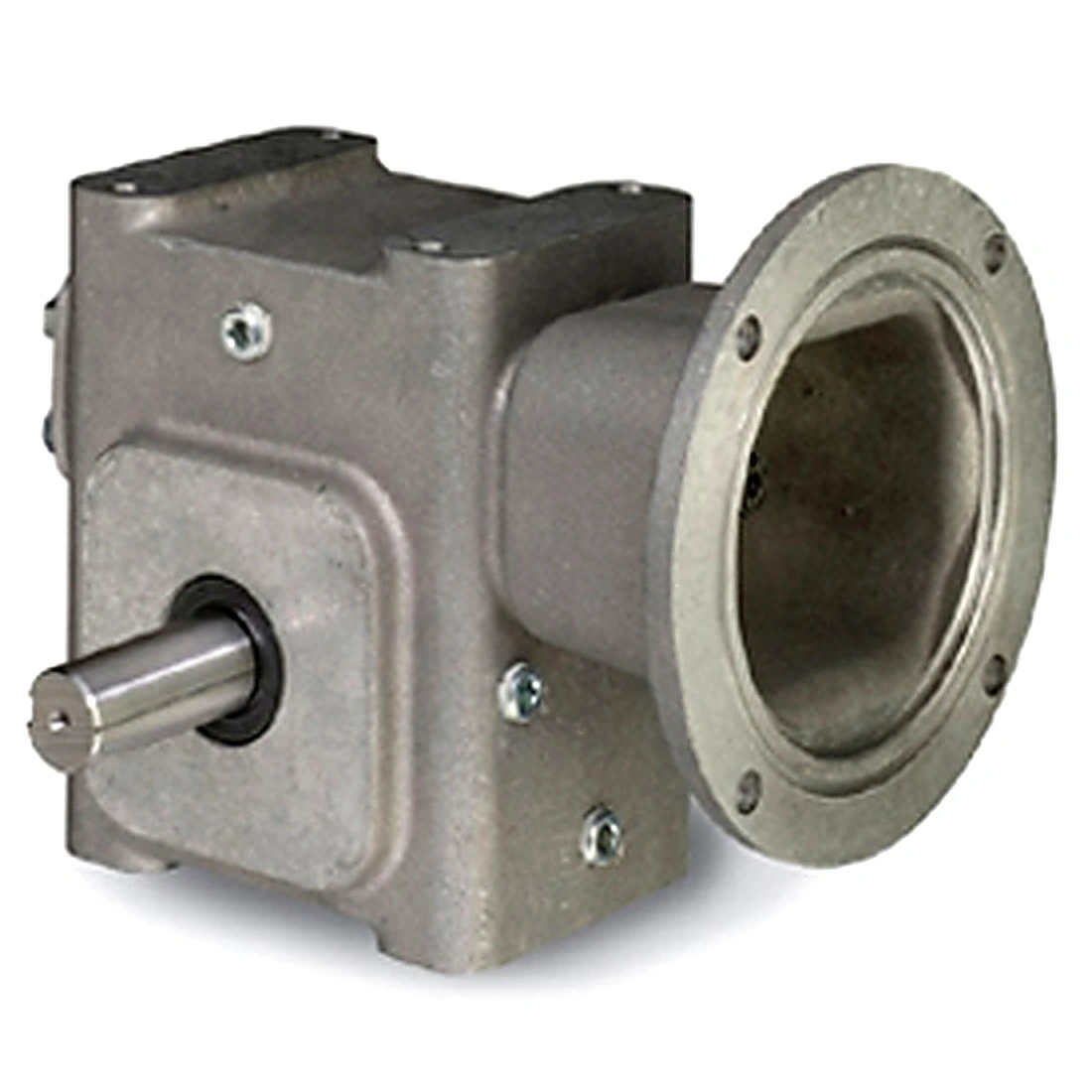

GROVE GEAR EL8130039.00 EL-BM813-10-L-56 Right Angle Gear Reducer, 10 to 1 Ratio, 0.625 Inch Left Output Shaft, 56C NEMA Input, 175 RPM Output

Item: AY4XLEModel: EL8130039.00Cross Ref: EL-BM813-10-L-56
Check Availability
In Stock

Get it by Thursday, Jul 16

€676.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 2.82
Aj 5.88
Ak 4.5
Application Aluminum
Assembly BM-L
B 3.8
Bd 6.5
Be 0.38"
Bf 0.41
C 4.66"
Center Distance 1.33"
D 1.72
F 2
Frame 56
G 1
Gear Type Worm
H-tap Size 5/16"-18
H-tap Size 18"
Housing Material Aluminum
I 2 2/5"
Input Dia. 1/2"
Input Hp @ 1750 Rpm 0.823 hp
Input Keyway 1/8" x 1"
Input Keyway Size 1/8" x 1"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 3 1/4"
K 1.63"
L1 3.82"
Lm 6.07
Max. Input Hp @ 1750 3/4 hp
Motor Frame Size 56
Mount Footprint 2 x 3.25
Mount Style BM
N 4
Nema Input Mounting 56C
No. Of Gear Reductions 1 , Single
O 2 4/25"
Output Config H1 Left
Output Dia. 5/8"
Output Key 3/16 x 1.38
Output Key Size 3/16" x 1.38"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 0.625
Output Shaft Direction Left
Output Shaft Thrust Rating 1070
Output Speed 175 , 175 RPM
Output Speed @ 1750 Rpm Input 175
Output Torque 263 lbs.-in.
Output Torque Rating (in-lb) 263 lbs.-in.
Overhung Load Rating 700 lbs.
Product Line EL Series - Aluminum Worm Gear Reducers
Product Type Right Angle
Ratio 101
Reducer Worm - Right Angle
Reduction Ratio 10
Series EL Series , ZX
Series Code El
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Tap Depth 1/2"
Tap Size 5/16"-18
Torque (lb-in)@1750rpm 263 lbs.-in.
U 1/2"

Shipping Info:

Ship weight (kg) 6.75
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Product Variants

ProductModeloutput torquemax. input hpmounting typecenter distanceinput styleoutput shaft assembly codeoutput shaftassemblyPrice
GROVE GEAR EL8130217.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 0.625 Inch O.D, Aluminum | AX7AMJ EL8130217.00209 lbs.-in.1 31/125 hpBase1.33"C Face QuillLSolid ShaftBMQ-L€1,364.95
GROVE GEAR EL8130041.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX8EHK EL-BM813-20-L-56 EL8130041.00320 lbs.-in.--1.33"Flexible Coupling InputLSolid ShaftBM-L€676.29
GROVE GEAR EL8130555.10 Output Worm Gear Reducer | AX8EHM EL8130555.10---1.3"3-Piece Coupled---€667.91
RFQ
GROVE GEAR EL8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Aluminum | AX8PPG EL8130077.00320 lbs.-in.0.551 hpBase1.33"C Face QuillLSolid ShaftBMQ-L€1,364.95
GROVE GEAR EL8130091.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Aluminum | AX8RJQ EL8130091.00314 lbs.-in.79/200 hpBase1.33"C Face QuillRSolid ShaftBMQ-R€1,364.95
GROVE GEAR EL8130114.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX8RJR EL8130114.00---1.3"3-Piece Coupled---€518.33
RFQ
GROVE GEAR EL8130507.10 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Aluminum | AX8UGK EL8130507.10314 lbs.-in.79/200 hpShaft Mount1.33"ShaftH1Hollow BoreH-H1€1,470.22
