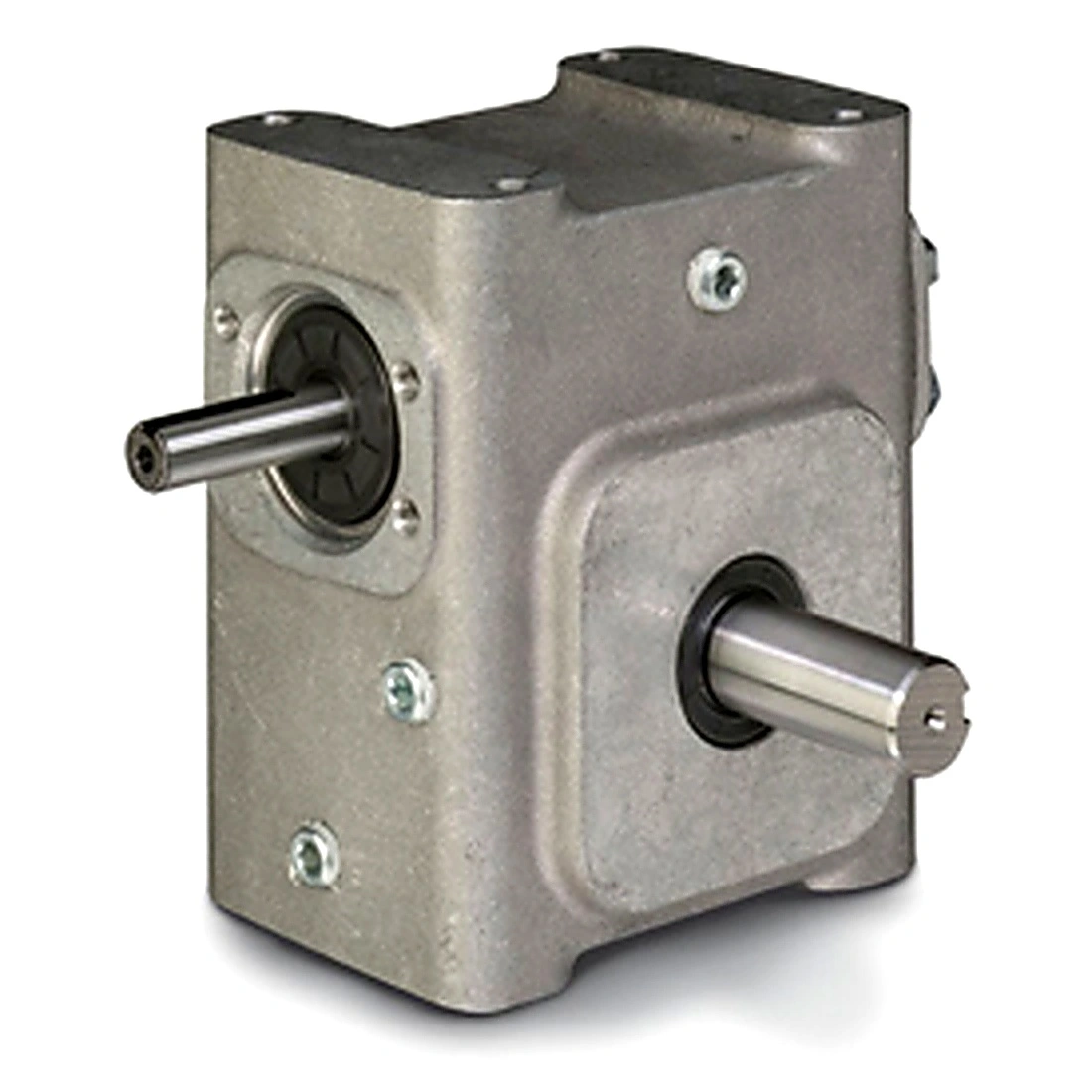

GROVE GEAR EL8130031.00 EL-B813-30-D Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 314 lb-in Torque, Aluminum
Item: DJ7KCLModel: EL8130031.00Cross Ref: EL-B813-30-D
7 In Stock
Ships within 2 days via
€1,324.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gear Reducer |
| Application | Aluminum |
| Assembly | B-D |
| Center Distance | 1.33" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 1/2" |
| Input Style | Solid Shaft |
| Max. Ohl (output Shaft) | 700 |
| Max. Thrust Load (output Shaft) | 1144 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output Config | Dual Shaft |
| Output Dia. | 5/8" |
| Output Hp | 29/100 hp |
| Output Shaft Dia | 0.625 |
| Output Shaft Direction | Double |
| Output Speed | 58 |
| Output Speed @ 1750 Rpm Input | 58 |
| Output Style | D |
| Output Type | Solid Shaft |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Product Type | Right Angle |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| Torque (lb-in)@1750rpm | 314 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 12.7 |
