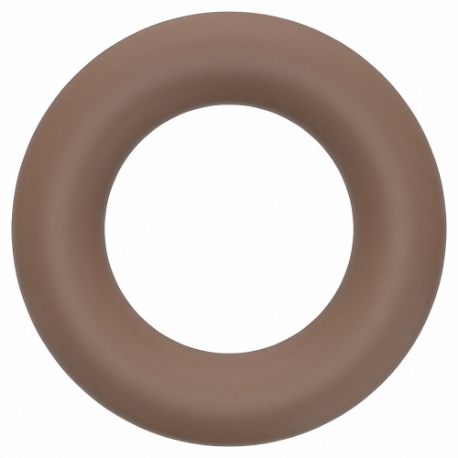

GRAINGER ZUSAVB75007 O-Ring, 5/32 Inch Inside Dia, 9/32 Inch Outside Dia, 75 Shore A, Brown
Item: CQ3BPDModel: ZUSAVB75007Cross Ref: 713J88
7 In Stock
Ships within 2 days via
10.00% off
€21.68 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | O-Ring |
| Actual Inside Dia. | 0.1" |
| Actual Outside Dia. | 0.285" |
| Actual Width | 0.07" |
| Application | Standard |
| Color | Brown |
| Cross Section | 1/16" |
| Cross Section Shape | Round |
| Dash Number | 7 |
| Durometer | 75 Shore A |
| Durometer Rating | Medium Hard |
| Fda Approved | Fda Approved |
| Inside Diameter - Actual | 0.145" |
| Inside Diameter - Nominal | 5/32" |
| Material | Viton |
| Metal Detectable | Metal Detectable |
| Nominal Inside Dia. | 0.156" |
| Nominal Outside Dia. | 0.281" |
| Nominal Width | 0.062" |
| O-ring Material | Viton |
| O-ring Material Compatibility | Bleach, Carbon Dioxide, Detergents, Diesel Oil, Ethanol, Fatty Acids, Gasoline, Hydraulic Oils (Petroleum), Hydrochloric Acid (37%), Kerosene, Lubricating Oils (Petroleum), Mineral Oil, Natural Gas, Nitrogen, Silicone Grease, Sulfuric Acid (Dilute), Toluene, Vegetable Oils, Water |
| Operating Temperature - Maximum | 400°F |
| Operating Temperature - Minimum | -15°F |
| Outside Diameter - Nominal | 9/32" |
| Product Type | O-Ring |
| Properties | High Temperature, Resistant To Chemicals, Resistant To Oils, Resistant To Water, Resistant To Weather |
| System Of Measurement | Imperial |
| Temp. Range | -15°F to +400°F |
| X-ray Detectable | No |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Durometer | Metal Detectable | Color | Cross Section Shape | Material | Temp. Range | Dash Number | Actual Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PPT03304G | - | - | - | - | - | - | - | - | 1 | €93.40 | |
 |
PPTXG903G | - | - | - | - | - | - | - | - | 1 | €56.59 | |
 |
PPTXG923G | - | - | - | - | - | - | - | - | 2 | €57.92 | |
 |
PPTLS0708G | - | - | - | - | - | - | - | - | 1 | €46.47 | |
 |
PPTLS2218G | - | - | - | - | - | - | - | - | 1 | €93.02 | |
 |
PPTLS2223G | - | - | - | - | - | - | - | - | 1 | €69.34 | |
 |
PPTLS5014G | - | - | - | - | - | - | - | - | 1 | €46.47 |
