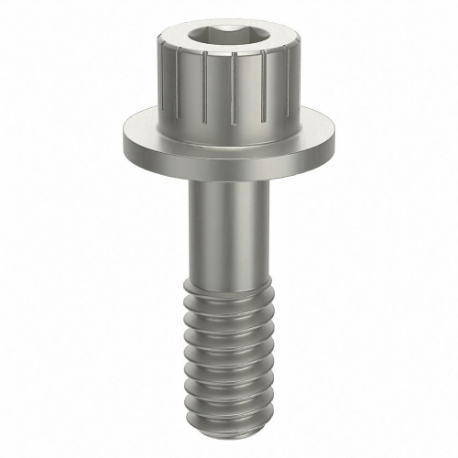

GRAINGER ZPS72014C06 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Flanged Std, 13/16 In Lg., Coarse, Pln, Alu
Item: CQ4WCJModel: ZPS72014C06Cross Ref: 45FZ23
7 In Stock
Ships within 2 days via
10.00% off
€48.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Not Graded Aluminum |
| Dimensional Standards | AMPG 2013 ZPS.01 |
| Display Qty | 1 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Plain |
| Flange Dia. | 9/16" |
| Flange Thickness | 0.063" |
| Grade | Non Graded |
| Head Dia. | 3/8" |
| Head Diameter | 0.375" |
| Head Height | 0.312" |
| Head Type | Flanged Standard |
| Length | 13/16" |
| Material | Aluminum |
| Material Grade/class | Ungraded |
| Material Type | Aluminum |
| Min. Thread Length | 7/16" |
| Screw Length | 13/16" |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Size | 1/4"-20 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
