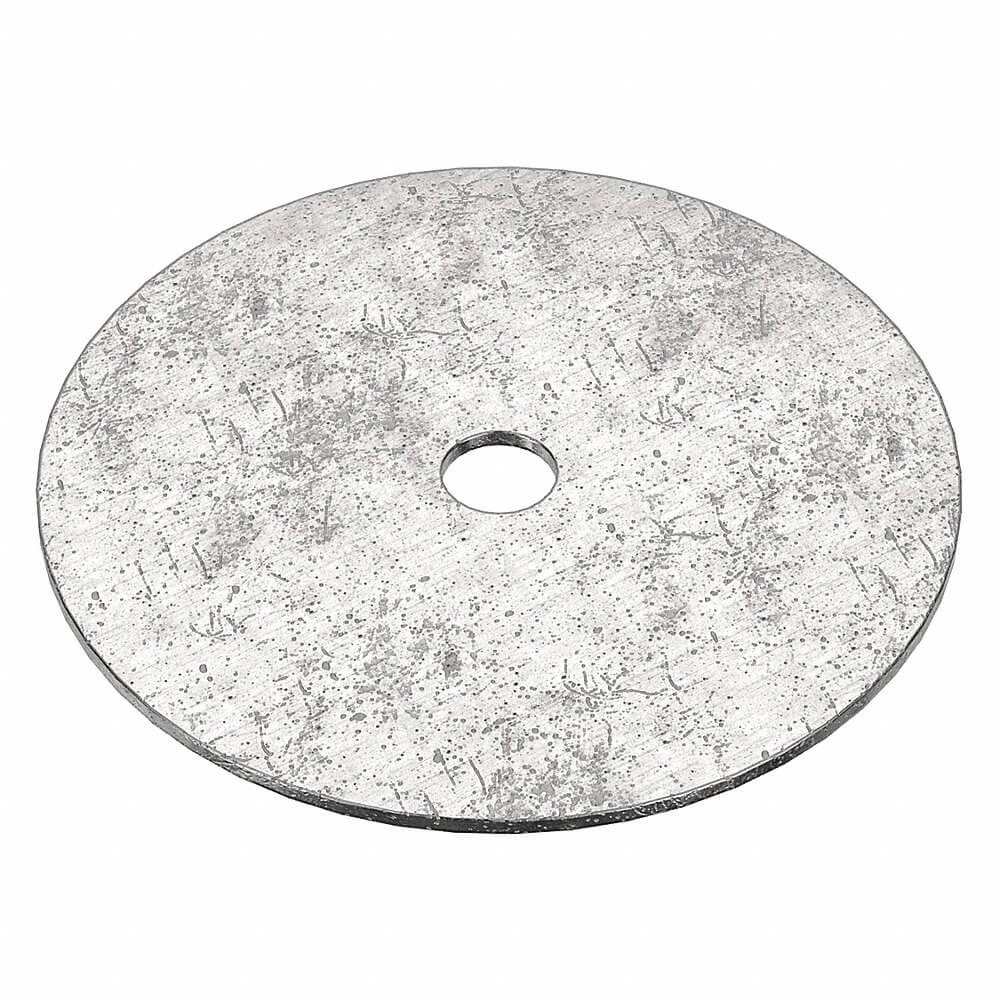

GRAINGER U55530.037.0300 Fender Washer, 3/8 In Fits Bolt Size, Oversized, 0.41 In I.D., 3 In O.D., -0.018 to +0.015 In Thk. Tol.
Item: AH6FEZModel: U55530.037.0300Cross Ref: 35YV28
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Approx. Pkg. Qty. | 50 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Plain |
| Fits Bolt Size | 3/8" |
| Flat Washer Type | Oversized |
| For Screw Size | 3/8" |
| Grade | Grade 316 |
| Inside Dia. | 0.41" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max. Temp. | 302°F |
| Max. Thickness | 2/25" |
| Min. Temp. | -58°F |
| Min. Thickness | 0.047" |
| Outside Dia. | 3" |
| Outside Dia. Tolerance | -0.008" to +0.029" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Tensile Strength | Not Applicable |
| Thickness | 0.065" |
| Thickness Tolerance | -0.018" to +0.015" |
| Washer Type | Oversized Washer |
| Washer Type | Fender Washer |
Shipping Info:
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Tensile Strength | Min. Thickness | Resistance Properties | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U55530.013.0001 | 0.156" | 9/16" | 0.047" | 0.047" | - | - | 0.047" | - | 50 | €3.50 | |
 |
U55530.018.0125 | 0.223" | 1 1/4" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €26.39 | |
 |
U55530.025.0001 | 9/32" | 1/2" | 0.047" | 0.047" | - | - | 0.047" | - | 50 | €3.30 | |
 |
U55530.025.0002 | 9/32" | 9/16" | 0.063" | 0.063" | - | - | 0.063" | - | 50 | €40.42 | |
 |
U55530.025.0087 | 0.285" | 7/8" | 0.063" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €12.51 | |
 |
U55530.025.0100 | 0.285" | 1" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €14.13 | |
 |
U55530.025.0125 | 0.285" | 1 1/4" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €26.11 |
