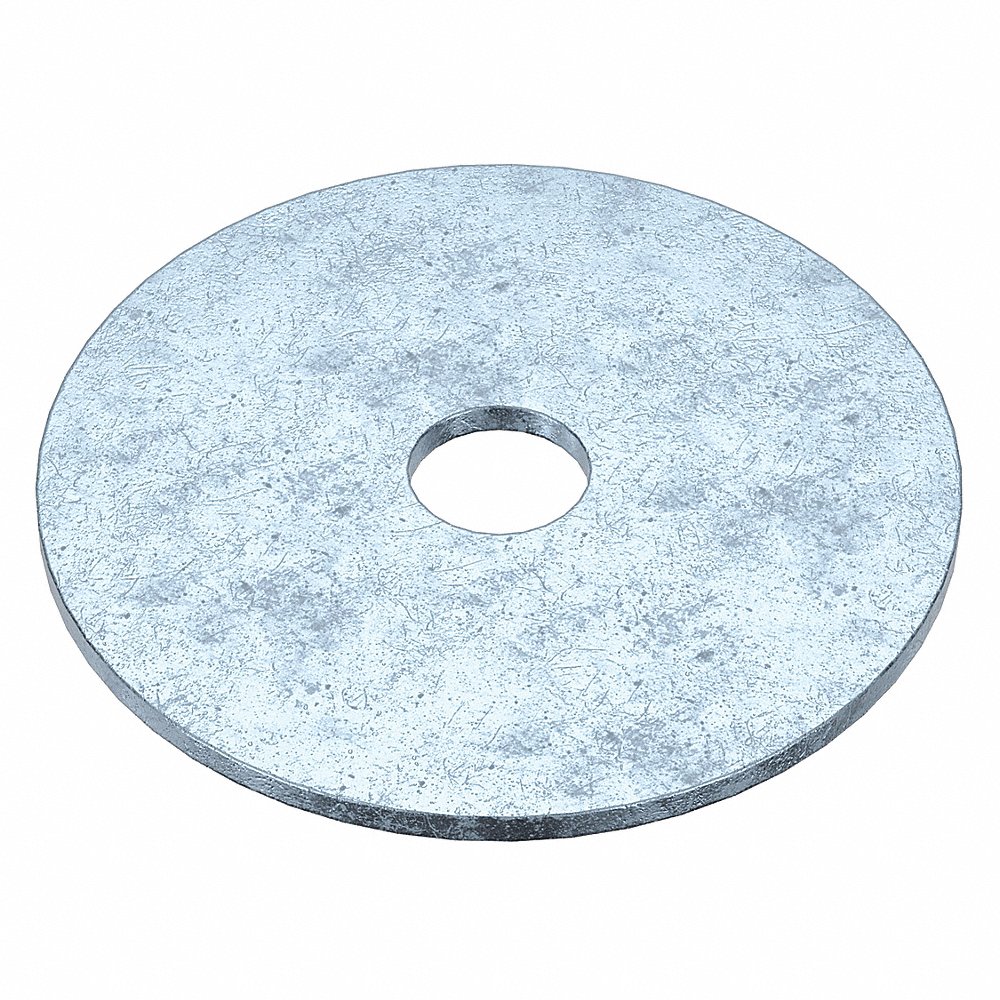

GRAINGER U38210.031.0175 Fender Washer, 5/16 In Fits Bolt Size, Oversized, 11/32 In I.D., Zn Plated, 1 3/4 In O.D.
Item: AG4YNZModel: U38210.031.0175Cross Ref: 35HV77
7 In Stock
Ships within 2 days via
5.00% off
€32.17 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Approx. Pkg. Qty. | 100 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Zinc Plated |
| Fits Bolt Size | 5/16" |
| Flat Washer Type | Oversized |
| For Screw Size | 5/16" |
| Inside Dia. | 0.344" , 11/32" |
| Inside Dia. Tolerance | 0.338" to 0.358" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.065" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.065" |
| Outside Dia. | 1 3/4" |
| Outside Dia. Tolerance | 1742" to 1779" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thickness | 0.065" |
| Thickness Tolerance | +0.047" to +0.08" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 17.2 |
| Ship length (cm) | 23.6 |
| Ship width (cm) | 2.54 |
| HS code | 7318220000 |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Min. Thickness | Max. Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP7 | 7/32" | 3/4" | 0.075" | 0.073" | +0.029" | Rockwell B40 | 0.075" | - | 100 | €55.80 | |
 |
U38130.043.0001 | 1/2" | 1 1/4" | 0.083" | 0.083" | 0.064" to 0.104" | - | 0.083" | 350°C | 50 | €11.33 | |
 |
U38130.050.0001 | 0.563" | 1 3/8" | 0.109" | 0.109" | 0.086" to 0.132" | - | 0.109" | 350°C | 50 | €13.07 | |
 |
U38130.056.0001 | 5/8" | 1 15/32" | 0.109" | 0.109" | 0.086" to 0.132" | - | 0.109" | 350°C | 25 | €9.08 | |
 |
U38130.062.0001 | 11/16" | 1 3/4" | 0.134" | 0.134" | 0.108" to 0.16" | - | 0.134" | 350°C | 25 | €10.49 | |
 |
U38130.087.0001 | 15/16" | 2 1/4" | 0.156" | 0.165" | 0.136" to 0.192" | - | 0.165" | 350°C | 10 | €11.42 | |
 |
U38130.100.0001 | 1.063" | 2 1/2" | 0.156" | 0.165" | 0.136" to 0.192" | - | 0.165" | 350°C | 5 | €7.69 |
