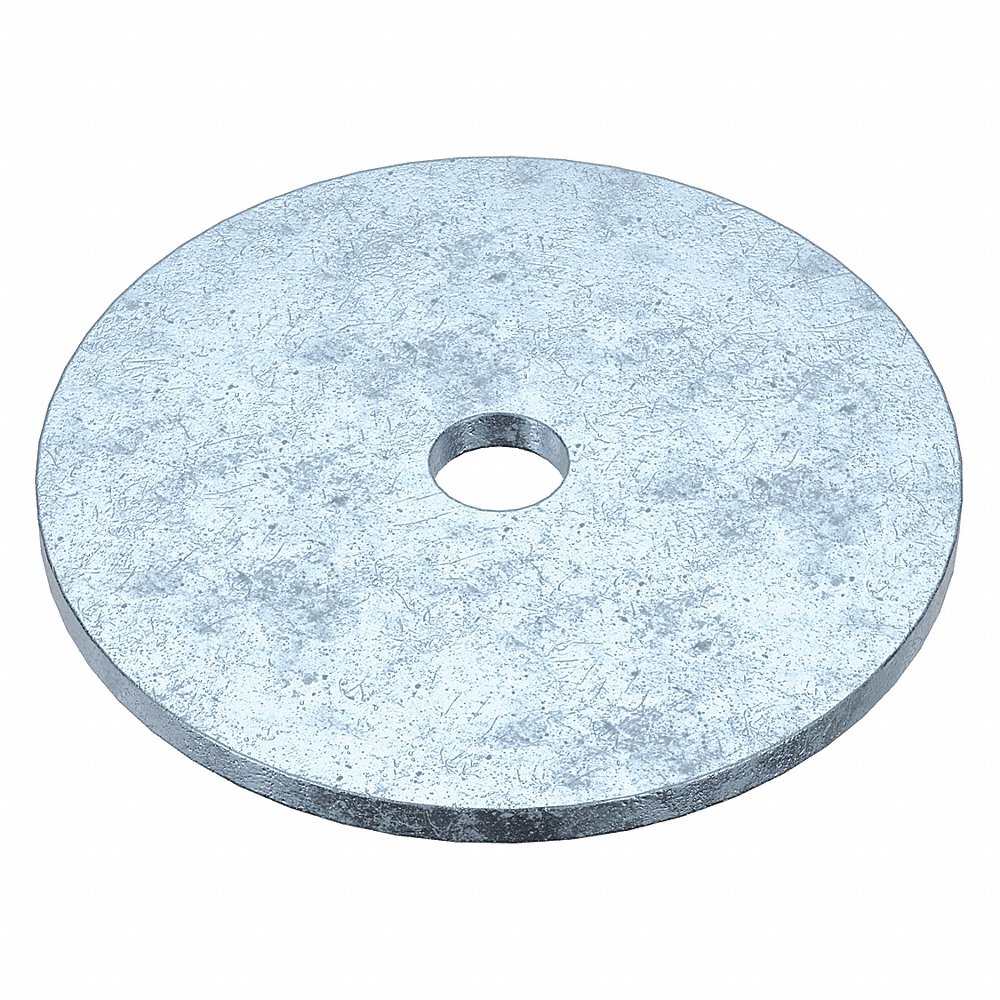

GRAINGER U38210.018.0125 Flat Washer, 3/16 In Fits Bolt Size, Oversized, 3/16 In I.D., 0.065 In Thk.
Item: CD3FRFModel: U38210.018.0125Cross Ref: 53GK10
7 In Stock
Ships within 2 days via
10.00% off
€18.22 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Approx. Pkg. Qty. | 100 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 3/16" |
| Flat Washer Type | Oversized |
| For Screw Size | 3/16" |
| Inside Dia. | 3/16" |
| Inside Diameter | 0.188" |
| Inside Diameter Tolerance | 0.213" to 0.233" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.065" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.065" |
| Outside Dia. | 1 1/4" |
| Outside Diameter Tolerance | 1242" to 1279" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| Standard | ASME B18.21.1 |
| System Of Measurement | Imperial |
| Thickness | 0.065" |
| Thickness Tolerance | +0.047" to +0.08" |
| Washer Type | Oversized Washer |
| Washer Type | Fender Washer |
Shipping Info:
| Ship weight (kg) | 0.87 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP5 | 5/16" | 11/32" | 2" | 0.051" | +0.029" | Rockwell B40 | - | - | 50 | €36.92 | |
 |
U38130.043.0001 | 7/16" | 1/2" | 1 1/4" | 0.083" | 0.064" to 0.104" | - | - | - | 50 | €11.79 | |
 |
U38130.050.0001 | 1/2" | 0.563" | 1 3/8" | 0.109" | 0.086" to 0.132" | - | - | - | 50 | €13.62 | |
 |
U38130.056.0001 | 9/16" | 5/8" | 1 15/32" | 0.109" | 0.086" to 0.132" | - | - | - | 25 | €9.47 | |
 |
U38130.062.0001 | 5/8" | 11/16" | 1 3/4" | 0.134" | 0.108" to 0.16" | - | - | - | 25 | €10.95 | |
 |
U38130.087.0001 | 7/8" | 15/16" | 2 1/4" | 0.156" | 0.136" to 0.192" | - | - | - | 10 | €11.89 | |
 |
U38130.100.0001 | 1" | 1.063" | 2 1/2" | 0.156" | 0.136" to 0.192" | - | - | - | 5 | €8.02 |
