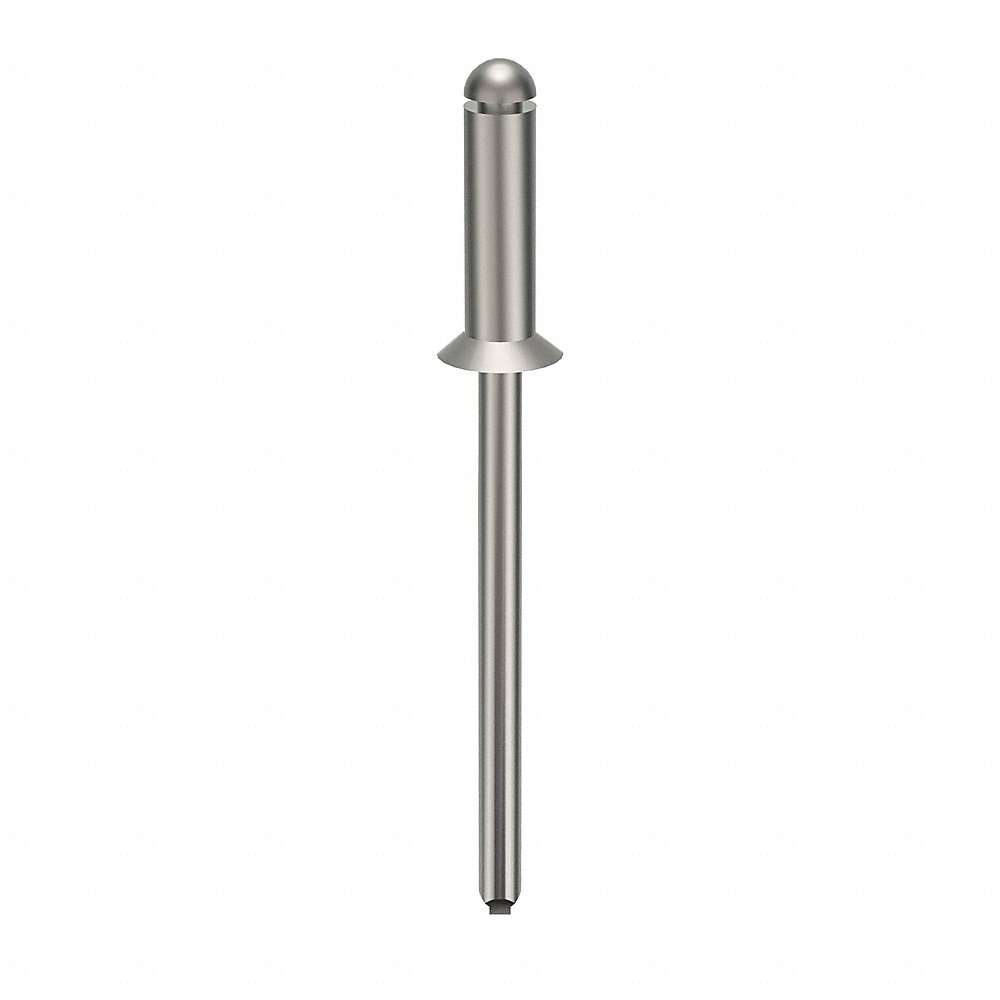

GRAINGER U34184.012.0044 Blind Rivet, 1/8 In Rivet Dia., SS, 2/5 In Rivet Lg., 1/25 In Head Ht.
Item: AG2WUGModel: U34184.012.0044Cross Ref: 32MM56
7 In Stock
Ships within 2 days via
5.00% off
€50.98 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 13/32" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Stainless Steel |
| Color | Gray |
| Drill Size | #30 |
| Finish | Plain |
| Grip Range | 0.188" to 1/4" |
| Head Angle | 120° |
| Head Dia. | 0.207" to 0.233" , 7/32" |
| Head Dia. Tolerance | -0.012" to +0.012" |
| Head Height | 1/25" |
| Head Style | Countersunk |
| Head Type | Countersunk |
| Hole Size | 0.129" to 0.133" |
| Ifi Grade | Grade IFI-114-51 |
| Mandrel Material | Stainless Steel |
| Max. Hole Dia. | 0.133" |
| Max. Material Thickness | 1/4" |
| Min. Hole Dia. | 0.129" |
| Min. Material Thickness | 3/16" |
| Overall Length | 1 1/2" |
| Product Type | Blind Rivet |
| Rivet Dia. | 1/8" |
| Rivet Length | 2/5" |
| Rivet Material | Stainless Steel |
| Rivet Number | 44 |
| Rivet Type | Open End |
| Shank Dia. | 0.125" |
| Shear Strength | 420 lbs. |
| Single Shear Strength | 420 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 530 lbs. |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308203000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Rivet Number | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK41-44BS201 | 3/8" | 15/64" | Aluminum | Steel | Grade 5052 | 305 lbs. | 325 lbs. | - | 500 | €66.11 | |
 |
AK42ABS201 | 1/4" | 7/32" | Aluminum | Aluminum | Grade 5052 | 155 lbs. | 235 lbs. | - | 500 | €31.82 | |
 |
AK42BS201 | 1/4" | 7/32" | Aluminum | Steel | Grade 5056 | 155 lbs. | 325 lbs. | - | 500 | €26.71 | |
 |
AK43ABS201 | 5/16" | 7/32" | Aluminum | Aluminum | Grade 5052 | 155 lbs. | 235 lbs. | - | 500 | €34.87 | |
 |
AK43BS201 | 5/16" | 7/32" | Aluminum | Steel | Grade 5056 | 155 lbs. | 325 lbs. | - | 500 | €42.89 | |
 |
AK44ABS201 | 3/8" | 7/32" | Aluminum | Aluminum | Grade 5052 | 155 lbs. | 235 lbs. | - | 500 | €20.30 | |
 |
AK44BS201 | 3/8" | 0.22" | Aluminum | Steel | Grade 5056 | 155 lbs. | 235 lbs. | - | 500 | €41.11 |
