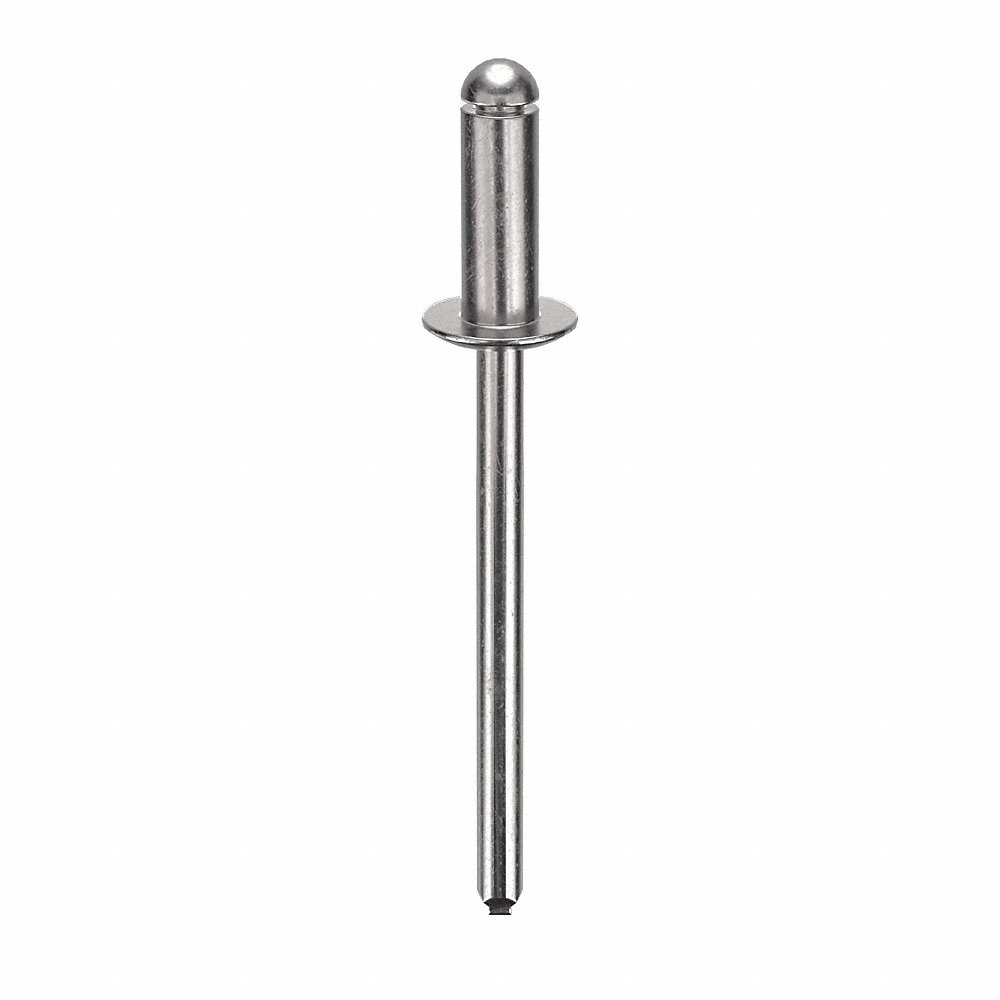

GRAINGER U34142.015.0054 Blind Rivet, 5/32 In Rivet Dia., SS, 0.425 In Rivet Lg.
Item: AG2WREModel: U34142.015.0054Cross Ref: 32ML88
7 In Stock
Ships within 2 days via
10.00% off
€70.79 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Open End |
| Body Length | 27/64" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Stainless Steel |
| Color | Gray |
| Drill Size | #20 |
| Finish | Plain |
| Grip Range | 0.188" to 1/4" |
| Head Angle | 90° |
| Head Dia. | 0.296" to 0.328" |
| Head Diameter | 5/16" |
| Head Diameter Tolerance | -0.016" to +0.016" |
| Head Height | 0.05" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.16" to 0.164" |
| Ifi Grade | Grade IFI-114-50 |
| Mandrel Material | Steel |
| Maximum Hole Diameter | 0.164" |
| Maximum Material Thickness | 1/4" |
| Minimum Hole Diameter | 4/25" |
| Minimum Material Thickness | 3/16" |
| Overall Length | 1 23/32" |
| Product Type | Blind Rivet |
| Rivet Dia. | 5/32" |
| Rivet Length | 0.425" |
| Rivet Material | Stainless Steel |
| Rivet Number | 54 |
| Rivet Type | Open End |
| Shank Diameter | 0.156" |
| Shear Strength | 650 lbs. |
| Single Shear Strength | 650 lbs. |
| Standards | Ifi 114 |
| System Of Measurement | Imperial |
| Tensile Strength | 820 lbs. |
Shipping Info:
| Ship weight (kg) | 1.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308203000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD52-54BS201 | 2/5" | 5/16" | Aluminum | Steel | Grade 5052 | 250 lbs. | 360 lbs. | #20 | 500 | €81.62 | |
 |
AD52ABS201 | 0.275" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €44.25 | |
 |
Ad52BS201 | 0.275" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €52.11 | |
 |
AD53ABS201 | 0.338" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €42.60 | |
 |
AD53BS201 | 0.338" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €50.49 | |
 |
AD54ABS201 | 2/5" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €40.09 | |
 |
AD54BS201 | 2/5" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €50.53 |
