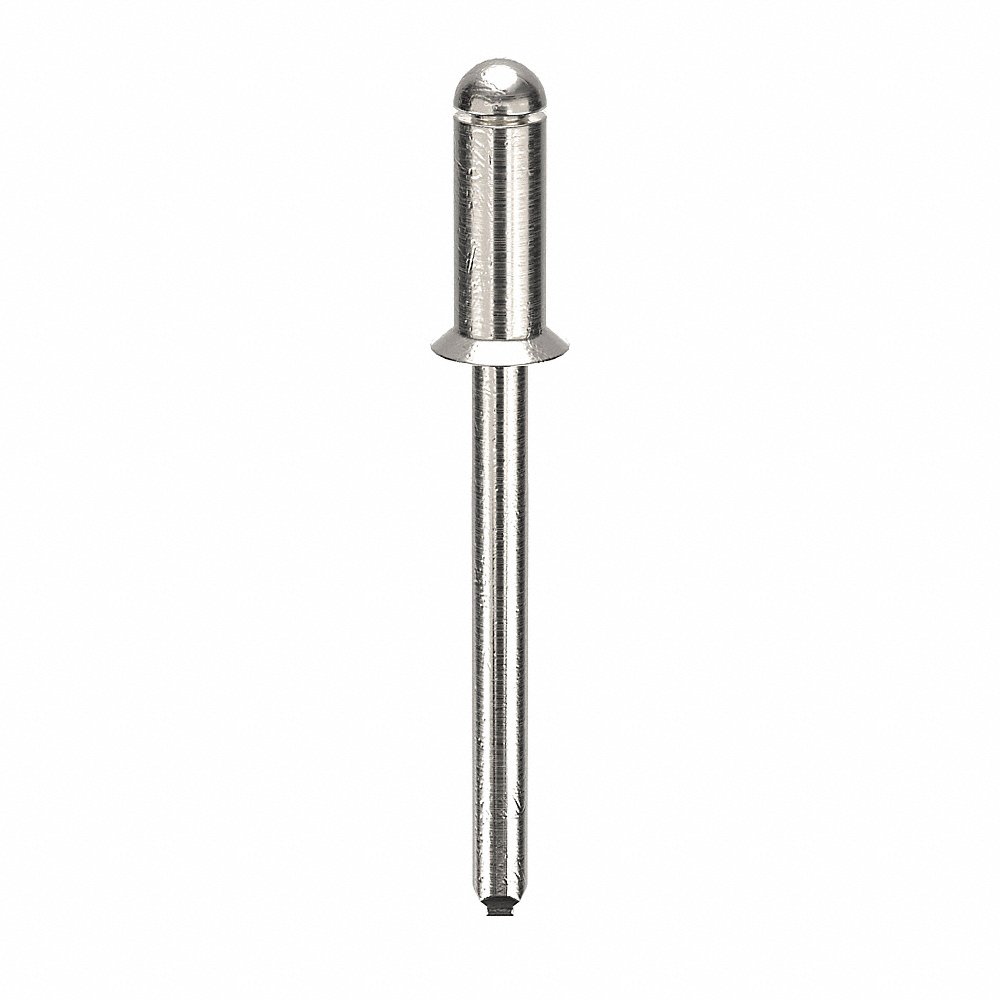

GRAINGER U34128.018.6264 Blind Rivet Multigrip, 3/16 In Rivet Dia., Alu, 7/16 In Rivet Lg., 1/25 In Head Ht.
Item: AG2XABModel: U34128.018.6264Cross Ref: 32MP60
7 In Stock
Ships within 2 days via
5.00% off
€20.07 /pkg. of 250
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet Multigrip |
| Blind Rivet Type | Multigrip Open End |
| Body Length | 7/16" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | #20 |
| Finish | Plain |
| Grade | Grade 5052 |
| Grip Range | 0.441" to 0.63" |
| Head Angle | 120° |
| Head Dia. | 0.268" to 0.294" , 9/32" |
| Head Dia. Tolerance | -0.019" to +0.019" |
| Head Height | 1/25" |
| Head Style | Countersunk |
| Head Type | Countersunk |
| Hole Size | 0.16" to 0.164" |
| Ifi Grade | Grade IFI-116-19 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.164" |
| Max. Material Thickness | 5/8" |
| Min. Hole Dia. | 4/25" |
| Min. Material Thickness | 7/16" |
| Overall Length | 1 47/64" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 7/16" |
| Rivet Material | Aluminum |
| Rivet Number | 62 |
| Rivet Type | Open End |
| Shank Dia. | 0.188" |
| Shear Strength | 224 lbs. |
| Single Shear Strength | 224 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 359 lbs. |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK66-68BS200 | 0.716" | 3/8" | Aluminum | Steel | Grade 5052 | 350 lbs. | 505 lbs. | #11 | 250 | €80.27 | |
 |
U33192.018.0063 | 0.387" | 11/32" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €26.20 | |
 |
U33192.018.0064 | 0.45" | 0.335" to 0.361" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €20.17 | |
 |
U33192.018.0066 | 0.575" | 11/32" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €22.91 | |
 |
U33192.018.0068 | 0.7" | 11/32" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €18.28 | |
 |
U33192.018.0610 | 0.825" | 11/32" | Aluminum | Aluminum | Grade 5052 | 260 lbs. | 320 lbs. | #11 | 250 | €51.71 | |
 |
U34120.018.0063 | 0.387" | 11/32" | Aluminum | Steel | Grade 5056 | 380 lbs. | 500 lbs. | #11 | 250 | €30.28 |
