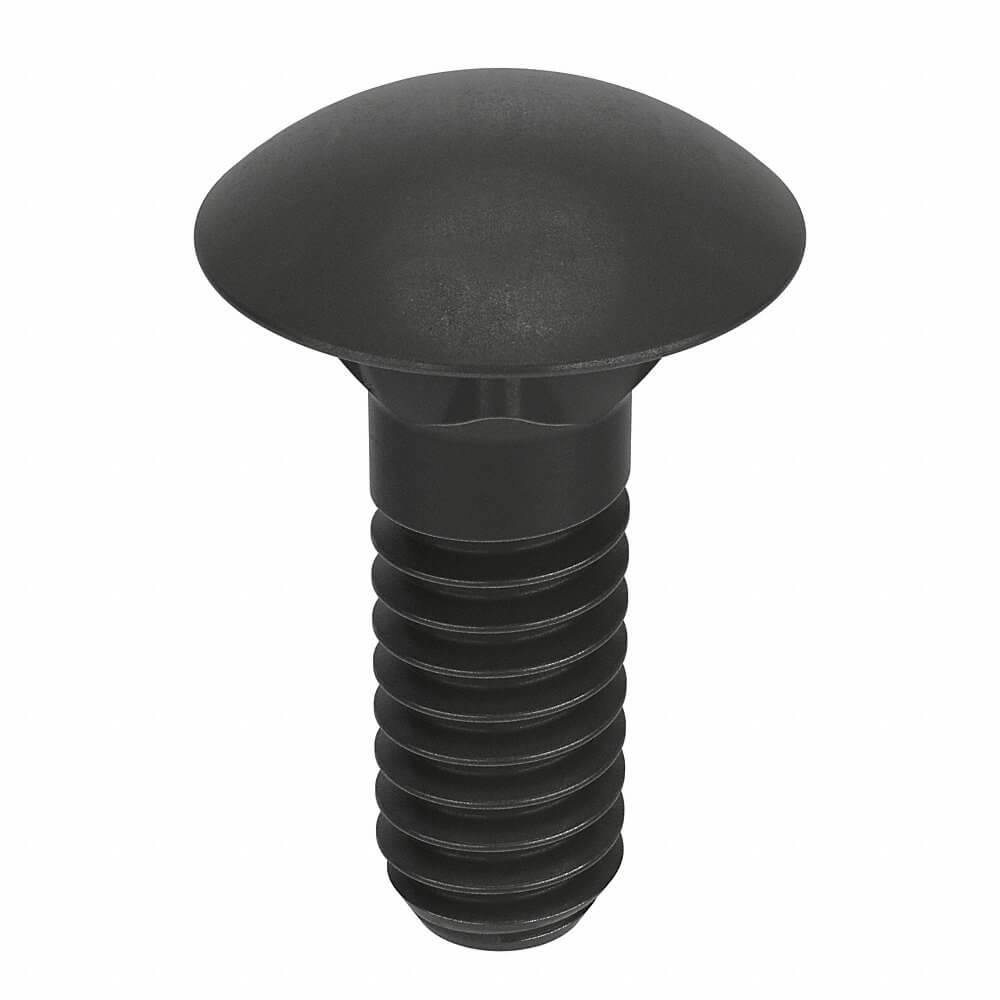

GRAINGER U08300.025.0050 Carriage Bolt, 1/4 In - 20 Thread Size, Steel, 1/2 In Lg., Blk Oxide, Gr. 2, Coarse
Item: AG2FDBModel: U08300.025.0050Cross Ref: 31HZ22
7 In Stock
Ships within 2 days via
5.00% off
€22.56 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carriage Bolt |
| Class | Not Applicable |
| Dimensional Standards | ASME B18.5 |
| Fastener Length | 1/2" |
| Finish | Black Oxide |
| Grade | Grade 2 |
| Head Dia. | 9/16" |
| Head Height | 9/64" |
| Head Style | Round |
| Head Width | 37/64" |
| Length | 1/2" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1/2" |
| Neck Height | 9/64" |
| Neck Type | Square |
| Neck Width | 1/4" |
| Square Height | 9/64" |
| System Of Measurement | Imperial |
| Tensile Strength | 74000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1/2" |
| Thread Size | 1/4"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 7318152055 |
Product Details:
- Neck Type (Square Neck)
Product Variants
| Product | Model | Thread Length | Min. Thread Length | Thread Style | Head Style | Neck Width | Head Dia. | Square Height | Tensile Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U08300.025.0075 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 100 | €6.00 | |
|
U08300.025.0100 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 100 | €10.99 | |
 |
U08300.025.0150 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 100 | €9.81 | |
 |
U08300.025.0200 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 100 | €10.10 | |
|
U08300.025.0250 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 100 | €13.66 | |
 |
U08300.025.0300 | 3/4" | 3" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 50 | €28.27 | |
|
U08300.025.0350 | 3/4" | 3/4" | Fully Threaded | Round | 1/4" | 9/16" | 9/64" | 74000 psi | 50 | €32.51 |
