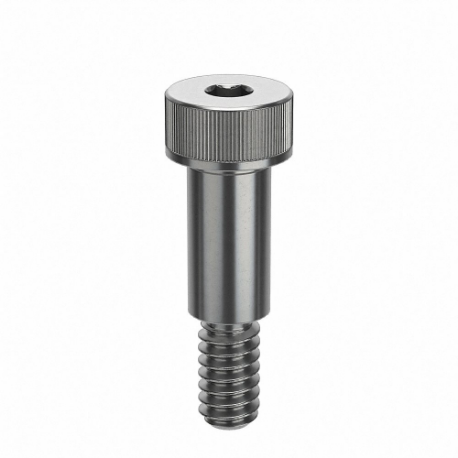

GRAINGER STR61614C08 Shoulder Screw, 10-24 Thread Size, 1/2 In Shoulder Lg., 3/16 In Head Ht., Gr. 316H5
Item: CQ4MNQModel: STR61614C08Cross Ref: 420D70
7 In Stock
Ships within 2 days via
10.00% off
€92.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | ANSI/ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 1/8" |
| Drive Type | Hex |
| Finish | Plain |
| Grade | Grade 316H5 |
| Hardness | Rockwell BHN250 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | Grade 316 H5 |
| Precision Screw | No |
| Rockwell Hardness | Bhn250 |
| Shear Strength | 65000 psi |
| Shoulder Dia. | 1/4" |
| Shoulder Dia. Tolerance | -0.004" to 0" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 1/2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 130000 psi |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Size | #10-24 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
