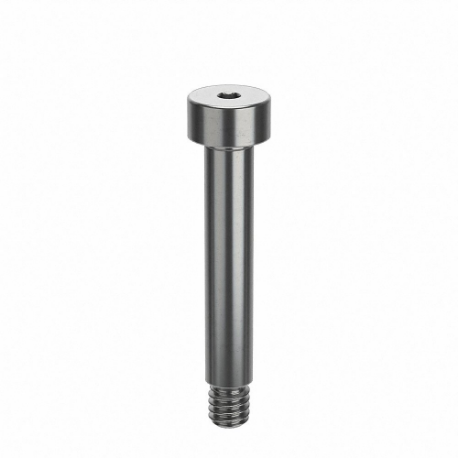

GRAINGER STR40231C16HUL Shoulder Screw, 8-32 Thread Size, 1 In Shoulder Lg., 3/64 In Head Ht., 5/16 In Head Dia.
Item: CQ4NPBModel: STR40231C16HULCross Ref: 45GD71
7 In Stock
Ships within 2 days via
10.00% off
€31.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | AMPG 2013 ZS.08 |
| Display Qty | 1 |
| Drive Size | 3/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Head Dia. | 5/16" |
| Head Height | 3/64" |
| Head Texture | Smooth |
| Head Type | Low Profile Standard |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Precision Screw | No |
| Shoulder Dia. | 3/16" |
| Shoulder Dia. Tolerance | -0.001" to 0" |
| Shoulder Diameter Tolerance | 0.001" to 0" |
| Shoulder Length | 1" |
| Shoulder Length Tolerance | 0" to 0.002" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 2A |
| Thread Length | 3/16" |
| Thread Size | #8-32 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
