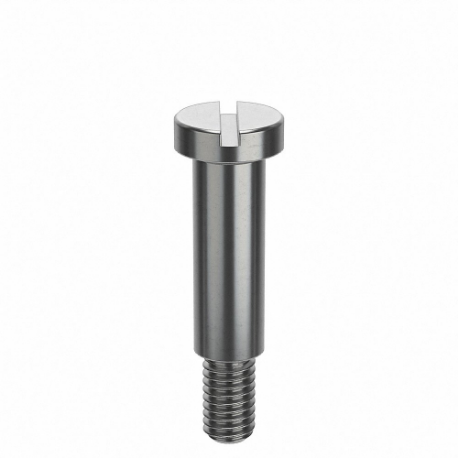

GRAINGER STR401M8X30 Shoulder Screw, M6x1 Thread Size, 30 mm Shoulder Lg., 3.5 mm Head Ht., Gr. 18-8
Item: CQ4NNVModel: STR401M8X30Cross Ref: 45GA55
7 In Stock
Ships within 2 days via
10.00% off
€38.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | AMPG 2013 LP.02 |
| Display Qty | 1 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Dia. | 12 mm |
| Head Height | 3.5 mm |
| Head Texture | Smooth |
| Head Type | Low Profile Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Precision Screw | No |
| Shoulder Dia. | 8 mm |
| Shoulder Dia. Tolerance | -0.025 mm to 0 mm |
| Shoulder Length | 30 mm |
| Shoulder Length Tolerance | -0 mm to +0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | Not Rated |
| Thread Fit | 6G |
| Thread Length | 11 mm |
| Thread Pitch | 1 mm |
| Thread Size | M6 x 1 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
