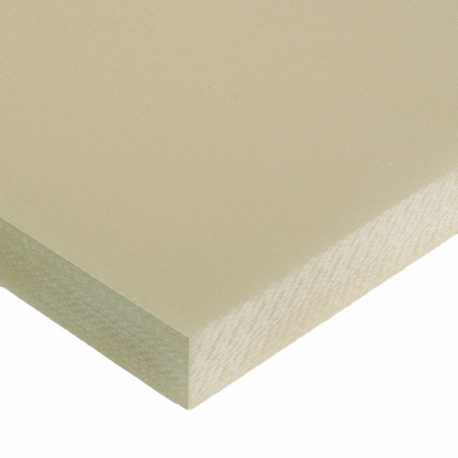

GRAINGER SFR4NA.062X36.000X48.000 Fiberglass Epoxy Laminate Sheet, 36 Inch x 4 ft Nominal Size, 31/500 Inch Thick
Item: CP9KKJModel: SFR4NA.062X36.000X48.000Cross Ref: 804G66
7 In Stock
Ships within 2 days via
10.00% off
€167.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sheet |
| Clarity | Opaque |
| Color | Green |
| Corrosion And Chemical Resistance | Excellent |
| Grade | Grade G-10/FR4 |
| Hardness | Rockwell M110 |
| Hardness Rating | Extra Hard |
| Impact Strength | 7 lbs.-ft./in. |
| Length | 4 ft. |
| Machinability | Good |
| Material | Fiberglass Epoxy Laminate |
| Maximum Temperature | 285°F |
| Min. Temp. | -58°F |
| Nominal Size | 36" x 4 ft. |
| Nominal Size (wxl) | 36" x 4 ft. |
| Overall Length | 4 ft. |
| Overall Width | 36" |
| Standards | Mil-I-24768/27 (Gef) |
| Temp. Range | -58°F to +285°F |
| Tensile Strength | 40000 psi |
| Tensile Strength Rating | Good |
| Thickness | 0.062" |
| Thickness Tolerance | -0.0075 to +0.0075 |
| Water Absorption | 0.25% |
| Water Absorption Rating | Poor |
| Width | 36" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Tensile Strength Rating | Color | Grade | Thickness | Min. Temp. | Max. Temp. | Hardness | Tensile Strength | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SCANNA1.000X48.000X96.000C | Good | Beige | Grade C | 1" | -418°F | 257°F | Rockwell M105 | 9700 psi | €3,683.19 | |
| SCANNA.500X48.000X96.000C | Good | Beige | Grade C | 1/2" | -418°F | 257°F | Rockwell M105 | 9700 psi | €1,841.60 | |
| SCANNA.250X48.000X96.000C | Good | Beige | Grade C | 1/4" | -418°F | 257°F | Rockwell M105 | 9700 psi | €920.80 | |
| SCANNA.125X48.000X96.000C | Good | Beige | Grade C | 1/8" | -418°F | 257°F | Rockwell M105 | 9700 psi | €485.24 | |
| SCANNA.187X48.000X96.000C | Good | Beige | Grade C | 0.187" | -418°F | 257°F | Rockwell M105 | 9700 psi | €727.45 | |
| SCANNA.750X48.000X96.000C | Good | Beige | Grade C | 3/4" | -418°F | 257°F | Rockwell M105 | 9700 psi | €2,762.40 | |
| SCANNA.375X48.000X96.000C | Good | Beige | Grade C | 3/8" | -418°F | 257°F | Rockwell M105 | 9700 psi | €1,381.20 |
