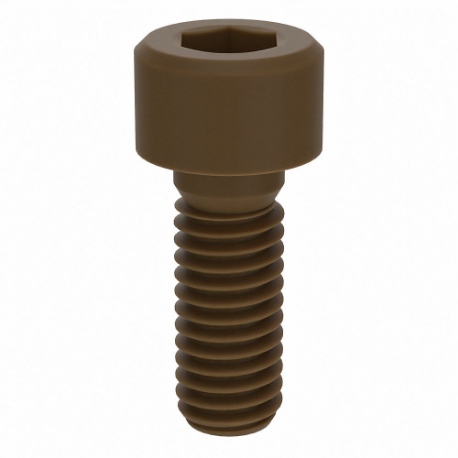

GRAINGER PKM6100-16PHP-01 Socket Head Cap Screw, M6x1 Thread Size, Std, 16 mm Lg., 3.3 mm Head Ht.
Item: CQ4XDQModel: PKM6100-16PHP-01Cross Ref: 447F83
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Not Graded Glass Filled Peek |
| Dimensional Standards | Asme B18.3.1M, Din 912, Iso 4762 |
| Display Qty | 10 |
| Drive Size | 5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Non Graded |
| Head Dia. | 10 mm |
| Head Height | 3.3 mm |
| Head Type | Standard |
| Length | 16 mm |
| Material | Glass Filled PEEK |
| Material Grade/class | Ungraded |
| Material Type | Plastic |
| Max. Temp. | 500°F |
| Min. Temp. | -50°F |
| Min. Thread Length | 16 mm |
| Screw Length | 16 mm |
| System Of Measurement | Metric |
| Tensile Strength | 26800 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Size | M6 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
