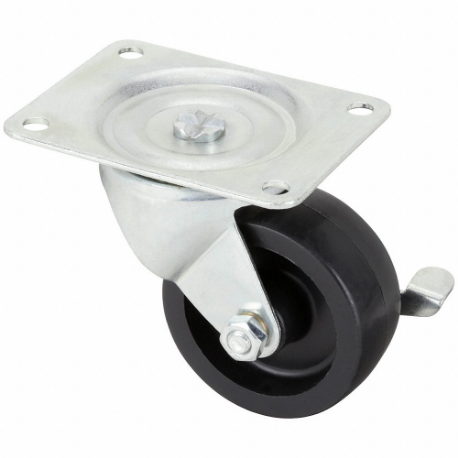

GRAINGER P2S-PB030G-P-SB Standard Plate Caster, 3 Inch Dia, 3 13/16 Inch Height, Swivel
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€22.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Bakery Racks, Furniture Dollies, Laundry Carts |
| Brake Location | Side |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Side Brake |
| Caster Features | Corrosion-Resistant, Maintenance Free |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Core Color | Black |
| Duty Rating | Light Duty |
| For Axle Diameter | 5/16" |
| For Surface Type | Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood |
| Frame Finish | Zinc Plated |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 3/8" x 3 3/8" |
| Inside Slot Spacing - Length | 3 3/8" |
| Inside Slot Spacing - Width | 2.375" |
| Load Capacity | 210 lbs. |
| Load Rating | 210 lbs. |
| Mounting Bolt Dia. | 0.312" |
| Mounting Bolt Diameter | 5/16" |
| Mounting Height | 3 13/16" |
| Mounting Hole Type | Slot |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Length | 3 1/8" |
| Mounting Plate Shape | Rectangle |
| Mounting Plate Size | 3 1/8" x 4 1/8" |
| Mounting Plate Thickness | 3/32" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 3/8" x 3 7/16" |
| Outside Slot Spacing - Length | 3.438" |
| Outside Slot Spacing - Width | 2.375" |
| Overall Wheel Width | 1 1/4" |
| Standards | Ansi Icwm |
| Swivel Construction | Kingspin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2 7/8" |
| Tread Material | Polypropylene |
| Tread Material, Wheel Material | Polypropylene |
| Tread Shape | Standard |
| Unit Of Measurement | Imperial |
| Wheel Bearing Type | Plain |
| Wheel Core Material | Polyolefin |
| Wheel Core Type | Solid |
| Wheel Diameter | 3" |
| Wheel Hardness | Soft, Hard |
| Wheel Hardness Rating | 60 Shore D |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 65 Shore D |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Outside Bolt Hole Spacing | Mounting Plate Size | Inside Bolt Hole Spacing | Wheel Width | Load Rating | Mounting Plate Bolt Hole Pattern | Wheel Bearing Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P12RX-PRP050B-12 | Rigid | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €83.27 | |
 |
P12SX-PRP050K-12 | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €176.21 | |
 |
P12SX-PRP060K-12-WB | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €91.29 | |
 |
P12SX-PRP060K-12 | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1.75" x 2.812" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €84.15 | |
 |
LEX-POEV 80XR-SG | Swivel | 2 3/8" x 3 5/32" | 3 3/8" x 3 15/16" | 2 3/8" x 3 5/32" | 1 1/4" | 305 lbs. | D | Roller | 1 | €80.61 | |
 |
LEX-PO 80XR-FI | Swivel | 2 3/8" x 3 5/32" | 3 3/8" x 3 15/16" | 2 3/8" x 3 5/32" | 1 1/4" | 330 lbs. | D | Roller | 1 | €99.91 | |
 |
LEX-POEV 80XR-FI-SG | Swivel | 2 3/8" x 3 5/32" | 3.375" x 3.938" | 2.375" x 3.156" | 1 1/4" | 305 lbs. | D | Roller | 1 | €106.83 |
