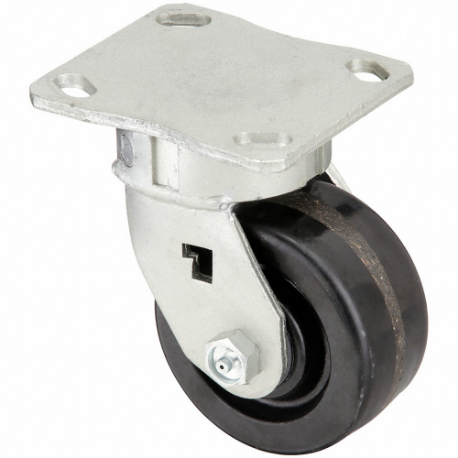

GRAINGER P25S-PH040R-14 Kingpinless Plate Caster, 4 Inch Dia, 5 5/8 Inch Height
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€82.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Features | Floor Protective |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 800 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 5 5/8" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4.5" x 4" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Replacement Wheel | P-PH-040X020/050R |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 3 3/16" |
| Tread Material, Wheel Material | Phenolic |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 2.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Mounting Plate Size | Load Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P27RX-NMB060K-16 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3" | Precision Ball | 4 1/2" x 6 1/4" | 3000 lbs. | €381.90 | |
 |
P27SX-NMB060K-16 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3" | Precision Ball | 4 1/2" x 6 1/4" | 3000 lbs. | €547.16 | |
 |
P27RX-N080K-16 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3" | Precision Ball | 4 1/2" x 6 1/4" | 3000 lbs. | €317.19 | |
 |
CDP-G-97 | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3" | 2" | Precision Ball | 4.5" x 4" | 750 lbs. | €140.75 | |
 |
P25S-ALB 200K-16-H10-01 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Precision Ball | 4 1/2" x 6 1/4" | 1400 lbs. | €252.75 | |
 |
P27S-UY100NK-16 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3 1/2" | Precision Ball | 4 1/2" x 6 1/4" | 3000 lbs. | €318.04 | |
 |
P27S-D100R-18 | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Roller | 5 1/4" x 7 1/4" | 5400 lbs. | €516.24 |
