GRAINGER P21S-PH080R-14 Standard Plate Caster, Swivel, Phenolic, 1250 lb, 8 Inch Wheel Diameter
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€59.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Esd Conductive | No |
| Features | Low Rolling Resistance |
| For Axle Dia. | 1/2" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Stamped |
| Frame Finish | Zinc Plated |
| Hub Length | 2 3/16" |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1250 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Mounting Plate Thickness | 1/4" |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temperature Range | -20°F to +250°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Wheel Width | 2" |
| Replacement Wheel | 489D68 |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingpin |
| Swivel Lead | 2 1/4" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 6 1/2" |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Dia. | 8" |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 3.06 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Load Rating | Caster Brake Type | Mounting Height | Mounting Plate Size | Mounting Plate Bolt Hole Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
55KJ67 | 3" x 3" | 2 5/8" x 3 5/8" | 2" | 600 lbs. | Total Lock Brake | - | 4" x 4 1/2" | - | €41.26 | |
 |

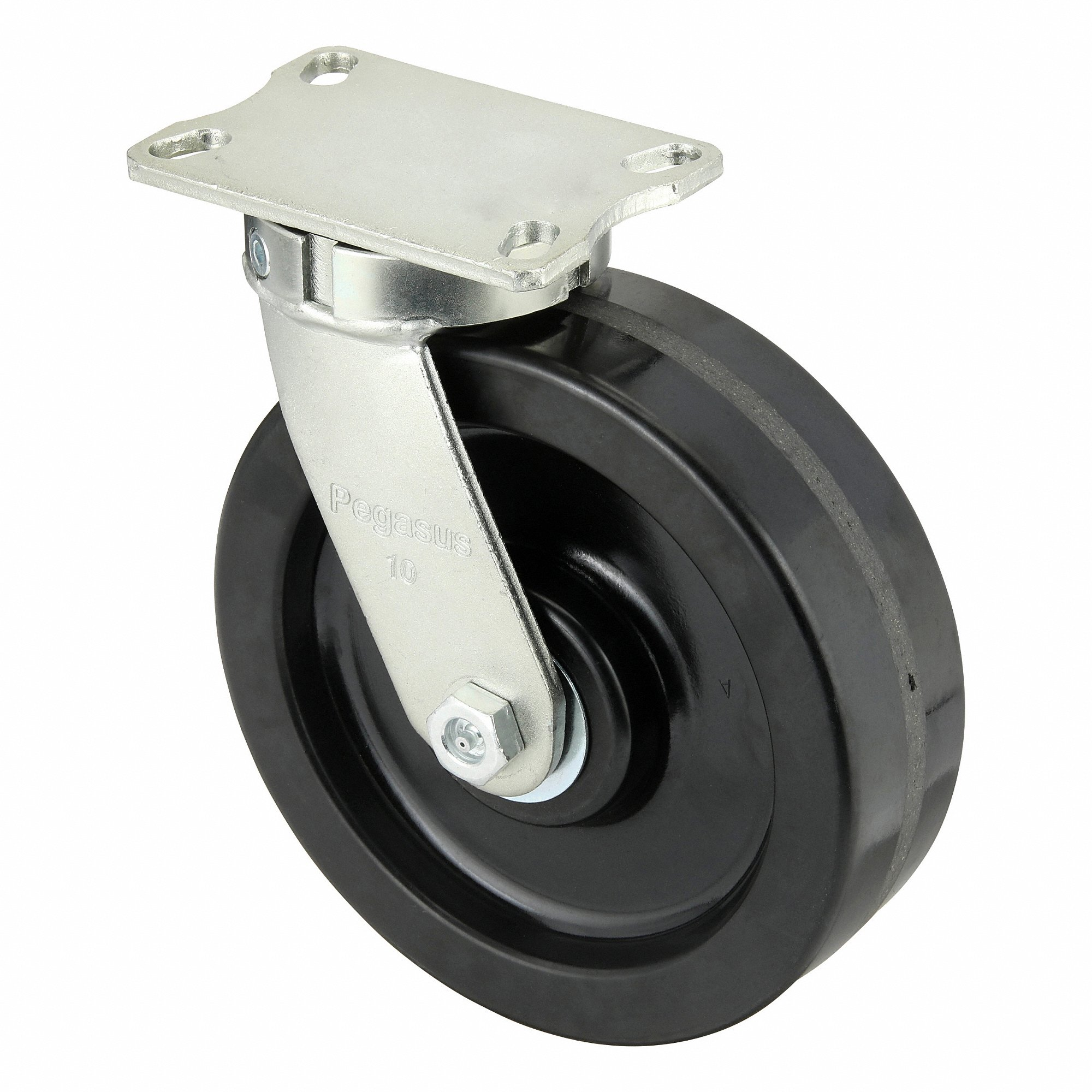

P27S-PH100R-16 | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3" | 2900 lbs. | No Brake Included | 11 1/2" | 4 1/2" x 6 1/4" | A | €140.24 | |
 |
P27S-PH080R-16 | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 3" | 2500 lbs. | No Brake Included | 10 1/8" | 4 1/2" x 6 1/4" | A | €109.49 | |
 |
493W80 | 1.75" x 3" | 2 3/8" x 3 3/8" | 1 1/4" | 225 lbs. | No Brake Included | 3 3/4" | 3 1/8" x 4 1/8" | A | €14.95 | |
 |
P21S-PH060R-14 | 2 5/8" x 3 5/8" | 3" x 3" | 2" | 1200 lbs. | No Brake Included | 7 1/2" | 4" x 4 1/2" | B | €29.77 | |
 |
P21S-PH060R-14-CB | 2 5/8" x 3 5/8" | 3" x 3" | 2" | 1200 lbs. | - | 7 1/2" | - | - | €54.47 | |
 |
P21S-PH050R-14 | 2 5/8" x 3 5/8" | 3" x 3" | 2" | 1000 lbs. | No Brake Included | 6 1/2" | 4" x 4 1/2" | B | €46.68 |
