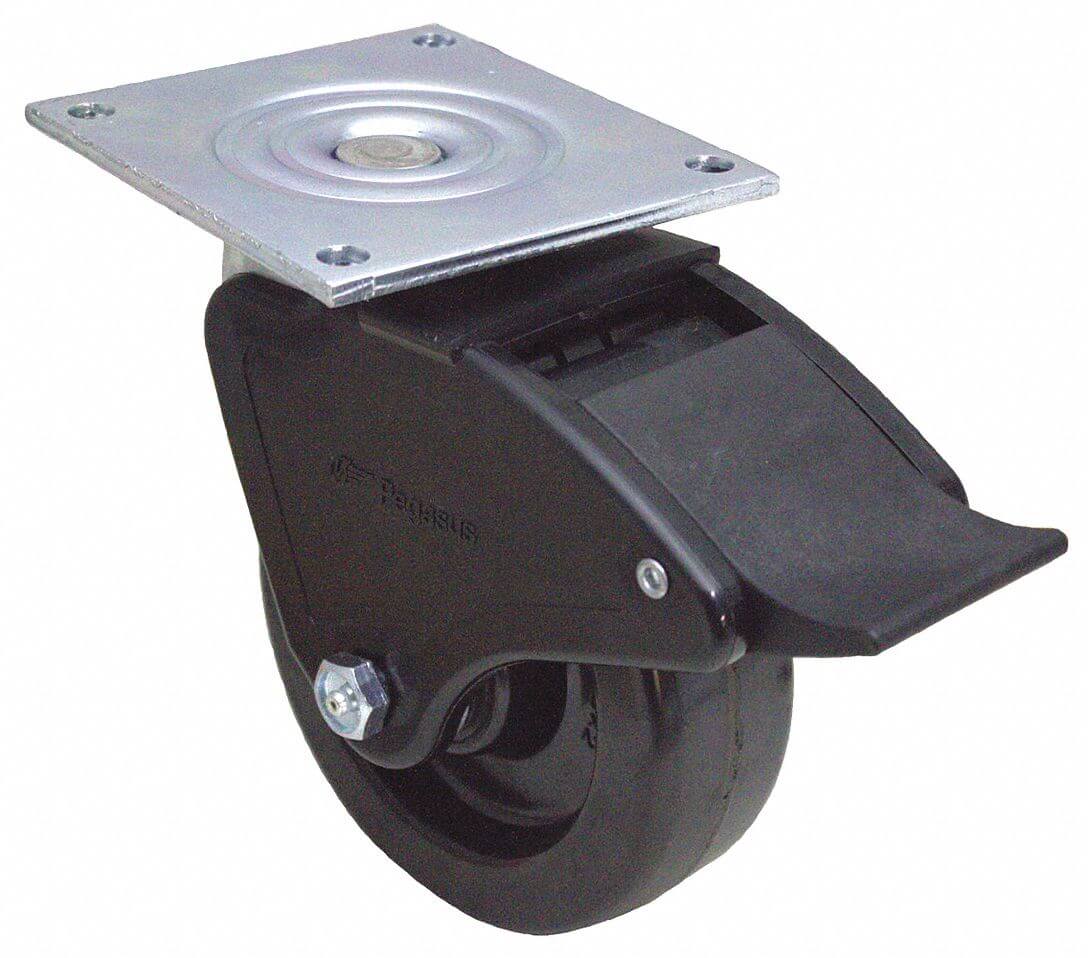

GRAINGER P21S-PH060R-15-TBF Standard Plate Caster, Swivel, Phenolic, 1200 Lbs. Load Rating, 6 Inch Wheel Dia.
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€404.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Bearing Material | Steel |
| Bearing Type | Ball |
| Brake Location | Face |
| Brake Type | Total Lock Brake |
| Caster Brake Type | Total Lock Brake |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Construction | Stamped |
| Core Color | Black |
| Core Material | Phenolic |
| Core Type | Solid |
| Esd Conductive | No |
| Features | Low Rolling Resistance |
| For Axle Dia. | 1/2" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Stamped |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hardness | Rockwell 102E |
| Hole Pattern | D |
| Hub Length | 2 3/16" |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Load Rating | 1200 lbs. |
| Lock Type | Total Lock |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/2" |
| Mounting Plate | 5" x 5.5" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 5" x 5 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 5" X 5 1/2" ( D ) |
| Mounting Plate Thickness | 1/4" |
| Mounting Type | Plate |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -20°F to +250°F |
| Outside Bolt Hole Spacing | 4 1/8" x 4 1/2" |
| Overall Wheel Width | 2" |
| Plate Thickness | 1/4" |
| Raceway Type | Double Ball |
| Replacement Wheel | 490V95 |
| Seal Type | Open |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingpin |
| Swivel Lead | 1 13/16" |
| Swivel Lock Type | Total Lock |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 6" |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Ball |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Diameter | 6" |
| Wheel Material | Phenolic |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 3.44 |
| Country of Origin | China |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Caster Sub-type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDP-G-23 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €342.82 | |
 |
CDP-G-24 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | Rigid | 1 | €251.32 | |
 |
CDP-G-31 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €253.13 | |
 |
CDP-G-32 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Rigid | 1 | €182.46 | |
 |
S-526-D-BS-SS | 2 5/8" x 3 5/8" | 3" x 3" | - | 2" | - | Roller | Polyurethane | Swivel | 1 | €219.28 | |
 |
CDP-G-33 | 3" x 3" | 2 5/8" x 3 5/8" | 9 1/2" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €257.28 | |
 |
65-GTB-0620-R | 2 5/8" x 3 5/8" | 2 5/8" x 3" | 7 1/2" | 2" | 1500 lbs. | Precision Ball | Elastomer | Rigid | 1 | €116.54 |
