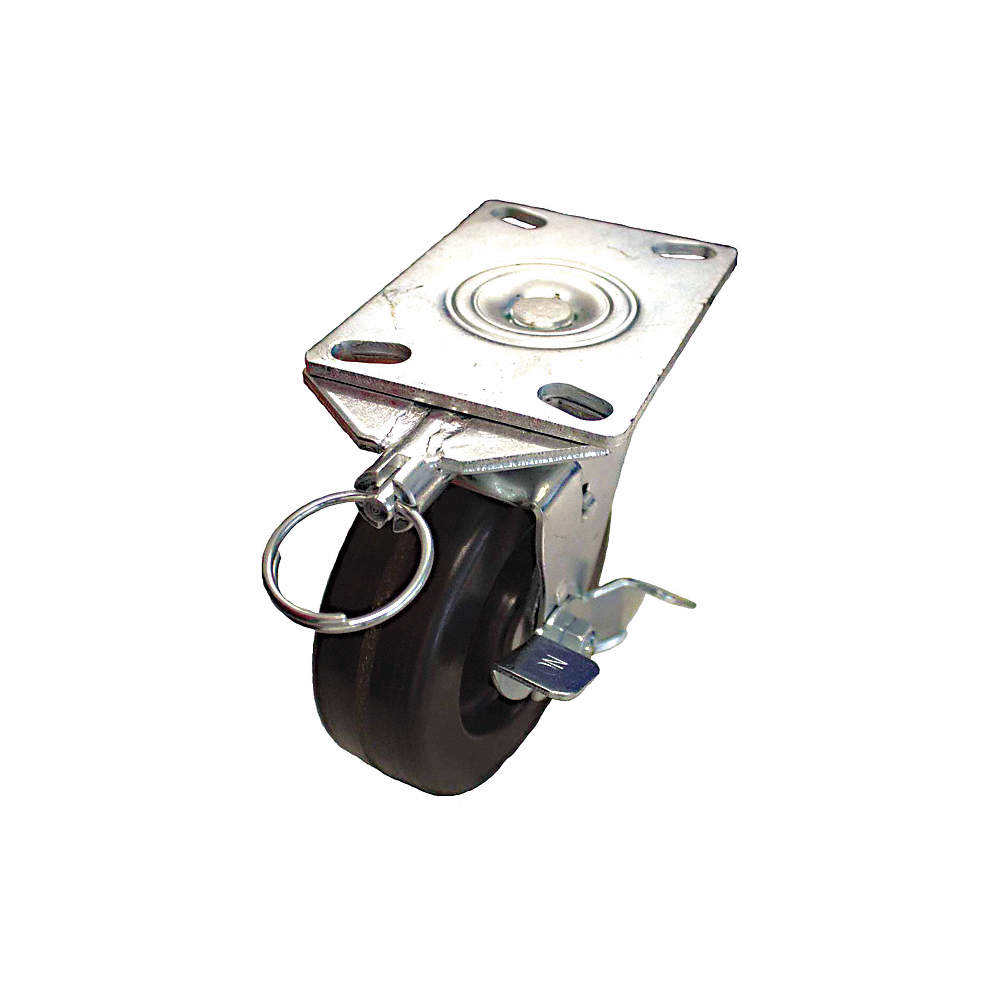

GRAINGER P21S-PH040R-16-WB-DL Swivel Plate Caster, 4 Inch, Light-Medium Duty, 800 Lbs. Load Rating
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€160.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Bearing Type | Double Ball |
| Brake Location | Side |
| Brake Type | Side Strap |
| Caster Brake Included | Yes |
| Caster Brake Type | Directional Lock, Side Brake |
| Caster Features | Corrosion-Resistant |
| Caster Frame Material | Steel |
| Caster Material | Phenolic |
| Caster Product Group | Swivel Caster With Directional Lock And Brake |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Phenolic |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Phenolic |
| Durometer | 90 Shore D |
| Duty Rating | Medium Duty |
| Extended Lead | No |
| Features | Push/Pull Force Reduction |
| For Axle Diameter | 1/2" |
| For Surface Type | Grease, Metal Scrap, Oil, Rubber, Steel, Wood |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Inside Slot Spacing - Length | 4.938" |
| Inside Slot Spacing - Width | 2.438" |
| Load Capacity | 800 lbs. |
| Load Rating | 800 lbs. |
| Max. Temp. | 250°F |
| Min. Temp. Rating | -65°F |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 5 5/8" |
| Mounting Hole Type | Slot |
| Mounting Plate Length | 6 1/4" |
| Mounting Plate Shape | Rectangle |
| Mounting Plate Slot Angle | Angled Inward |
| Mounting Plate Thickness | 7/32" |
| Mounting Plate Width | 4 1/2" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Outside Slot Spacing - Length | 5 1/4" |
| Outside Slot Spacing - Width | 3.375" |
| Overall Height | 5 5/8" |
| Overall Wheel Width | 2" |
| Plate Size | 4 1/2" x 6 1/4" |
| Raceway Type | Double Ball |
| Standards | Ansi Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | 4-Position Directional Lock |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 3 5/8" |
| Tread Material | Phenolic |
| Tread Shape | Standard |
| Unit Of Measurement | Imperial |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Diameter | 4" |
| Wheel Hardness | Firm, Extra Hard |
| Wheel Hardness Rating | 102 HRE |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
Shipping Info:
| Ship weight (kg) | 2.45 |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Caster Sub-type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDP-G-23 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €342.82 | |
 |
CDP-G-24 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | Rigid | 1 | €251.32 | |
 |
CDP-G-31 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €253.13 | |
 |
CDP-G-32 | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Rigid | 1 | €182.46 | |
 |
S-526-D-BS-SS | 2 5/8" x 3 5/8" | 3" x 3" | - | 2" | - | Roller | Polyurethane | Swivel | 1 | €219.28 | |
 |
CDP-G-33 | 3" x 3" | 2 5/8" x 3 5/8" | 9 1/2" | 2" | 1200 lbs. | Precision Ball | Polyurethane | Swivel | 1 | €257.28 | |
 |
65-GTB-0620-R | 2 5/8" x 3 5/8" | 2 5/8" x 3" | 7 1/2" | 2" | 1500 lbs. | Precision Ball | Elastomer | Rigid | 1 | €116.54 |
