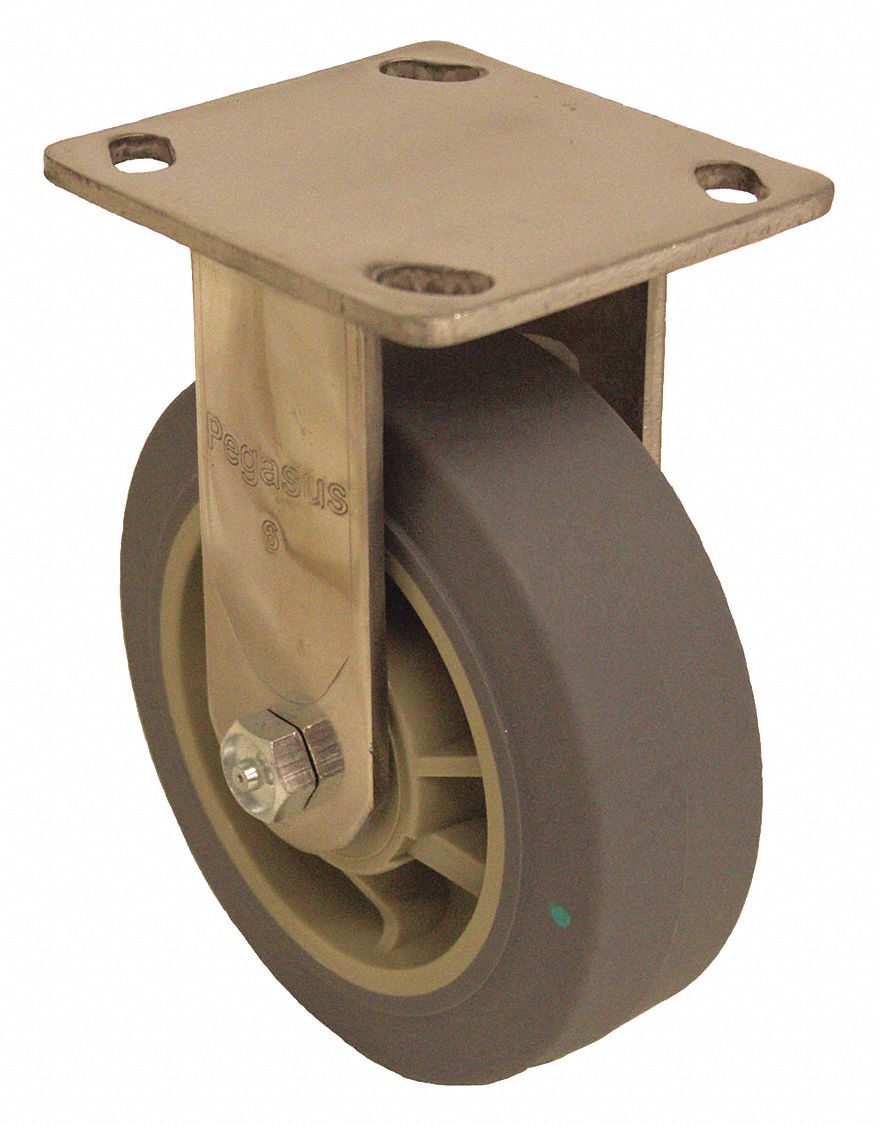

GRAINGER P21RX-RP050D-14-AM Plate Caster, Rigid, Thermoplastic Rubber, 350 Lbs. Load Rating, 5 Inch Wheel Dia.
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€130.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Engine Dollies, Food Service Racks And Cases, Hospital Equipment, Institutional Equipment, Laundry Trucks, Pharmaceuticals, Stock Carts |
| Bearing Type | Delrin |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Stainless Steel |
| Caster Sub-type | Rigid |
| Core Color | Gray |
| Core Material | Plastic |
| Features | Corrosion Resistance, Floor Protective, Noise Reduction |
| Frame Finish | Polished |
| Frame Material | Stainless Steel |
| Hardness | Shore A 90 |
| Hole Pattern | B |
| Includes | Complete Caster With Microbial Additive |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 350 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate | 4" x 4.5" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -15°F to +160°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Standards | Icwm |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | None Rigid Caster |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Diameter | 5" |
| Wheel Material | Thermoplastic Rubber |
| Wheel Width | 2" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 90 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Thermoplastic Rubber |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Country of Origin | China |
Product Details:
- Corrosion Resistant Caster
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Caster Sub-type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
26-USB-2313-S6-TG-FG-T2Z | 2 3/8" x 3 1/8" | 2 3/8" x 3 1/8" | 3 25/32" | 1 5/16" | 500 lbs. | Precision Ball | Nylon | Swivel | 1 | €114.21 | |
 |
2-75-GTB-0620-S-SL | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 8" | 2" | 3000 lbs. | Precision Ball | Elastomer | Swivel | 1 | €609.63 | |
 |
400K28 | 1 3/4" x 3" | - | 6 1/8" | 1 1/2" | 400 lbs. | Precision Ball | Thermoplastic Rubber | Swivel | 1 | €71.43 | |
 |
400K43 | 2 5/8" x 3 5/8" | 3" x 3" | 6 1/2" | 2" | 750 lbs. | Roller | Polyurethane | Swivel | 1 | €38.49 | |
 |
400K47 | 2 5/8" x 3 5/8" | 3" x 3" | 7 1/2" | 2" | 800 lbs. | Roller | Polyurethane | Swivel | 1 | €51.64 | |
 |
400K48 | 2 5/8" x 3 5/8" | 3" x 3" | - | 2" | 800 lbs. | Roller | Polyurethane | - | 1 | €37.41 | |
 |
400K58 | 1 3/4" x 3 1/16" | 1 3/4" x 2 13/16" | 5 3/16" | 1 1/4" | 165 lbs. | Plain | Rubber | Rigid | 1 | €19.28 |
