GRAINGER P21-PH050R-14-SET Standard Plate Caster, Rigid, Swivel, Phenolic, 1000 lbs, 5 Inch Wheel Dia
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€142.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid, Swivel |
| Core Color | Black |
| Esd Conductive | No |
| Features | Low Rolling Resistance |
| For Axle Dia. | 1/2" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Stamped |
| Frame Finish | Zinc Plated |
| Hub Length | 2 3/16" |
| Includes | Mounting Hardware |
| Includes Mounting Fasteners | Yes |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1000 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Mounting Plate Thickness | 1/4" |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temperature Range | -20°F to +250°F |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Wheel Width | 2" |
| Replacement Wheel | 5VF72 |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingpin |
| Swivel Lead | 1 9/16" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 5/16" |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Dia. | 5" |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 9.48 |
| Country of Origin | CN |
Product Variants
| Product | Model | Caster Brake Type | Wheel Bearing Type | Load Rating | Mounting Height | Wheel Dia. | Swivel Radius | Mounting Plate Thickness | Swivel Lead | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

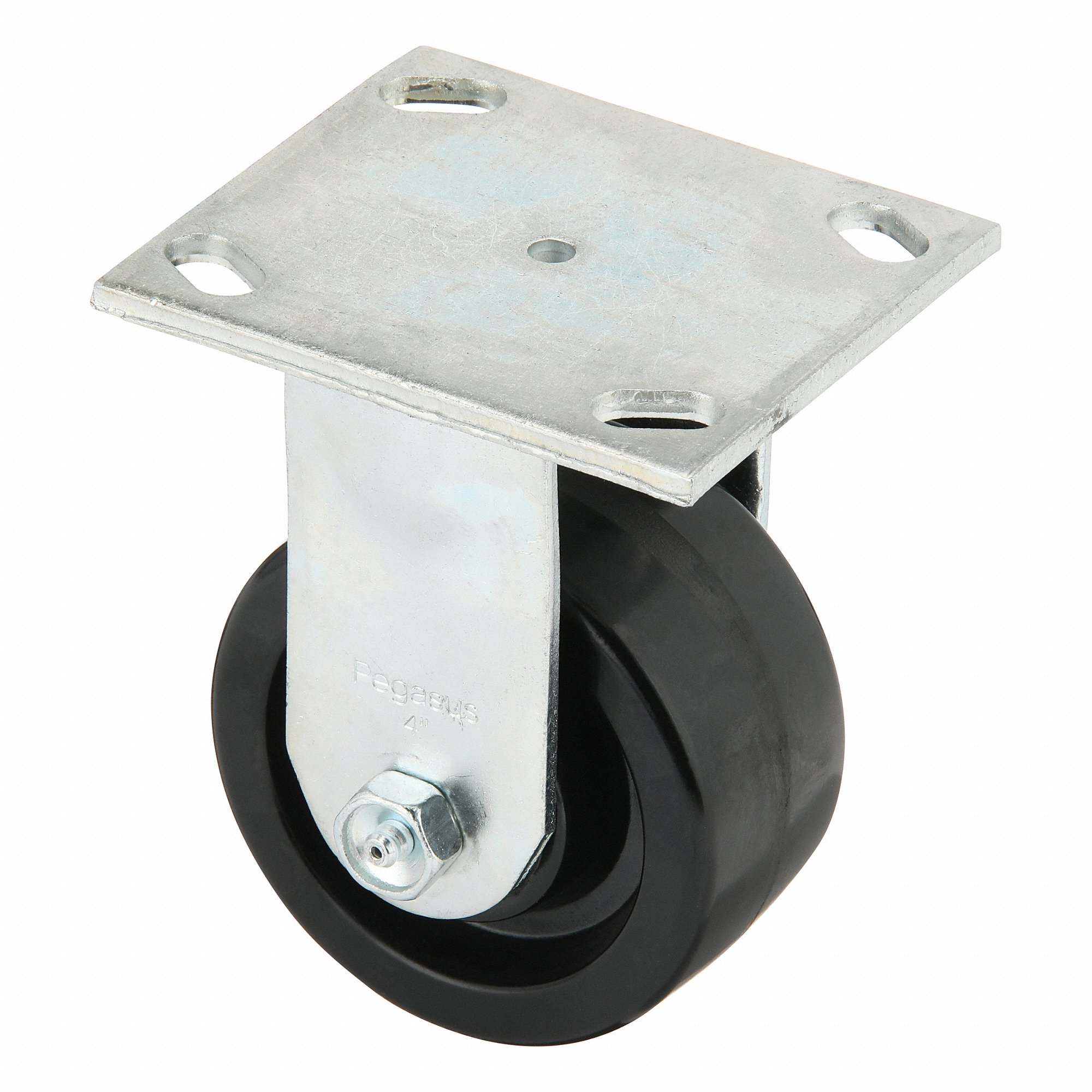

P21-PH040R-14-SET | No Brake | Roller | 800 lbs. | 5 5/8" | - | 3 5/8" | 7/32" | 1 3/8" | €144.45 | |
 |

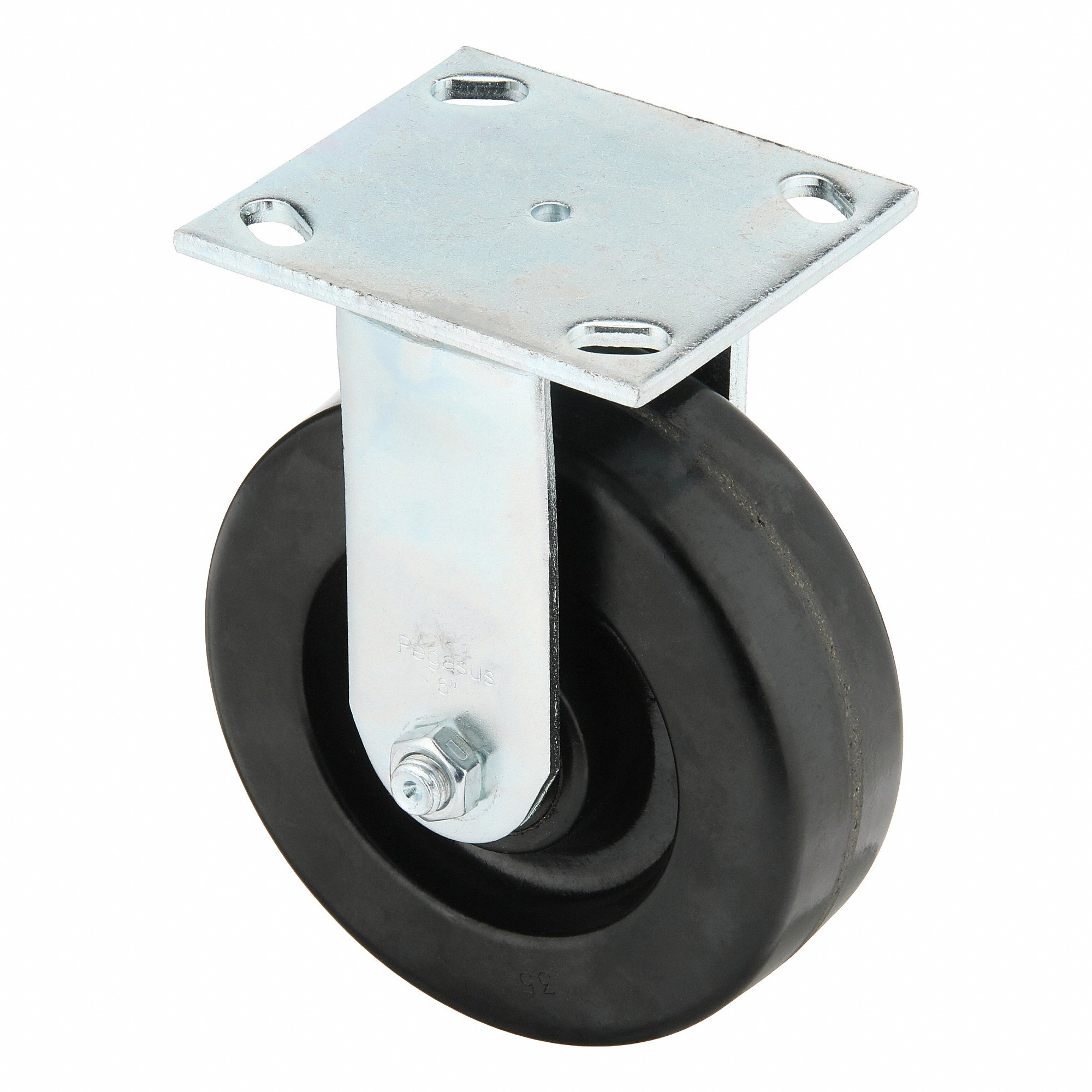

P21-PH060R-14-SET | No Brake Included | Ball | 1200 lbs. | 7 1/2" | 6" | 5 1/4" | 1/4" | 1 13/16" | €164.29 |
